Little Giant WS102H 1 HP 230v Manual High Head Sewage Pump (20' Cord)
SKU: LG-620258
Little Giant WS102H 1 HP 230v Manual High Head Sewage Pump (20' Cord)

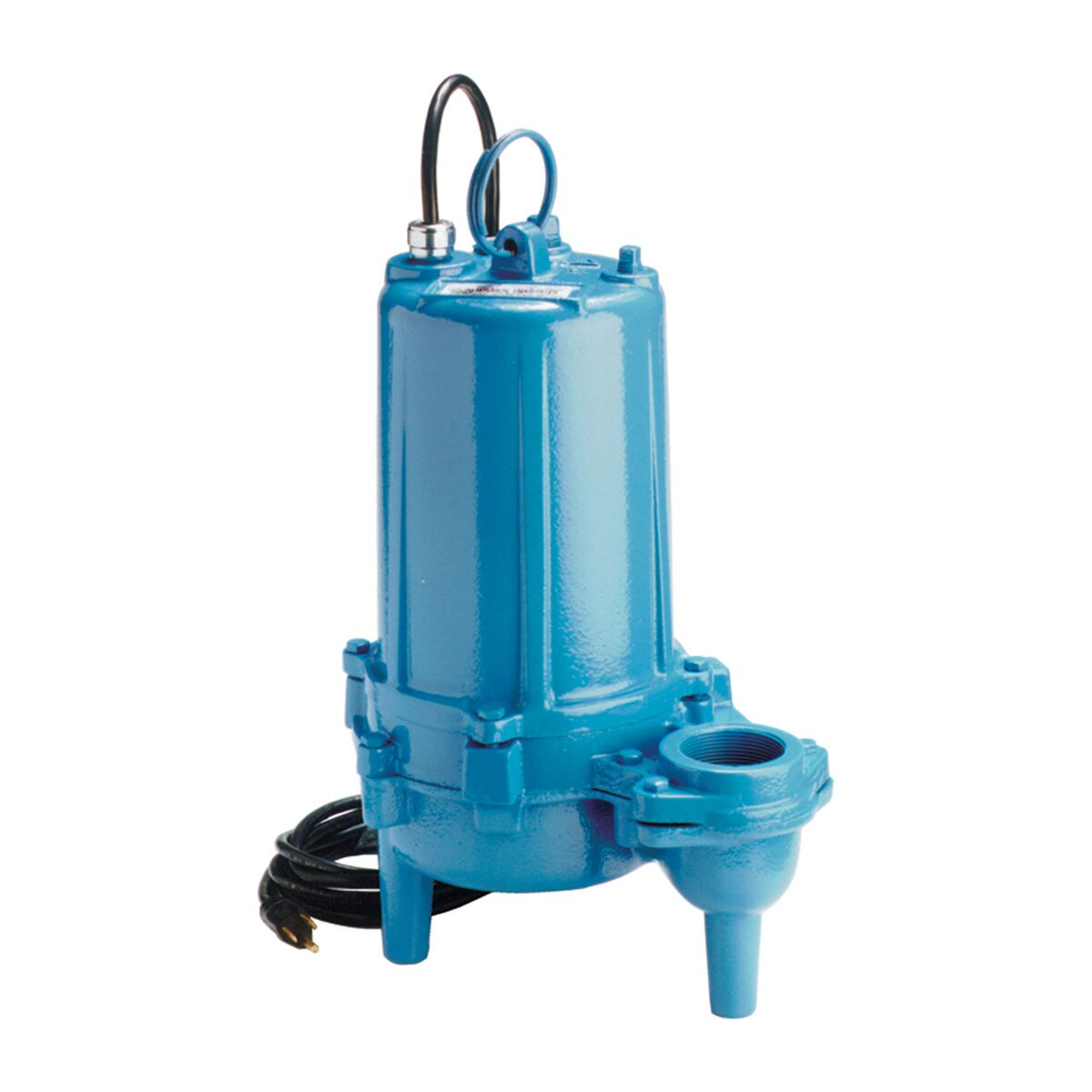

The WS Series submersible effluent pump from Little Giant is specifically engineered to handle the tough demanding tasks for wastewater and effluent waste transfer with high efficiency and long term dependability.
Ideal for handling raw sewage as well as commercial dewatering sump applications with up to 2" solids.
Features:
- 1/2 hp and 1 hp oil filled chamber with double ball bearing. Designed for hi-torque and is thermally protected with automatic reset (single-phase only).
- Motor shaft is stainless steel.
- Motor and pump housing is cast iron.
- 2" NPT discharge.
- Mechanical carbon/ceramic seal.
- Cast iron solids handling non-clog impeller.
- Stainless steel fasteners throughout, for serviceability.
- Mechanical float switch for automatic on-off operation; piggyback style.
- Power cord sealed at motor housing.
| Flow in US GPM @ Total Head in Feet | Shut off Head | Full Load Amps | ||||||
|---|---|---|---|---|---|---|---|---|
| 15' | 20' | 25' | 30' | 35' | 115v | 230v | ||
| LG/620254 | 97 | 68 | 32 | - | - | 29' | 15 | |
| LG/620256 | 97 | 68 | 32 | - | - | 29' | 7.5 | |
| LG/620258 | 170 | 148 | 124 | 100 | 74 | 48' | 13.6 | |
