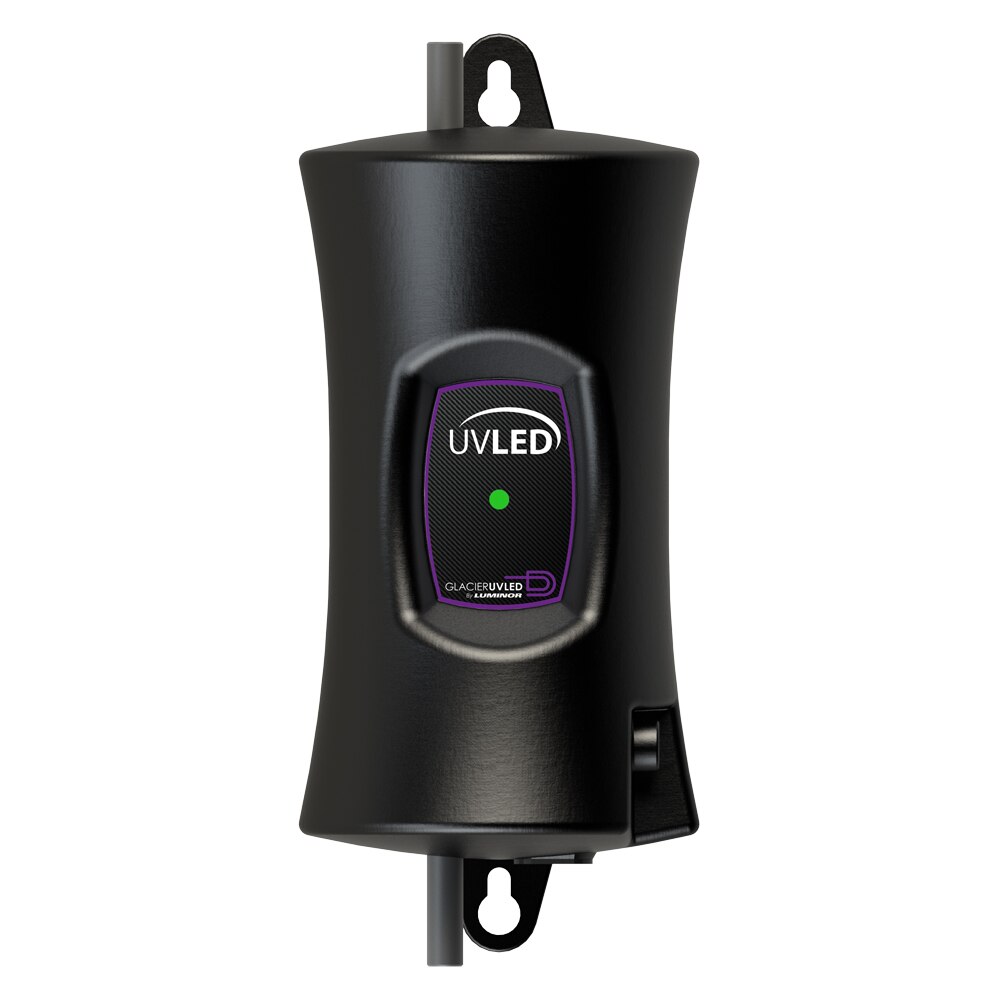

Luminor Glacier UV LED System w/ Multi-State Status LED
SKU: LTW-GUV4S
Luminor Glacier UV LED System w/ Multi-State Status LED
Fully integrated LED based UV disinfection system with multi-state status LED.
This fully integrated LED based UV disinfection system is available with a simple multi-state status indicator. This system is packaged with a 12 volt power supply and there is no need for a lamp change, as in traditional UV systems. The UVC LED’s only turn “on” when needed based on an integral flow switch, and last for 5,000 hours of “on” mode operation.
The system incorporates integrated, real-time I/O monitoring for:
Temperature
- Prevents overheating of LED’s.
- Alarm alerts of over temperature conditions
LED Status
- Always know when UVC LED is on or off.
- Alarm is signaled in event that the UVC LED fails.
UV Output - coming soon
- Allows user to know UV output the system is delivering.
- Alarms for low UV “dose."
| Model | GUV-4S | GUV-5S |
|---|---|---|
| Flow Rate (@ 10 mJ/cm² @ 95% UVT) | 1.5 gpm | 1.5 gpm |
| 5.6 lpm | 5.6 lpm | |
| Flow Rate (@ 16 mJ/cm² @ 95% UVT) | 1.3 gpm | 1.3 gpm |
| 4.9 lpm | 4.9 lpm | |
| Flow Rate (@ 30 mJ/cm² @ 95% UVT) | 0.6 gpm | 0.6 gpm |
| 2.4 lpm | 2.4 lpm | |
| Flow Rate (@ 40 mJ/cm² @ 95% UVT) | 0.4 gpm | 0.4 gpm |
| 1.3 lpm | 1.3 lpm | |
| UVT (%) | Recommended above 90% | |
| Headloss at Max Flow | 166 mBar (2.4 psi) | |
| Max Pressure | 6.9 bar (100 psi) | |
| Max Ambient Temperature | 50°C (122°F) | |
| Operating Water Temperature | 0-45° C (32-113° F) | |
| Water Connections | 3/8" OD Tube (fits John Guest® style quick connect fittings) | |
| Input Voltage | 12VDC | |
| Input Power | 15W | 16W |
| UV Intensity Monitoring | NA | Coming soon |
| Electrical Connection | Standard 12VDC barrel connector, 2.1 x 5.5 mm | |
| LED Status Monitoring | YES | |
| LED Life Monitoring | YES | |
| LED Life | 5,000 hours | |
| 4-20 mA Output | NA | YES (optional MOD-420 sold separately) |
| Solenoid Output | NA | YES (optional MOD-SOL sold separately) |
| Dry Contacts (solenoid ready) | NA | YES (optional MOD-RAM sold separately) |
| IoT | NA | YES (optional MOD-APP sold separately) |
| Display | Dual colour LED | Full customizable colour screen |
| Overall Dimensions (with mounting brackets) | 241mm x 104mm x 107mm (9.5" x 4.1" x 4.2") | |
| Shipping Weight | 400g (14 oz) | |
