Mazzei 1 1/2" MIPT x 1/2" Tube Barb Injector (235 GPH)

SKU: MAZ-1584APP
(0) No Reviews yet
$236.45

In Stock

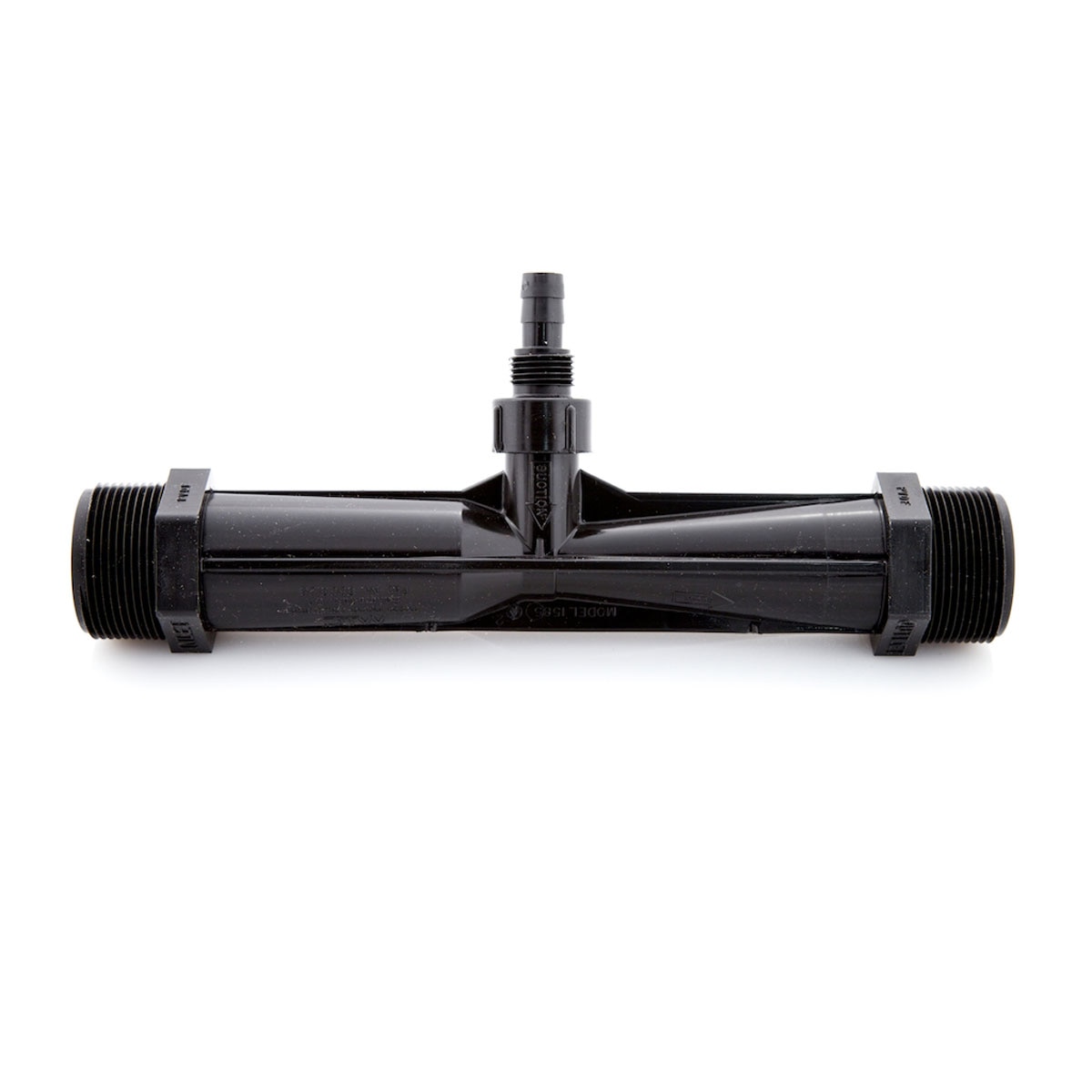

Mazzei 1 1/2" MIPT x 1/2" Tube Barb Injector (235 GPH)

Mazzei Injectors are high-efficiency, Venturi-type, differential pressure injectors with internal mixing vanes. When a sufficient pressure difference exists between the inlet and outlet sides of the injector, a vacuum is created inside the injector body, which initiates suction of a liquid or gas through the suction port.

How a Mazzei® Injector Works

When pressurized water enters the injector inlet, it is constricted toward the injection chamber and changes into a high-velocity jet stream. The increase in velocity through the injection chamber results in a decrease in absolute pressure, creating a vacuum, thereby enabling an additive material to be drawn through the suction port and entrained into the water stream. As the jet stream is diffused toward the injector outlet, its velocity is reduced and it is reconverted into lower pressure energy.

Performance

Mazzei Injectors operate over a wide range of pressures and require only a minimal pressure differential between the inlet and outlet sides to initiate a vacuum at the suction port.

Features:
  • Proven performance with years of expected service
  • No electrical connections needed
  • Can run dry with no problems
  • Considerable cost savings versus other injection methods
  • Safe to use as the chemicals are injected under vacuum, not pressure
  • Injectors are available in natural PVDF or ECTFE (NSF-51 and FDA 177.2510) approved thermoplastics or stainless steel
