Micro Patio Watering Kit

SKU: DIG-FM01AS
(0) No Reviews yet
$31.34

In Stock

Micro Patio Watering Kit

The FM01AS Patio Drip Watering Irrigation Kit is a starter kit with PC drip emitters to water up to ten hanging baskets, pots or containers in or around a patio or pool area. The kit components can be used to start the installation from a faucet or a garden hose. The kit can be expanded to cover up to 15 small to medium size hanging baskets using additional micro tubing and PC drip emitters with the same flow rate. The kit includes a 3/4" backflow preventer, 3/4" FHT x 1/4" compression adapter, 60' of 1/4" vinyl micro tubing, 10 PC drip emitters, 1/4" tees and all necessary parts to complete the installation.

Features
  • Use to water hanging baskets, pots or containers in or around a patio or a pool area
  • Contains ten 1-GPH PC button drip emitters for up to ten pots or baskets
  • Applies water at a low application rate leading to less surface evaporation from leaves and soil
  • Offers flexibility in watering frequency and application rate, minimizing surface compacting and runoff
  • No special tools or glue are needed
  • Saves money by significantly lowering the cost of system
  • DIG's drip irrigation products may be exempt from residential and commercial watering restrictions (check local codes)
  • Ease of watering with lower water use and less water waste
Product specifications
  • Maximum incoming operating pressure: 80 PSI
  • Operating pressure: 25 PSI (25 PSI pressure regulator not included)
  • Maximum recommended flow rate @ 25 PSI: 15 GPH (.25 GPM)
  • Drip micro tubing (Vinyl) size: 60' with .156 ID x .245 OD
  • PC drip emitter flow rates: 1 gallon per hour (GPH)
  • Total flow rate for this kit: 10 GPH (.166 GPM)

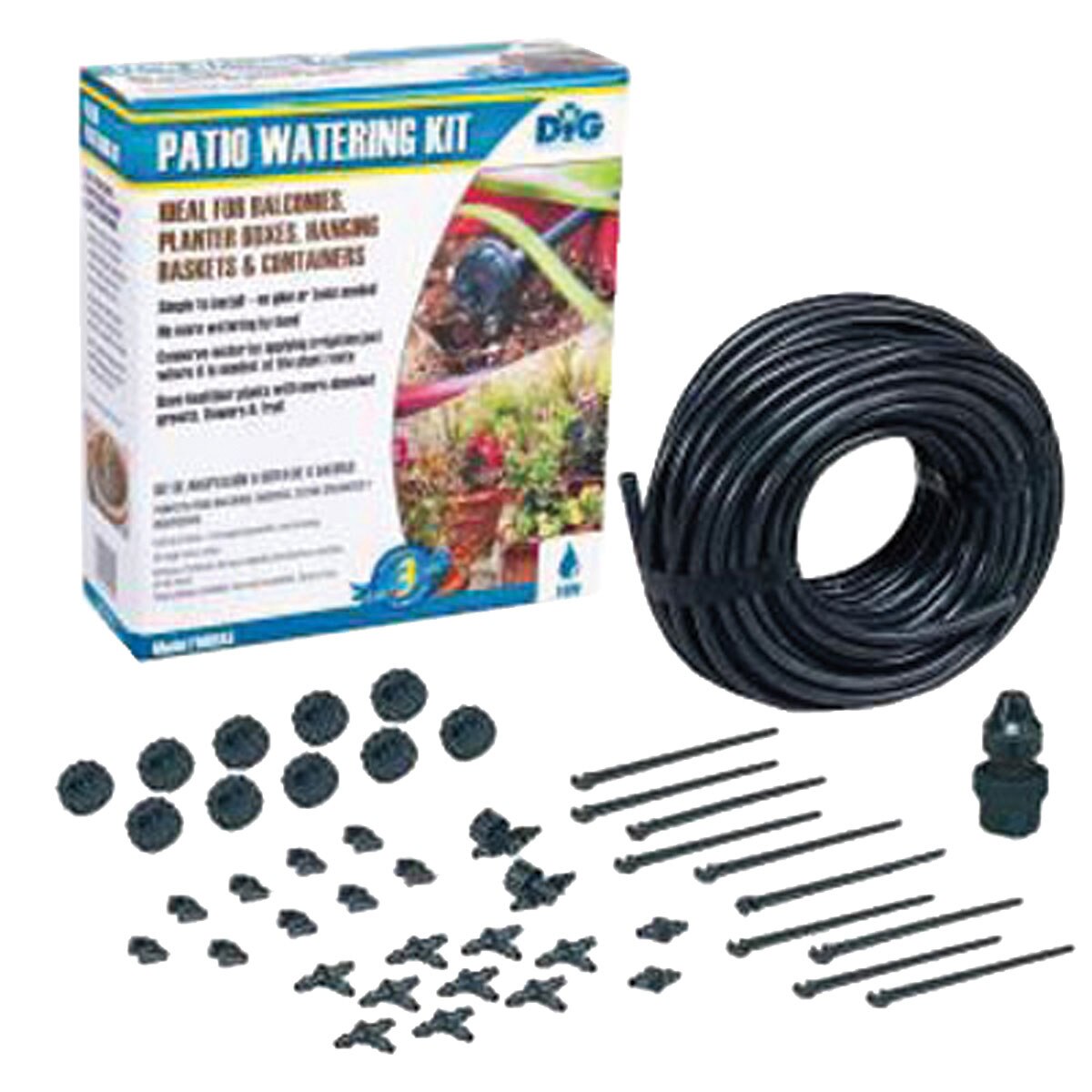

Box Contents

  • 1 - 3/4" backflow preventer
  • 1 - 3/4" adapter with screen filter
  • 10 - 1 GPH PC drippers
  • 9 - 1/4" tees
  • 2 - 1/4" barb connectors
  • 10 - 1/4" mounting clips
  • 10 - tubing holder stakes
  • 1 - 60' 1/4" micro tubing
  • 2 - 1/4" ball valves
  • 1 - Installation instructions
