Oase AquaMax Eco Expert 6800 GPH

SKU: OAS-57875

(0) No Reviews yet

Oase AquaMax Eco Expert 6800 GPH

Powerful, energy-efficient brushless DC filtration pump for large installations.

The AquaMax Eco Expert is a powerful, energy-efficient brushless DC filtration pump for demanding filter systems or for large water feature installations.

Quiet, energy efficient motor maintains the peaceful environment of any outdoor sanctuary or indoor water feature.

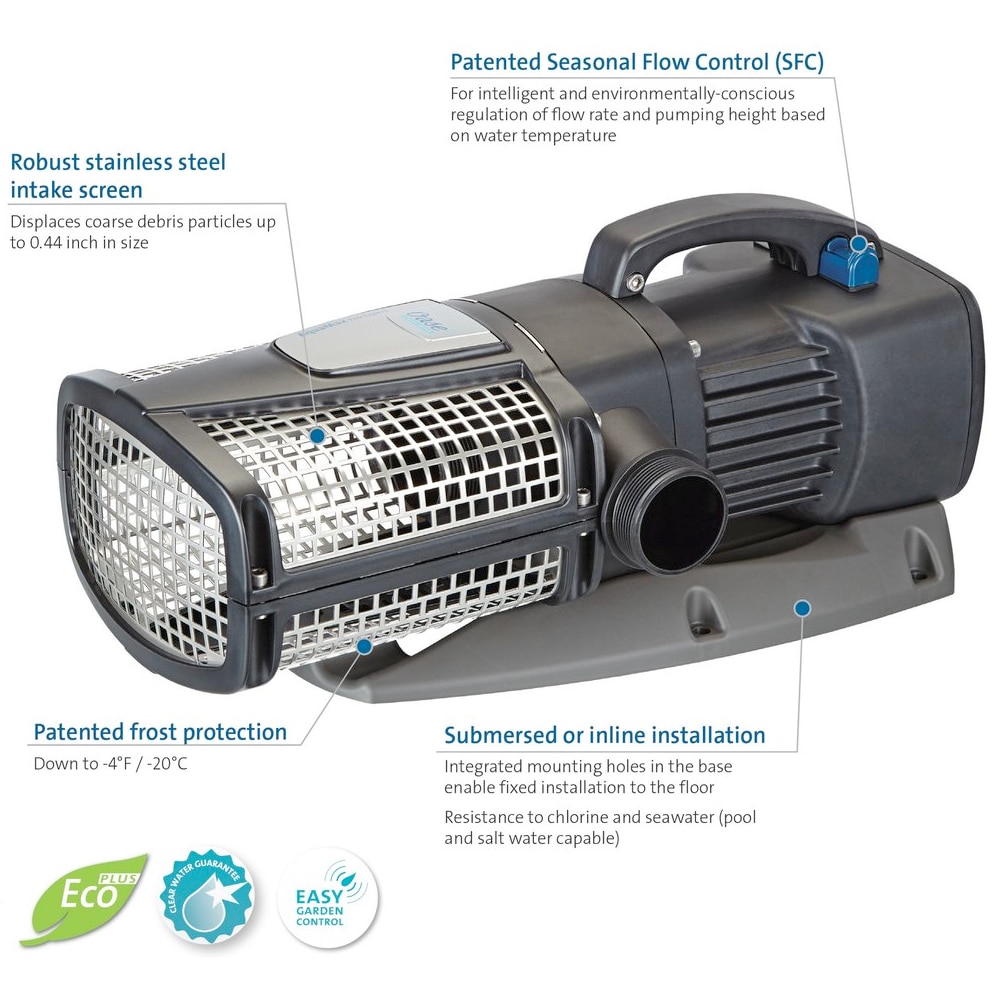

Robust stainless steel intake screen displaces coarse debris particles up to 11 mm in size.

Patented Seasonal Flow Control (SFC) allows for intelligent and environmentally-conscious regulation of flow rate and pumping height based on water temperature; 50% energy savings is possible.

Environmental Function Control feature (EFC) shuts off the pump in the event of a dry run or blockage to stop the pump from damaging itself.

Safely endures any seasonal conditions with patented frost protection down to -4 degrees Fahrenheit (-20 degrees Celsius).

The AquaMax Eco Expert pump series are 230V and have a 33 ft. power cord.

AquaMax Eco Expert has capability to be set up submerged or inline.

Adjustable flow control (when connected to EGC controller) fine-tunes the flow rate and pumping height.

Resistance to seawater and pool water (salt water and chlorine capable)

An adapter set for 1.5 in. and 2 in. Tubing is included in the scope of delivery of the AquaMax Eco Expert filter pumps.

Fully controllable through the OASE Easy Garden Control (EGC) connection and using an app on your smartphone or tablet (iOS or Android).

EGC functions include: Adjustment of SFC, Adjustment of flow control, Feedback concerning operation status, power consumption, and overall performance data.

When properly sized, paired, and registered online, this product qualifies for the Clear Water Guarantee.

Included 3 year warranty + 2 with online registration

Back

Recommended water quality	pH value	Hardness	Free chlorine	Chloride content	Salt content	Overall dry residue	Temperature
Freshwater	6.8 - 8.5	142 ppm - 267 ppm	0.3 ppm	250 ppm	0.4%	50 ppm	39 - 95°F
Pool water	7.2 - 8.3	142 ppm - 267 ppm	0.6 ppm	250 ppm	0.4%	50 ppm	39 - 86°F
Saltwater	7.2 - 8.5	256 ppm - 534 ppm	0.3 ppm	22000 ppm	4.0%	50 ppm	39 - 82°F

Back

Specs	AquaMax Eco Expert 6800	AquaMax Eco Expert 11500
Dimensions	19 x 8.5 x 8 in.	21 x 9.8 x 8.7 in.
Rated voltage	220-240V / 50-60 Hz
Power Consumption	440 Watts	700 Watts
Power Cable Length	33 ft.
Net weight	26 lbs.	36 lbs.
Max. Flow Rate	6800 gph	11500 gph
Outlet size	2 in.
Inlet size	2 in.	2.5 in.
Connection for hoses	1.5 and 2 in.	2 in.
Filter intake surface	165 in.²
Coarse debris displacement max.	0.44 in.
Connection EGC	Yes
Electronically adjustable	Yes
Usage Type	Submerged and inline
Warranty	3 years + 2 with online registration

See More See Less

Back

Oase AquaMax Eco Expert 6800 GPH

Oase AquaMax Eco Expert 6800 GPH

Powerful, energy-efficient brushless DC filtration pump for large installations.
