Oase ProfiClear Premium Compact-M Pump-Fed

SKU: OAS-72374
(0) No Reviews yet

In Stock

Oase ProfiClear Premium Compact-M Pump-Fed


The full automatic compact-powerful alternative for stocked koi ponds.


The new generation compact drum filter of the ProfiClear Premium series is the more cost-effective alternative for bodies of water up to 80 m³. The compact module filter system is ideal for small koi ponds.


Leading koi experts confirm the optimal suitability of the ProfiClear Premium Compact. They were consulted in the development of the series. In the pumped principle the maximum water flow through the filter is 12,500 litres per hour. In the gravitation principle the maximum water flow through the filter is 16,500 litres per hour.


With this fully self-cleaning drum filter unit the moving bed system generates optimal water movement and cleaning. Deep-bed filtration of up to 80 microns and a new Hel-X 13 filter medium with a protected surface that has been enlarged by 14.5% relative to the predecessor product, ensure the high separation capacity.


  • Conveniently control all settings via app, through connection possibilities on the Easy Garden Control System (EGC), upgrading existing systems is possible with the upgrade kit - available separately.
  • The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology

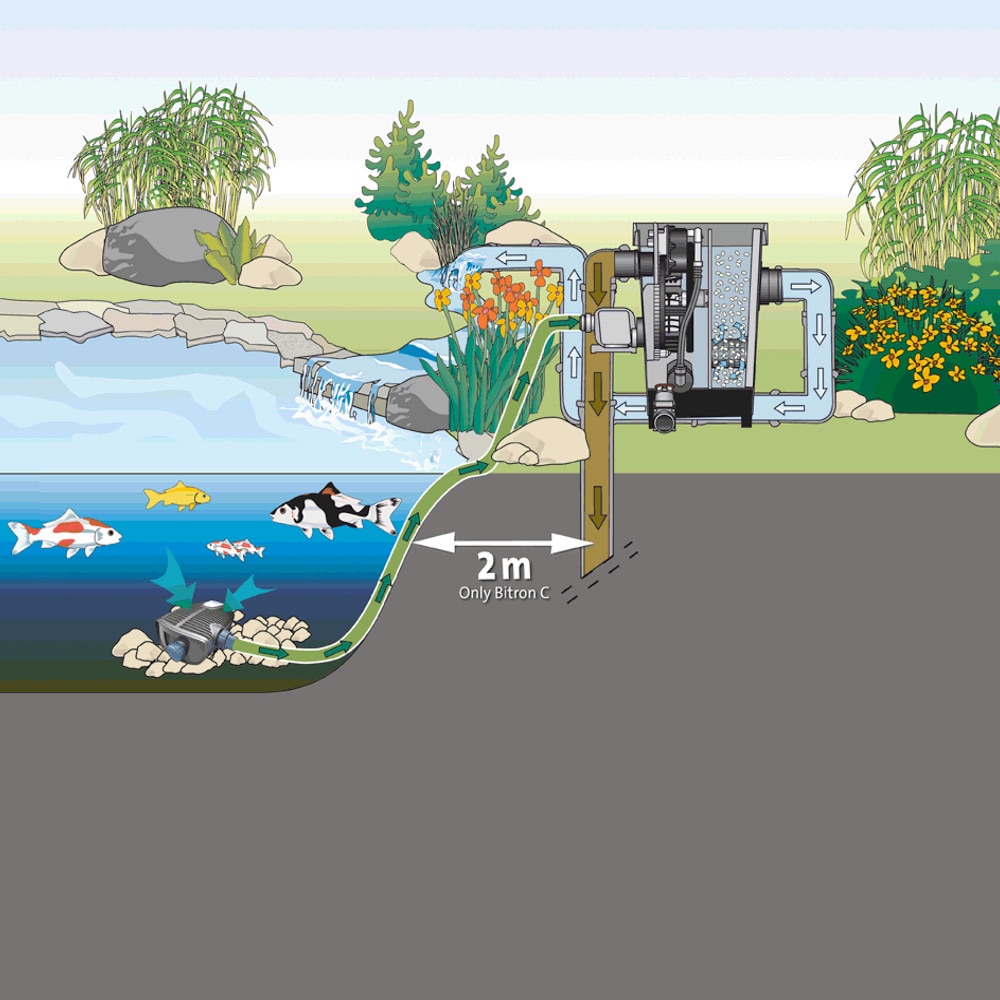

  • Available in the pump-fed principle and in the gravity-fed principle
  • Conveniently control all settings via an app, through via the Easy Garden Control System (EGC)
  • With the Moving Bed System for optimal water movement and water cleaning
  • High separating capacity through deep-bed filtration of up to 60 microns
  • Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants
  • Innovative and reliable product »made in Germany« (except pressure pump)
  • The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required
  • Particularly quiet operation thanks to extensive noise insulation
  • Individually removable sieve elements (no tools required) and free-wheel function
  • Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
  • Minimal install height for full flexibility with gravity-fed systems
  • SpecsProfiClear Premium Compact-M Pump-Fed
    Dimensions34.8 x 27 x 32 in.
    Rated Voltage120V / 60 Hz
    Power consumption5 watts
    Power consumption cleaning870 watts
    Cable length 12V16.4 ft. + 3.3 unit
    Net weight175.3 lbs.
    Coarse debris extraction80 µm
    No. of nozzles / cleaning flow rate2 x 1 gal/min
    Cleaning Pump2 bar
    Biological filter surface411 ft.2
    Biological filter surface protected347 ft.2
    Min. Flow Rate2000 gph
    Max. Flow Rate4000 gph
    Outlet size4 in. (DN 110)
    Inlet size2 in. and UVC connection
    Sludge drain / Discharge size3 in. (DN 75) / 3 and 4 in. (DN 75/110)
    Suitable for ponds up to max.21000 gal
    Suitable for ponds with fish stock10500 gal
    Suitable for ponds with koi5250 gal
    Warranty2 years + 1 year with online registration
