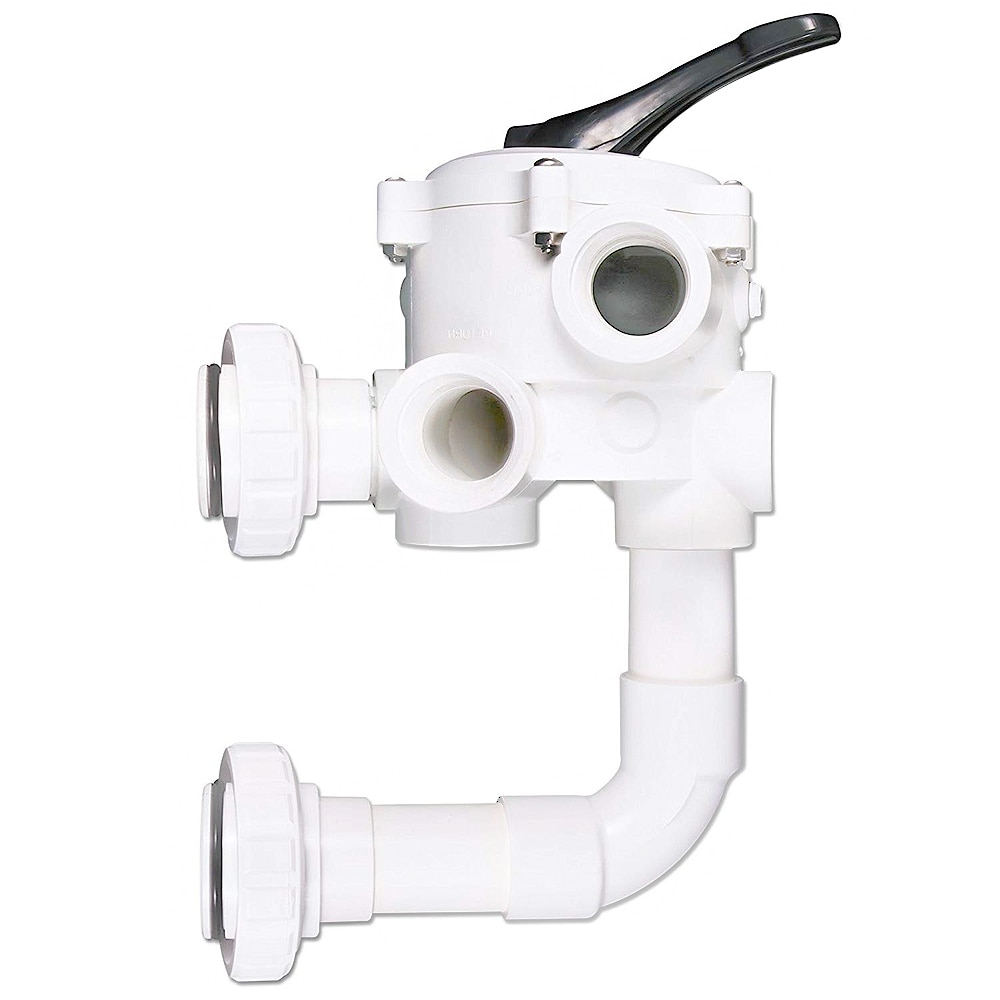

Pentair 1 1/2" Side Mount Multi Port Valve (Triton II)
SKU: PEN-261173
Pentair 1 1/2" Side Mount Dial Valve (Triton II)
Pentair Triton Side Mounted Hi-Flow Multiport valve is designed for maximum performance and working pressures.
This valve features a solid, injection molded PVC housing which permits leak-Free solvent welds to PVC piping, and the six-position, positive-lock operation plus special winterize position provides access to full range of filtration system capabilities.

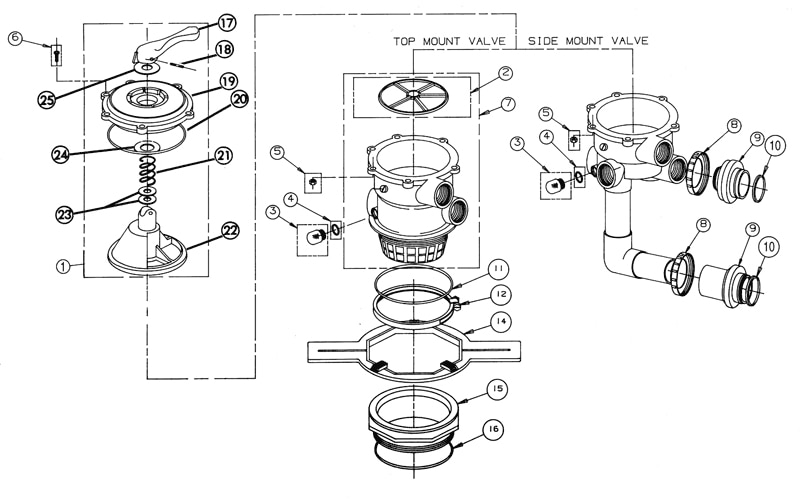

Pentair Triton II 1 1/2" Dial Valve Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| 2 | PF-271104 | Pentair Spider Diverter Gasket |
| 3 | PF-272550 | Pentair Sight Glass w/Vac Protector |
| 11 | OR-352 | O-Ring #352 (Neoprene) |
| 12 | PF-152165 | Pentair Clamp - Plastic |
| 22 | PF-271163 | Pentair Diverter - Dial Valve |
| 24 | PF-271160 | Pentair Washer for Dial Valve Spring |
| 25 | PF-271157 | Pentair Washer for Dial Valve Handle |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
