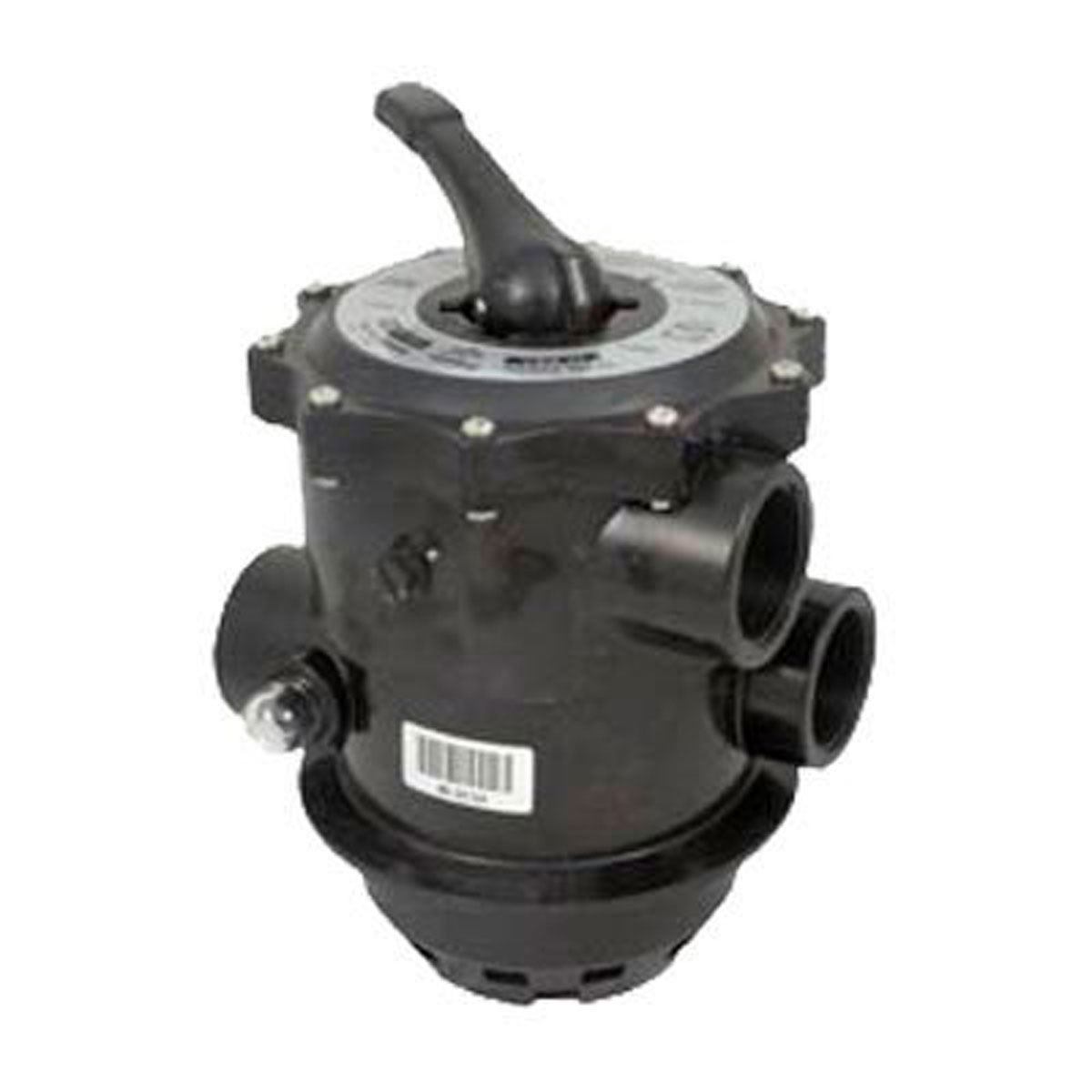

Pentair 2” Top Mount Multi Port (Flanged) (Tagelus)
SKU: PEN-261185
Pentair 2? Top Mount Multi Port (Flanged) (Tagelus)
Pentair Tagelus Valve is designed for maximum sand filter backwash performance and precise water flow.
This valve feature a solid, injection molded PVC housing which permits leak-Free solvent welds to PVC piping, and the six-position, positive-lock operation plus special winterize position provides access to full range of filtration system capabilities.
- 2? Diverter Valve
- 6 Position Diverter
- Top Mount
- Flanged/Clamp Style
- Fits:Pentair TA100D Tagelus
- Pentair Number: 261185

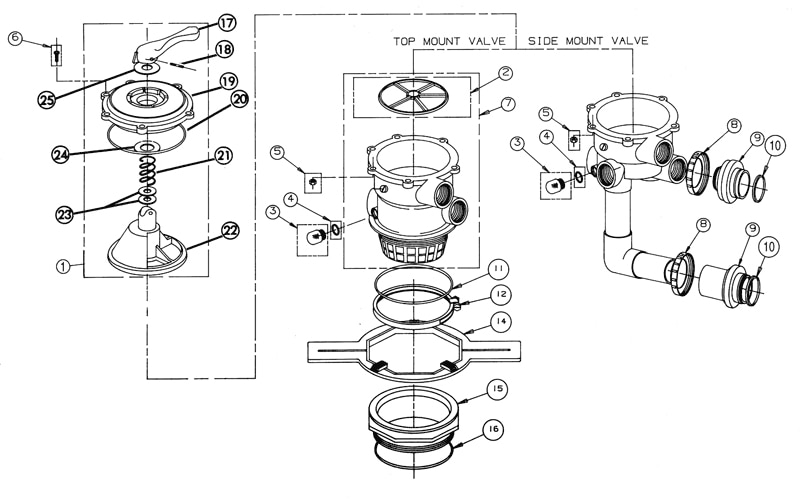

Pentair Tagelus 2" Dial Valve Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| 2 | PF-271148 | Pentair Spider Diverter Gasket |
| 3 | PF-272550 | Pentair Sight Glass w/Vac Protector |
| 11 | PF-275333 | Pentair O-Ring- Valve Adapter |
| 12 | PF-152130 | Pentair Clamp - Metal |
| 20 | PF-271151 | Pentair O-Ring - Valve Top |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
