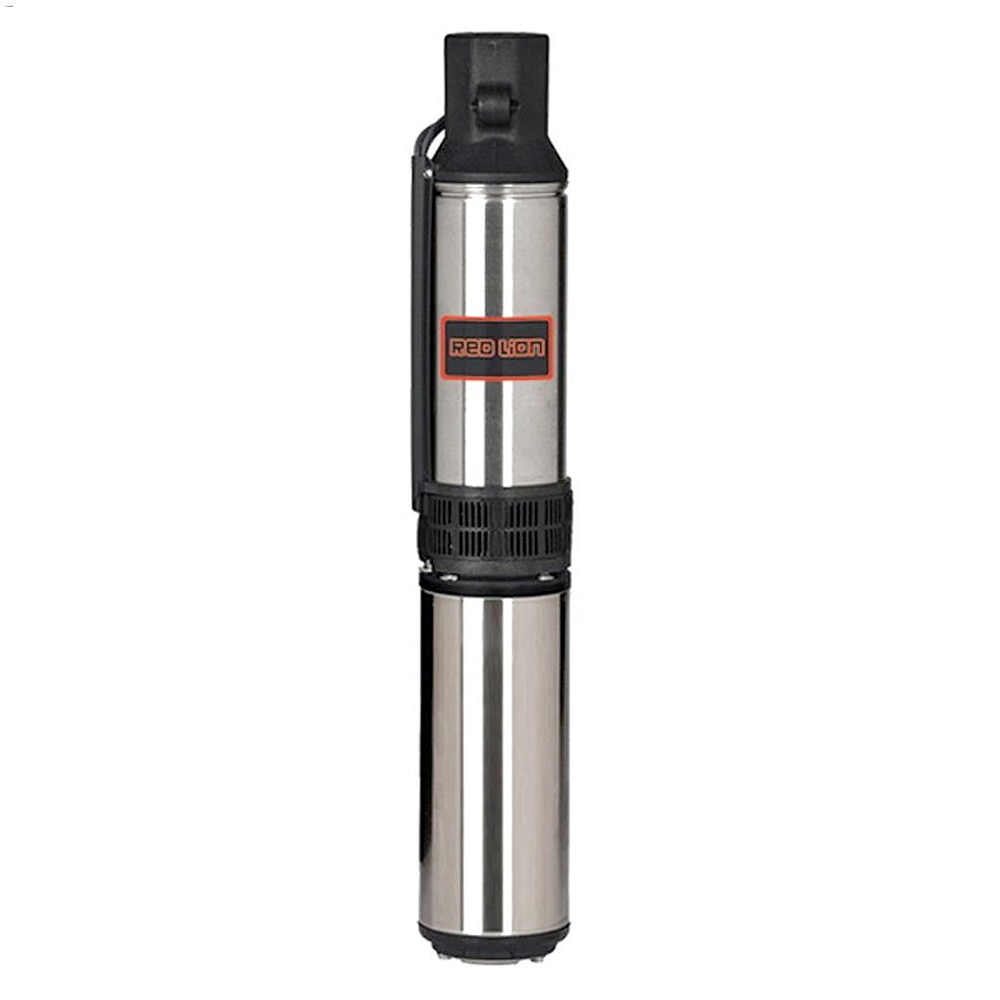

Red Lion 1/2 HP, 12 GPM, 2 Wire, 115 Volt, Deep Well Submersible Sub Pac
SKU: *RL-14942412
Red Lion 1/2 HP, 12 GPM, 2 Wire, 115 Volt, Deep Well Submersible Sub Pac
Ideal for the supply of fresh water to rural homes, farms, and cabins that have 4" and greater diameter drilled wells to depths of 250'. This full kit contains a factory spliced power cable, control center, pressure switch with gauge, pressure relief valve, and tank cross.
Features & Benefits- Powered by industry standard 2-wire motor.
- Thermoplastic discharge and motor bracket.
- Stainless steel pump shell.
- Built-in suction screen and check valve.
| HP | WIRES | AMPS/VOLTS | DEPTH TO WATER | DISCHARGE PRESSURE (PSI) | DISC. | SHUT OFF | MAX FLOW GPM | ||||||||
| 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | |||||||
| GALLONS PER MINUTE | |||||||||||||||
| 1/2 | 2 | 12/115 | 20' | - | 19 | 18 | 16 | 15 | 14 | 12 | 10 | 6 | 1-1/4" FNPT | 231' | 12 |
| 40' | 19 | 18 | 16 | 15 | 14 | 13 | 11 | 7 | 2 | ||||||
| 60' | 18 | 17 | 16 | 14 | 13 | 11 | 7 | 3 | - | ||||||
| 80' | 17 | 16 | 15 | 13 | 11 | 8 | 3 | - | - | ||||||
| 100' | 16 | 15 | 13 | 11 | 8 | 4 | - | - | - | ||||||
| 140' | 14 | 12 | 9 | 8 | - | - | - | - | - | ||||||
| 200' | 7 | 2 | - | - | - | - | - | - | - | ||||||
