Red Lion 2 HP Sprinkler Pump
SKU: RL-97102001

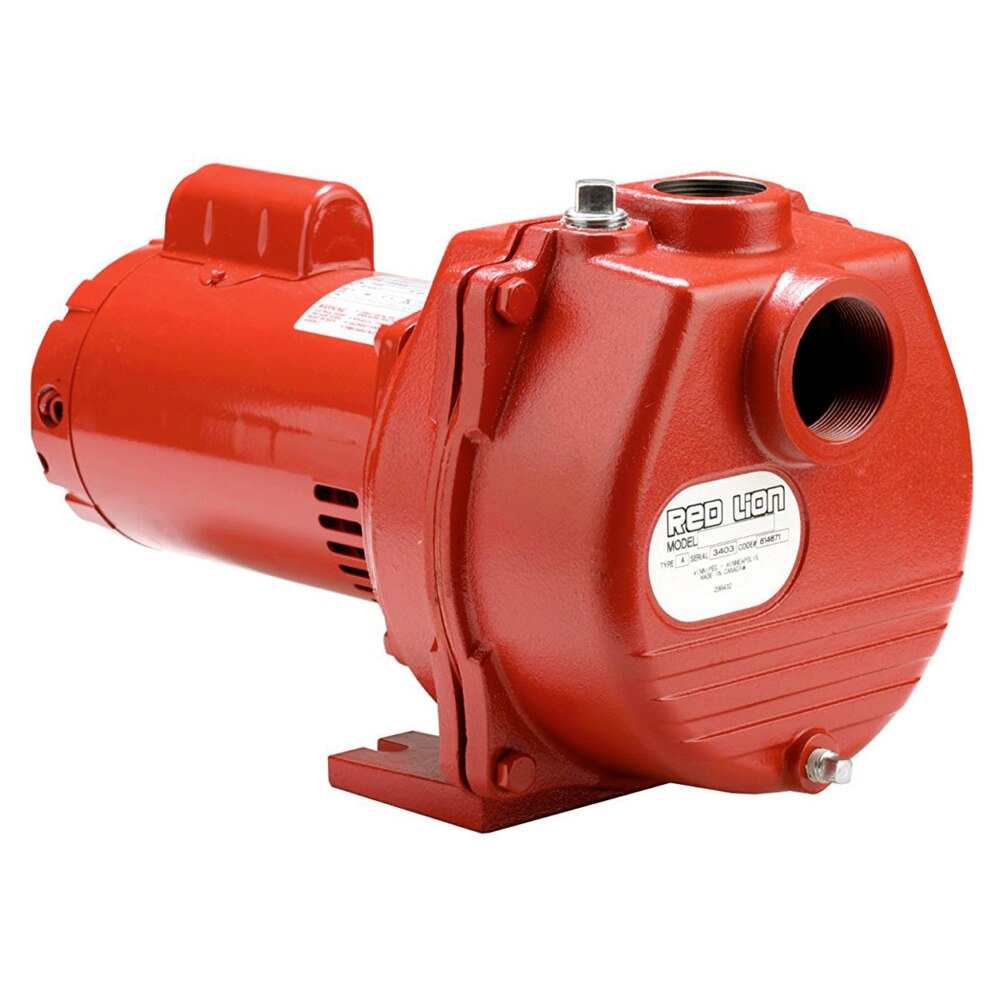

Red Lion 2 HP Sprinkler Pump
Sprinkler pumps transport water from a lake or pond to supply irrigation for a lawn or garden. Because they are designed to move large volumes of water, sprinkler pumps are also useful in high-volume applications such as filling pools, water transfer, and boosting household water pressure.
The Red Lion RL-SPRK Series Sprinkler Pumps are ideal for residential and commercial lawn and turf sprinkler systems. Featuring a rugged cast iron casing and pump base, this centrifugal pump comes with a leading 2-year manufacturer’s warranty. It moves water at a maximum flow of 77 gpm, is simple to prime, lifts water up to 25 feet, and makes sizing and installation easy for new and retrofit installations.
Features & Benefits
- Rugged cast iron casing and pump base for durability and long life.
- Easy to prime up to 25’ requiring no additional priming after initial fill.
- Repair kits available for easy replacement.
- Brass impeller conversion kits available for easy pump upgrade.
- *BR models are configured with brass impeller.
HP | VOLTS | AMPS | INTAKE | DISCHARGE | DISCHARGE PRESSURE - PSI @ 5' LIFT | MAX PRESSURE PSI | MAX FLOW GPA | |||
10 | 20 | 30 | 40 | |||||||
GALLONS PER MINUTE | ||||||||||
2 | 230 | 10.9A @ 230V | 2" FNPT | 1 1/2" FNPT | 76 | 75 | 65 | 47 | 49 | 76 |
