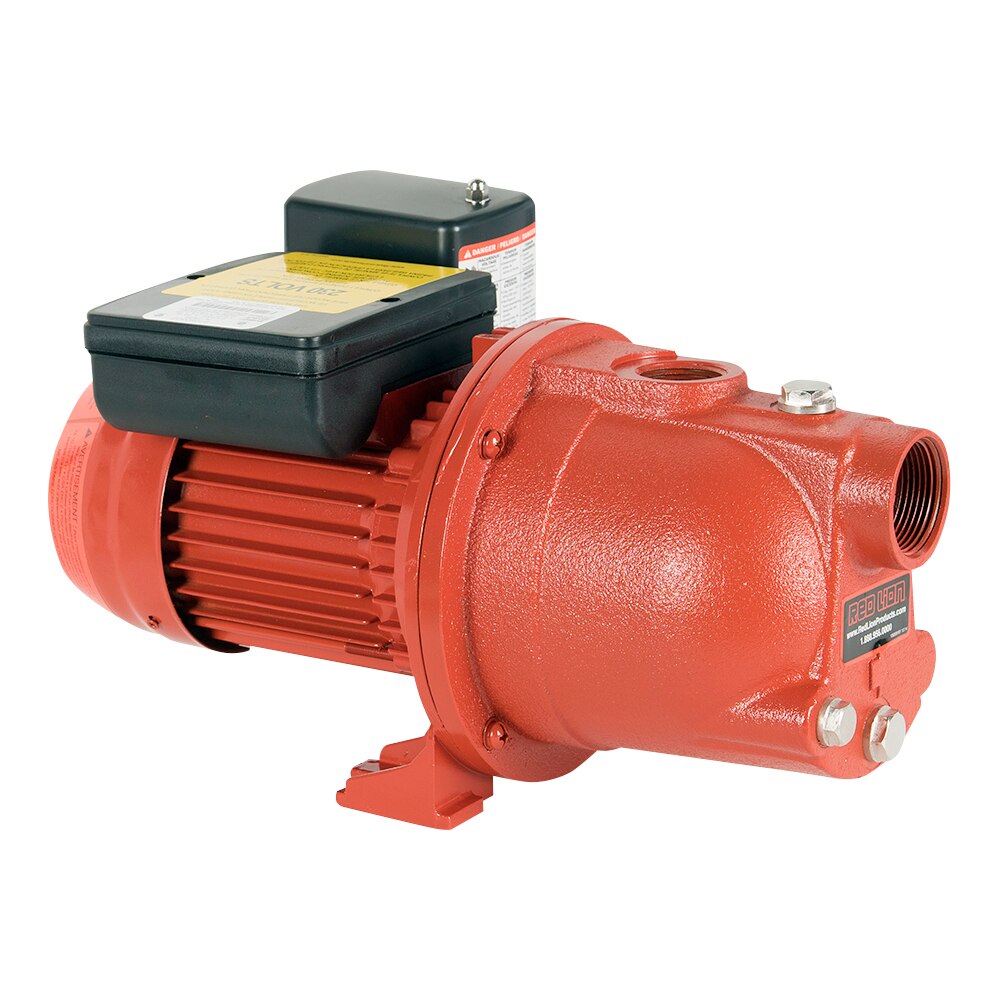

Red Lion 3/4 HP Cast Iron Shallow Well Jet Pump
SKU: *RL-97080701
Red Lion 3/4 HP Cast Iron Shallow Well Jet Pump
Ideal for the supply of fresh water to rural homes, farms, and cabins that have suction lifts down to 25'.
Features & Benefits- Shallow well jet pump Ideal for use in shallow wells less than 25' deep
- Heavy-duty cast iron construction For years of service and reliability
- Includes factory pre-set 30/50 pressure switch Produces up to 50 psi with automatic shut-off
- 115/230 Volt heavy-duty motor TEFC design with simple connection to existing power source
| AMPS/VOLTS | INTAKE | DISCHARGE | PRESSURE GAUGE PORT | SUCTION LIFT | DISCHARGE PRESSURE (PSI) | MAX PRESSURE | MAX HEAD | ||||
| 20 | 30 | 40 | 50 | 60 | |||||||
| GALLONS PER MINUTE | |||||||||||
| 9A @ 115V 4.5A @ 230V | 1-1/4”FNPT | 1" FNPT | 1/8" NPT | 5' | 13.4 | 13 | 9.1 | 4.8 | 1.5 | 70 | 161' |
| 15' | 9.8 | 9.7 | 7.2 | 3.4 | .08 | 66 | 152' | ||||
| 25' | 4.4 | 5.2 | 4.8 | 1.8 | 0.4 | 62 | 144' | ||||
