SJE EZ Series Convertible Simplex w/Time & Demand Dosing 115/230v Control Panel
SKU: SJE-CEZS2
SJE EZ Series Convertible Simplex w/Time & Demand Dosing 115/230v Control Panel
Easy Installations with EZ Series® Panels

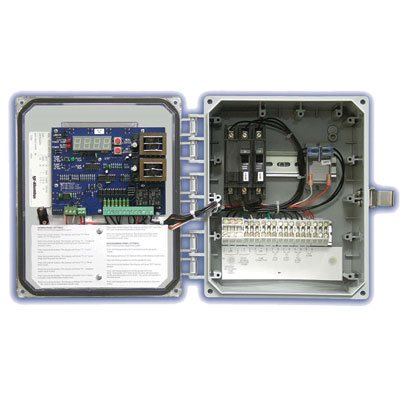

The EZ Series® Single Phase Simplex panel is designed to control one 120/208/240V single phase pump in water and sewage installations. It features a digital display on the inside of the front cover for programming pump control and system monitoring. This innovative control panel is easily converted to demand or timed dose in the field. EZ Series® Simplex panel is UL/cUL Listed and backed by a three-year limited warranty. Duplex model available!
EZ Series® Simplex Features:
- NEMA 4X enclosure with hinged cover for indoor/outdoor use
- Locking latch (standard) for added safety
- Flashing red alarm beacon on cover; audible alarm horn
- External indicators for control power, alarm power and pump run
- External test/silence switch for easy operation
- Pump Run button
- Menu/Enter & Set/Change buttons for programming and viewing control panel
- Large terminal strip for easy wiring
- Two circuit breakers: one for pump power; another for control and alarm power
- Pump run relay (30 amp) controls pump by switching electrical lines
- Field wiring diagram
- Easy-to-follow programming and operation label
- Auxiliary alarm contacts (standard)
- 3 Float switches required
Digital Display Features:
- Float status
- Elapsed time pump run
- Cycle counter
- Alarm counts (high water/power fail)
- Float error count
- Auxiliary alarm counter
- Timer override count (TD only)
- On time (TD only)
- Off time (TD only)
