SJE Pump Down 115v Float Switch, 10' Cord (Max. 1/2 HP)

SKU: SJE-10PMD1WP
(0) No Reviews yet
$116.65

In Stock

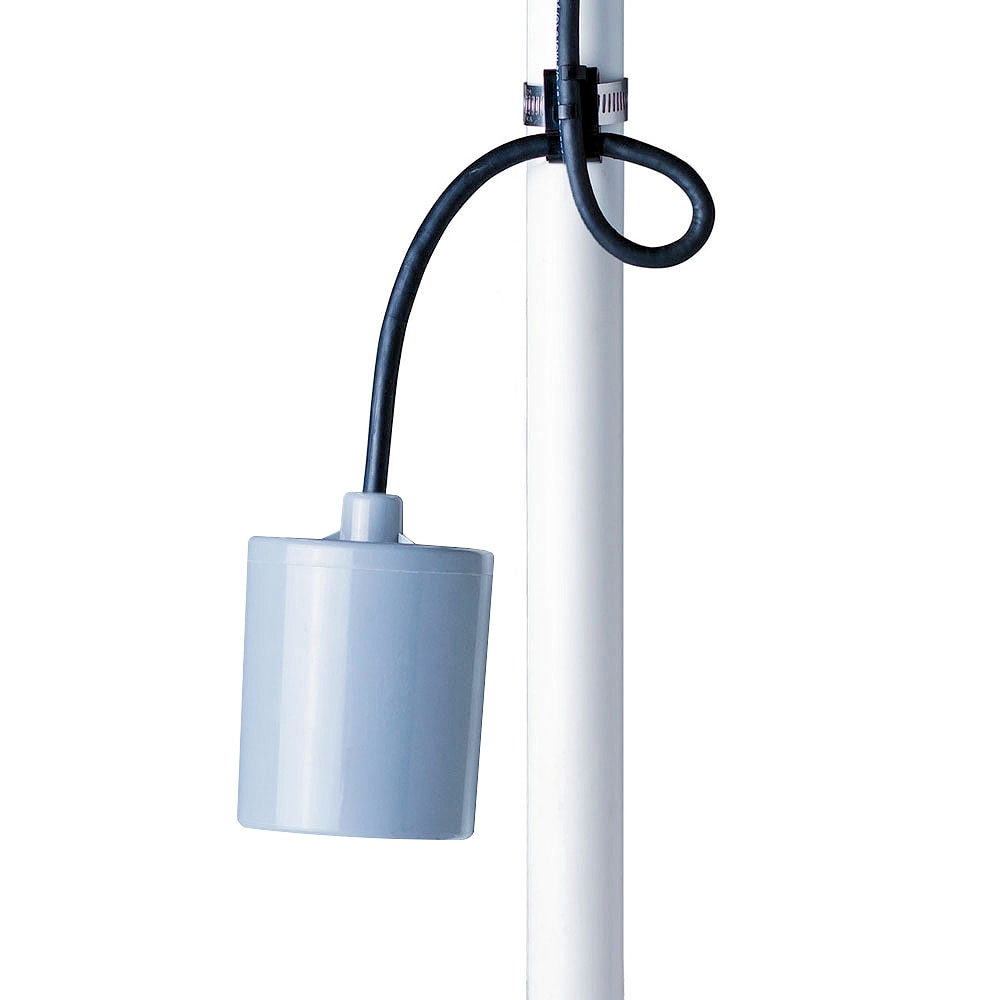

SJE Pump Down 115v Float Switch, 10' Cord (Max. 1/2 HP)


Mechanically-activated, wide-angle switch designed for direct control of pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC.


This switch provides automatic control of pumps in:


  • Potable water
  • Water
  • Sewage applications


The SJE PumpMaster® pump switch is not sensitive to rotation or turbulence allowing it to be used in both calm and turbulent applications.
Features:


  • Passed NSF Standard 61 protocol by an approved Water Quality Association laboratory
  • Heavy-duty contacts
  • Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC
  • Adjustable pumping range of 7 to 36 inches (18 to 91 cm)
  • UL Recognized for use in water and sewage
  • CSA Certified


Specifications:


  • Cable: flexible 16 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)
  • Float: 3.05 inch diameter x 3.56 inch long (7.75 x 9.04 cm) high impact, corrosion resistant, PVC housing for use in sewage and water up to 140°F (60°C)


120 VAC 50/60Hz Single Phase:


  • Maximum Pump Running Current: 13 amps
  • Maximum Pump Starting Current: 85 amps
  • Recommended Pump HP: 1/2 HP or less


230 VAC 50/60Hz Single Phase:


  • Max. Pump Running Current: 13 amps
  • Max. Pump Starting Current: 85 amps
  • Recommended Pump HP: 1 HP or less


Note: This switch must be used with pumps that provide integral thermal overload protection.
