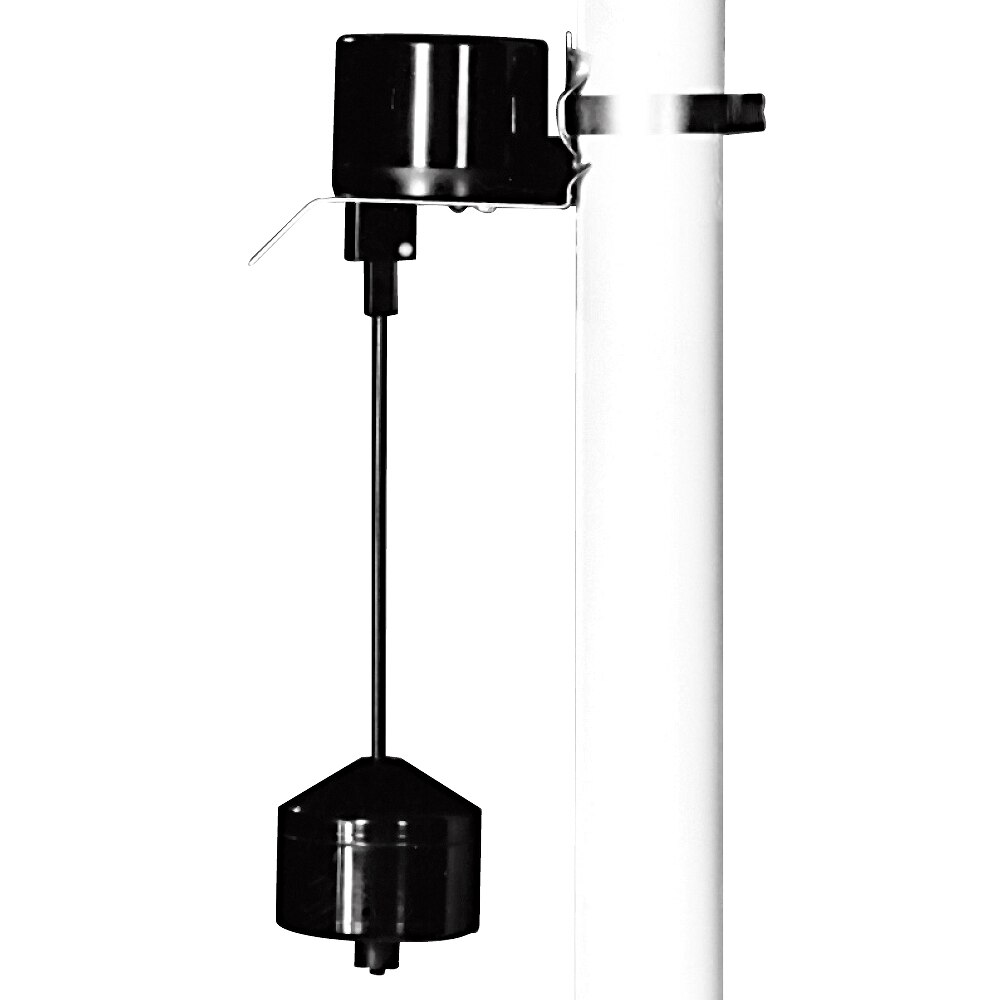

SJE Pump Down 115v Vertical Magnetic Switch, 10' Cord (Max. 1/2 HP)

SKU: SJE-1003590
(0) No Reviews yet
$106.79

In Stock

SJE Pump Down 115v Vertical Magnetic Switch, 10' Cord (Max. 1/2 HP)


Mechanically-activated switch designed for direct control of pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC.


This mechanically-activated pump switch is designed to operate in non-potable water and sewage applications with limited space. It works well in small sump chambers, effluent applications, and laundry trays, as well as in large tanks.


The SJE VerticalMaster® pump switch is not sensitive to turbulence.


It is available for pump down applications only.


Features:


  • Heavy-duty contacts.
  • Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC
  • Adjustable pumping range of .75 to 6.5 inches (2 to 17 cm)
  • UL Recognized for use in non-potable water and sewage
  • CSA Certified
Specifications:


  • Cable: flexible 16 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)
  • Mounting Bracket & Hose Clamp: Stainless Steel
  • Lift Rod: Injection molded acetal plastic
  • Float Stop: Neoprene
  • Switch & Float Housing: High impact, corrosion resistant, PVC housing for use in sewage and non-potable water up to 125°F (52°C)
  • Overall dimensions: 12 inch high x 5 inch x 3 inchwide (30.5 cm high x 12.7 cm x 7.6 cm wide)
  • Switch housing dimensions (excludingcable entrance): 2 inch high x 2.8 inch wide(5 cm high x 7.1 cm wide)
  • Float housing dimensions: 2.3 inch high x 2.7 inchwide (5.8 cm high x 6.9 cm wide)


120 VAC 50/60Hz Single Phase:


  • Maximum Pump Running Current: 13 amps
  • Maximum Pump Starting Current: 60 amps
  • Recommended Pump HP: 1/2 HP or less


230 VAC 50/60Hz Single Phase:


  • Max. Pump Running Current: 12 amps
  • Max. Pump Starting Current: 60 amps
  • Recommended Pump HP: 1 HP or less


Note: This switch must be used with pumps that provide integral thermal overload protection.
