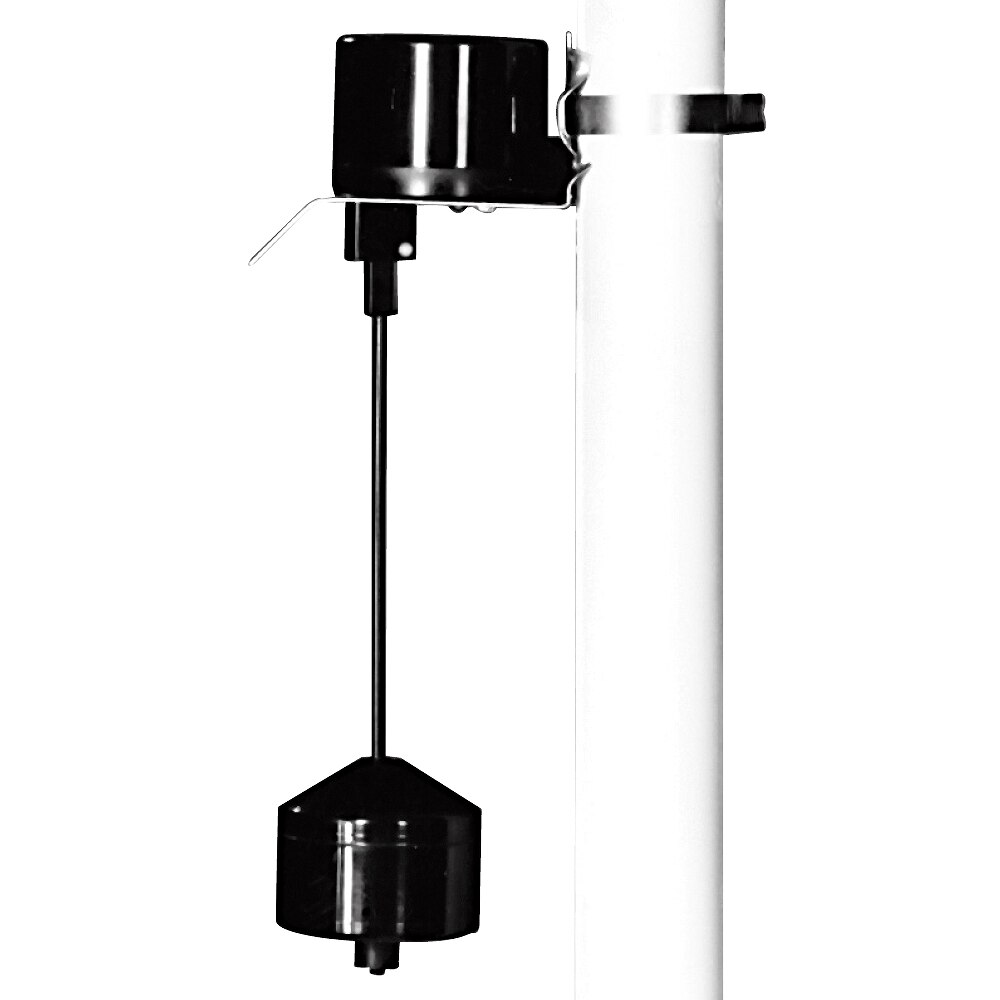

SJE Pump Down 115v Vertical Magnetic Switch, 20' Cord (Max. 1/2 HP)
SKU: **SJE-1003770
SJE Pump Down 115v Vertical Magnetic Switch, 20' Cord (Max. 1/2 HP)
Mechanically-activated switch designed for direct control of pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC.
This mechanically-activated pump switch is designed to operate in non-potable water and sewage applications with limited space. It works well in small sump chambers, effluent applications, and laundry trays, as well as in large tanks.
The SJE VerticalMaster® pump switch is not sensitive to turbulence.
It is available for pump down applications only.
Features:
- Heavy-duty contacts
- Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC
- Adjustable pumping range of .75 to 6.5 inches (2 to 17 cm)
- UL Recognized for use in non-potable water and sewage
- CSA Certified
Specifications:
120 VAC 50/60Hz Single Phase:
230 VAC 50/60Hz Single Phase:
Note: This switch must be used with pumps that provide integral thermal overload protection.
- Cable: flexible 16 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)
- Mounting Bracket & Hose Clamp: Stainless Steel
- Lift Rod: Injection molded acetal plastic
- Float Stop: Neoprene
- Switch & Float Housing: High impact, corrosion resistant, PVC housing for use in sewage and non-potable water up to 125°F (52°C)
- Overall dimensions: 12 inch high x 5 inch x 3 inchwide (30.5 cm high x 12.7 cm x 7.6 cm wide)
- Switch housing dimensions (excluding cable entrance): 2 inch high x 2.8 inch wide(5 cm high x 7.1 cm wide)
- Float housing dimensions: 2.3 inch high x 2.7 inch wide (5.8 cm high x 6.9 cm wide)
120 VAC 50/60Hz Single Phase:
- Maximum Pump Running Current: 13 amps
- Maximum Pump Starting Current: 60 amps
- Recommended Pump HP: 1/2 HP or less
230 VAC 50/60Hz Single Phase:
- Max. Pump Running Current: 12 amps
- Max. Pump Starting Current: 60 amps
- Recommended Pump HP: 1 HP or less
Note: This switch must be used with pumps that provide integral thermal overload protection.
