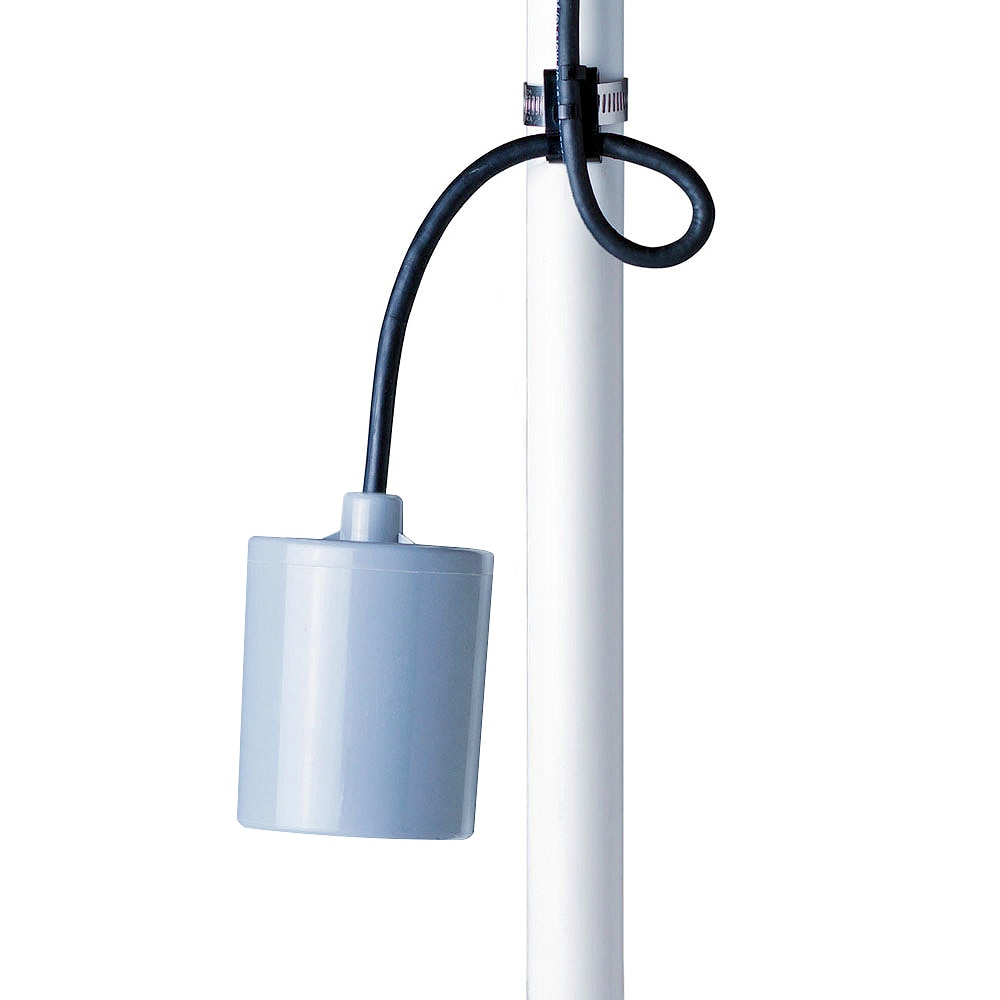

SJE Pump Down 230v Float Switch, 20' Cord (Max. 2 HP)
SKU: SJE-20PMPD2WP
SJE Pump Down 230v Float Switch, 20' Cord (Max. 2 HP)
Mechanically-activated, wide-angle switch designed for direct control of pumps up to 3/4 HP at 120 VAC and 2 HP at 230 VAC.
This switch provides automatic control of pumps in:
- Potable water
- Water
- Sewage applications
The SJE PumpMaster® pump switch is not sensitive to rotation or turbulence allowing it to be used in both calm and turbulent applications.
Features:
- Passed NSF Standard 61 protocol by an approved Water Quality Association laboratory.
- Heavy-duty contacts.
- Controls pumps up to 3/4 HP at 120 VAC and 2 HP at 230 VAC.
- Adjustable pumping range of 7 to 36 inches (18 to 91 cm).
- UL Recognized for use in water and sewage.
- CSA Certified.
Specifications:
120 VAC 50/60Hz Single Phase:
230 VAC 50/60Hz Single Phase:
Note: This switch must be used with pumps that provide integral thermal overload protection.
- Cable: flexible 14 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)
- Float: 3.05 inch diameter x 3.56 inch long (7.75 x 9.04 cm) high impact, corrosion resistant, PVC housing for use in sewage and water up to 140°F (60°C)
120 VAC 50/60Hz Single Phase:
- Max. Pump Running Current: 15 amps
- Max. Pump Starting Current: 85 amps
- Recommended Pump HP: 3/4 HP or less
230 VAC 50/60Hz Single Phase:
- Max. Pump Running Current: 15 amps
- Max. Pump Starting Current: 85 amps
- Recommended Pump HP: 2 HP or less
Note: This switch must be used with pumps that provide integral thermal overload protection.
