SJE Pump Up/Down (115v Maximum 1/2 HP) or (230v Maximum 1 HP) Float Switch (30' Cord)

SJE Pump Up/Down (115v Maximum 1/2 HP) or (230v Maximum 1 HP) Float Switch (20' Cord)

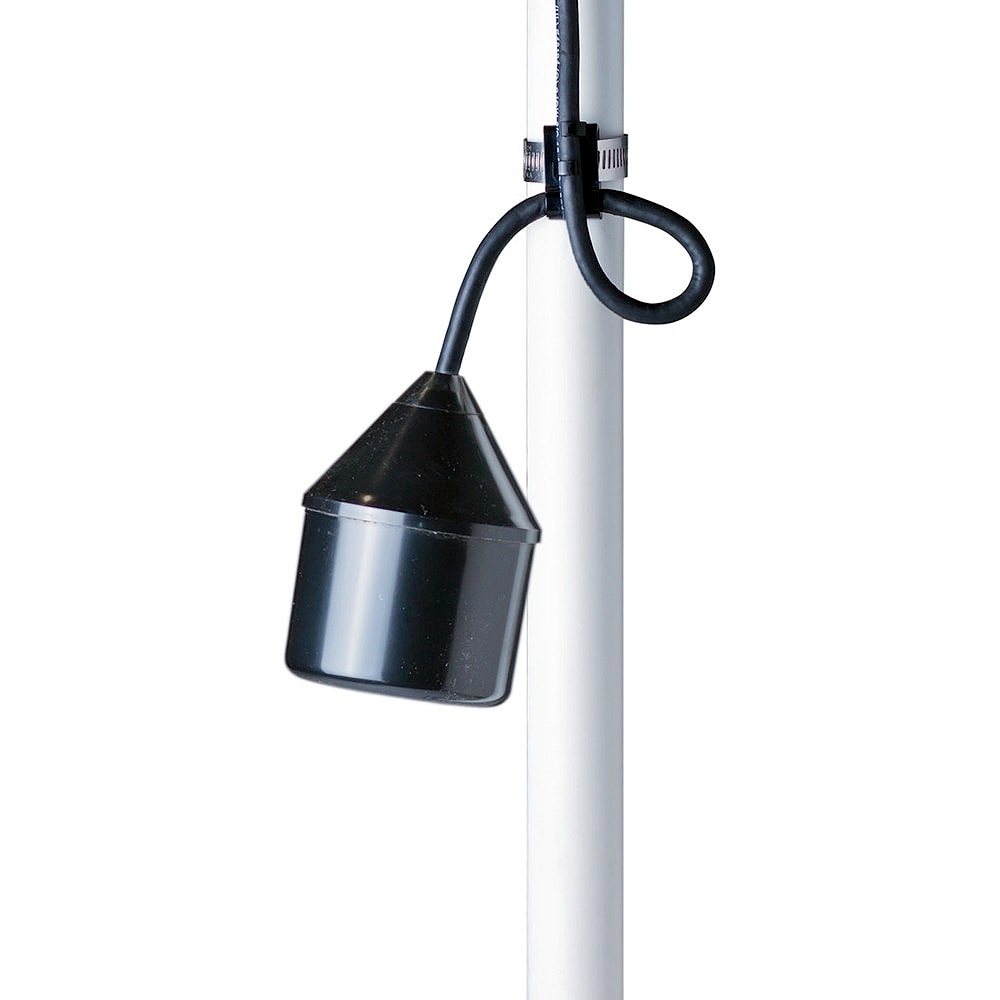

Mechanically-activated, narrow-angle float switch designed to activate pump control panels and alarms. This narrow-angle sensing device is used to accurately monitor liquid levels in:

• Potable water
• Water
• Sewage applications

The SJE SignalMaster® SPDT control switch can be wired to work in either normally open or normally closed applications. It is not sensitive to rotation.

When wired as Normally Open (high level)

The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level, and turns off (opens) when the float drops slightly below horizontal.

When wired as Normally Closed (low level)

The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level, and turns off (opens) when the float tips slightly above horizontal.

Features:

• Passed NSF Standard 61 protocol by an approved Water Quality Association laboratory
• Can be wired to work in either normally open or normally closed applications (Single Pole, Double Throw)
• Mechanically-activated, snap action contacts
• High impact, corrosion resistant, polypropylene float housing
• Not sensitive to rotation
• Control differential of 1.5 inches (4 cm) above or below horizontal
• Green colored cap for easy identification of SPDT control switch
• UL Listed for use in water and sewage
• CSA Certified
