SJE Tank Alert AB Duo Alarm System
SKU: SJE-1038473
SJE Tank Alert AB Duo Alarm System
120 VAC w/ 15’ SJE SignalMaster High Level w/ Auxiliary Contacts.
Indoor Dual Alarm System with Auto Reset and Battery Backup.
The Tank Alert AB DUO indoor alarm monitors two liquid level conditions in one easy-to-install alarm in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural, filters and other waste applications.

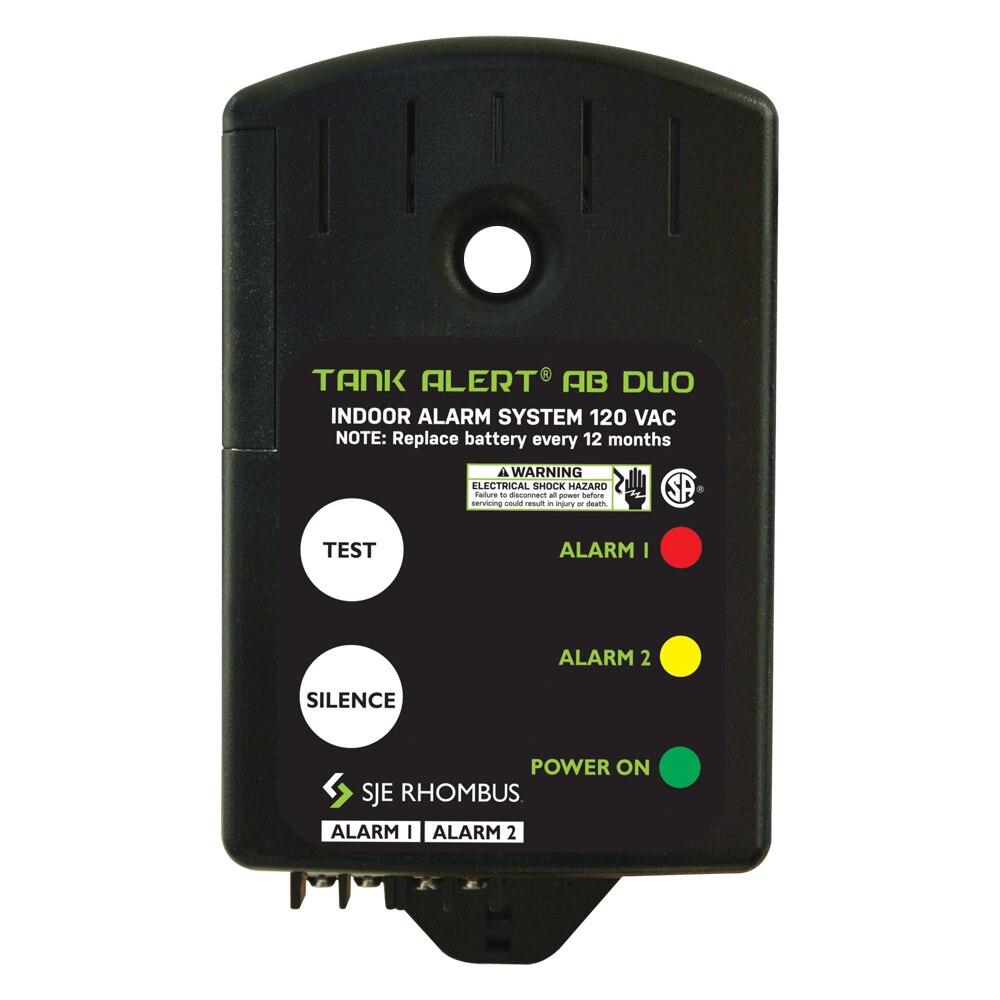

The sleek design of the alarm features a user friendly touch pad with colored LED indicators for easy visual detection. The alarm horn and red LED indicator activate for a high water alarm condition. The alarm horn and yellow LED indicator activate for alarm 2. The green LED indicates 120V primary power to the alarm. Once the condition is cleared, the alarm automatically resets.
Features:
VOLTAGE FOR 120V MODEL:
- Primary: 120 VAC, 60 Hz, 2.4 watts max. (alarm condition)
- Secondary: 9 VDC
BATTERY BACKUP POWER:
- 9 VDC
ALARM ENCLOSURE:
- 6 x 4 x 2.25 inches (15.24 x 10.16 x 5.71 cm), NEMA 1 plastic
ALARM HORN:
- 87 decibels at 10 feet (3 meters)
POWER CORD:
- 6 feet (1.8 meters)
AUXILIARY ALARM CONTACTS (optional):
- Voltage: 120 VAC
- Current: 0.5 amps maximum
FLOAT SWITCH CONNECTION TERMINAL:
- For float switch connection only. Do not apply power. (Voltage across terminals is 8-9 VDC)
FLOAT SWITCH:
- SJE SignalMaster control switch with mounting clamp
- Cable: 15 feet (4.57 meters), flexible 18 gauge, 2 conductor (UL) SJOW, water-resistant (CPE)
- Float: 2.74 inches diameter x 4.83 inches long (7.0 cm x 12.3 cm), high impact, corrosion resistant polypropylene housing for use in sewage and water up to 140°F (60°C)
