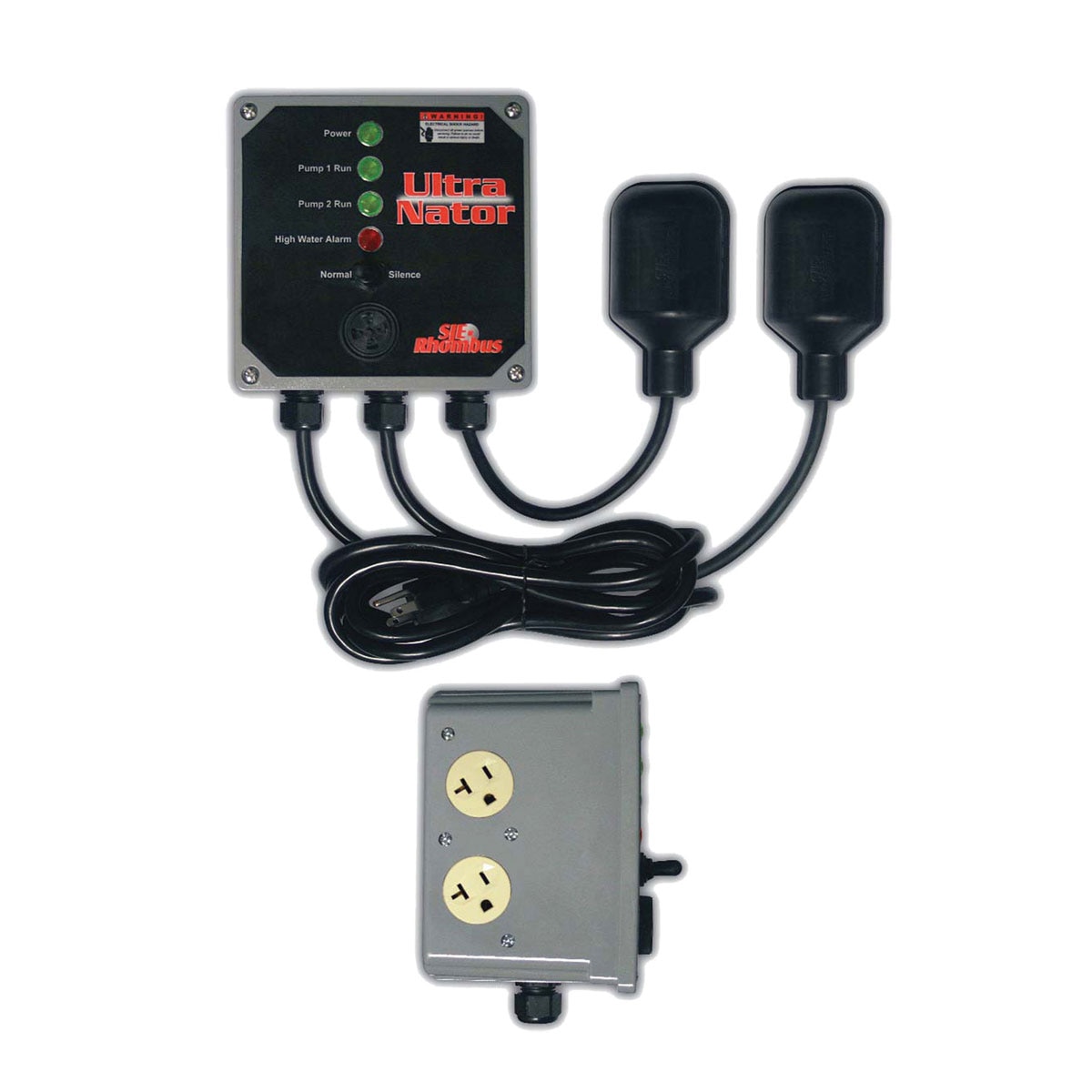

SJE Ultra Nator Control and Alarm System

SJE Ultra Nator Control and Alarm System

The NEW Ultra Nator control and alarm system is designed to control two 120V 1 HP or 15 Amp single phase pumps. The Ultra Nator system features two receptacles for easy pump connections. No wiring!

In normal operation pumps will alternate based on the pump switch level. If an alarm condition occurs (top float activates), the alarm light and horn turn on. The pump in use will turn off and the other pump will turn on. Pumping will continue until the pump switch deactivates (bottom float).

Note: The Ultra Nator will only run one pump at a time.

Features:

• NEMA 1 rated for indoor use
• Alternating pump action equalizes pump wear
• Factory-installed 10 ft. power cord
• Factory-installed pump activation and alarm activation switches for easy installation (various switch configurations available)
• Green power on indicator
• Green pump run indicators (pump 1, 2)
• Audible and red indicator visual alarm
• Normal/silence alarm switch mounted externally for easy operation
• Receptacles are angled to accept standard or right-angled pump plugs
