SJE Up/Down Switch NSF/CSA w/Weight 120/230v

SJE Up/Down Switch NSF/CSA w/Weight 120/230v

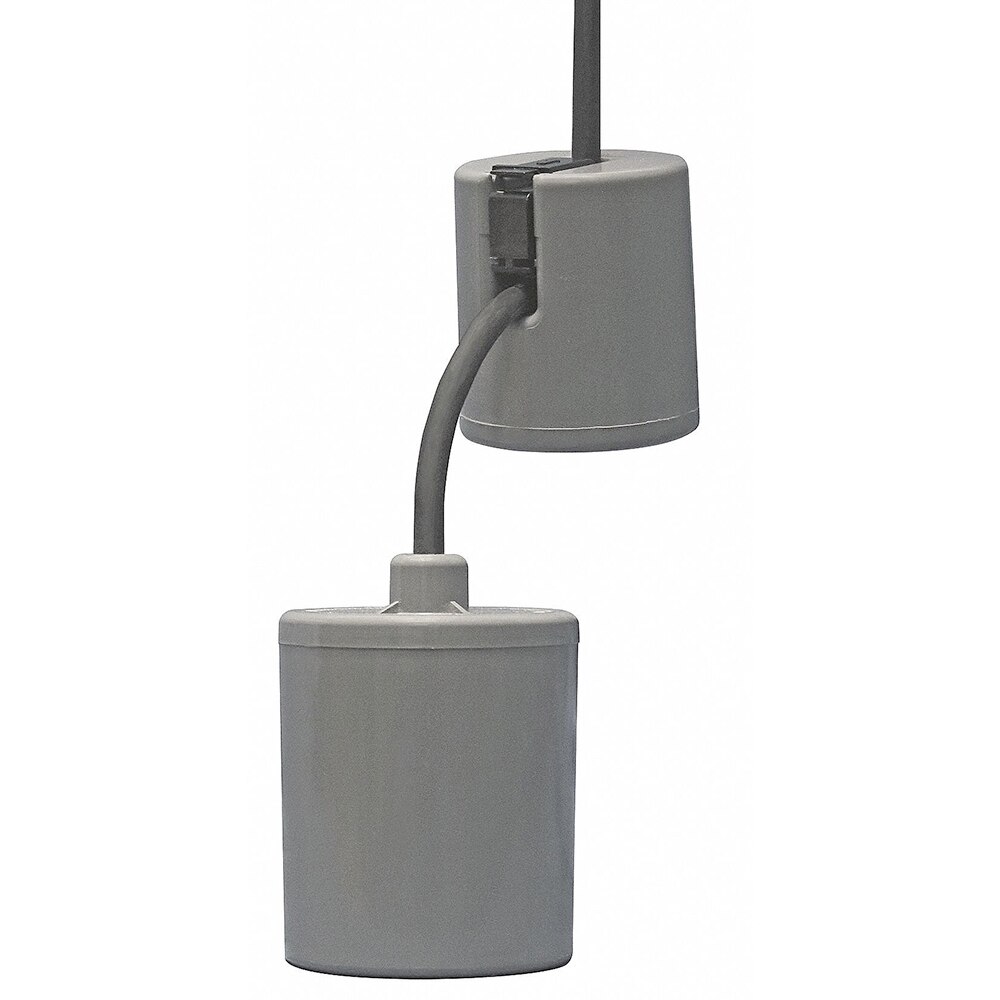

CSA Certified Potable Water Switch

A mechanically-activated, wide-angle float switch providing automatic control in potable water and water applications. It provides direct control of pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC or control applications as low as 120 VAC, 100 mA.

It is CSA Certified to meet NSF/ANSI 61 standard for use in potable water and approved for use in tanks of 250 US gallons (950L) in volume or greater per float.

It can be wired to work in either pump down (normally open) or pump up (normally closed) applications. It is not sensitive to rotation or turbulence allowing it to be used in both calm and turbulent applications.

Features:

• Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC or control applications as low as 120 VAC, 100 mA.
• CSA Certified to meet NSF/ANSI 61 standard for use in potable water. Approved for use in tanks of 250 US gallons (950L) in volume or greater per float.
• Heavy-duty contacts.
• Adjustable pumping range of 7 to 36 inches (18 to 91 cm).
• For direct wiring applications.
• Can be wired to work in either pump down (normally open) or pump up (normally closed) applications (Single Pole, Double Throw).
• Includes external cable weight.
