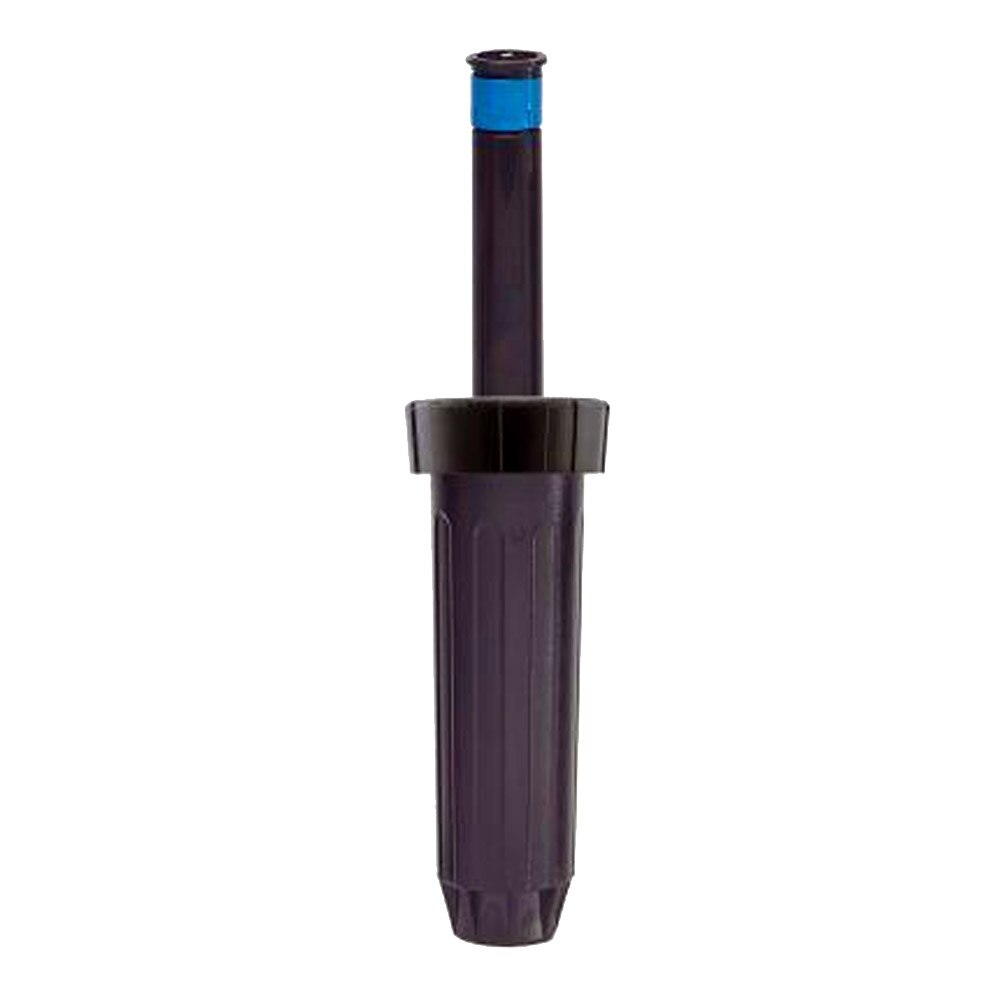

Weathermatic Max 4" Pop Up Sprayhead (Less Nozzle)
SKU: **WM-MAX4
Weathermatic Max 4" Pop Up Sprayhead (Less Nozzle)
Max Seal
- Industry first dual pressure-activated seal with 720 degree sealing surface around flow tube stem, cap, and body eliminates stick-ups and cap to body leaks.
- Industry standard white Santoprene seal for ultimate performance.
Max Spring
- Industry’s strongest spring for positive retraction.
- Corrosion resistant stainless steel material for long life.
- Unique reversible spring design can be installed in either direction for simple, fast field assembly.
Max Self-Cleaning Check Valve
- Enhanced debris resistance through expanded surface area.
- Tapered design for self-cleaning operation.
- Positive seal even in dirty water environment.
Max Level Cap
- Flat cap and easy pull up, low profile flush plug for sprinkler leveling.
- Superior labeling process allows better identification and customization.
Max Nozzle Options
- Compatible with all industry-standard female thread nozzles.
Specifications:
- Pop-Up Height: 4″ (10 cm)
- Body Height: 6 1⁄4” (15.9 cm)
- Pressure Range: 15 – 70 PSI (1.0 – 4.8 BAR)
- Flow By: Zero @ 5 PSI (0.3) or greater
- Factory Installed Check Valve: 14 ft/hd @ 18 PSI (4.3 m/hd @ 1.2 BAR)
