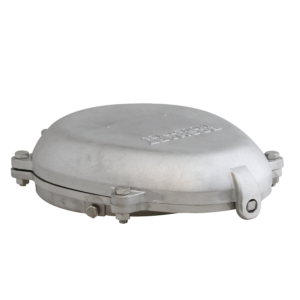

Well Cap 6" Aluminum Vermin Proof - 1-1/4"
SKU: *PA-WTCA0612
*Well Cap 6" Aluminum Vermin Proof - 1-1/4"
Watertight well caps are easy to install and provide easy access for maintenance. They feature large screened air vents making them vermin proof. The design offers greater clearance for submersible pump cable and each well cap has a grounding terminal with a bolt. Two O-rings ensure a reliable watertight seal both between the well casing & retainer ring as well as between the seal cover & retainer ring. Stainless steel hardware is used for maximum corrosion resistance. A well log is provided inside each cap to record installation data and specifications. Each well cap has a grounding terminal with a bolt.
Specifications
- For Steel or PVC Well Casings
- Air Vents - (2) ¾"
- Design - Standard
- Well Casing I.D. - 6"
- Well Casing O.D. - 6-5/8"
- Primary Material - Aluminum
- Conduit Connection - 1-1/4" FPT
- Product Model - WTC Series Watertight Well Caps
Dimensions
- Width - 7.95 in
- Height - 2.60 in
- Length - 11.25 in
- Weight -3.55 lb
Certifications
- No Lead
- Water Systems Council
