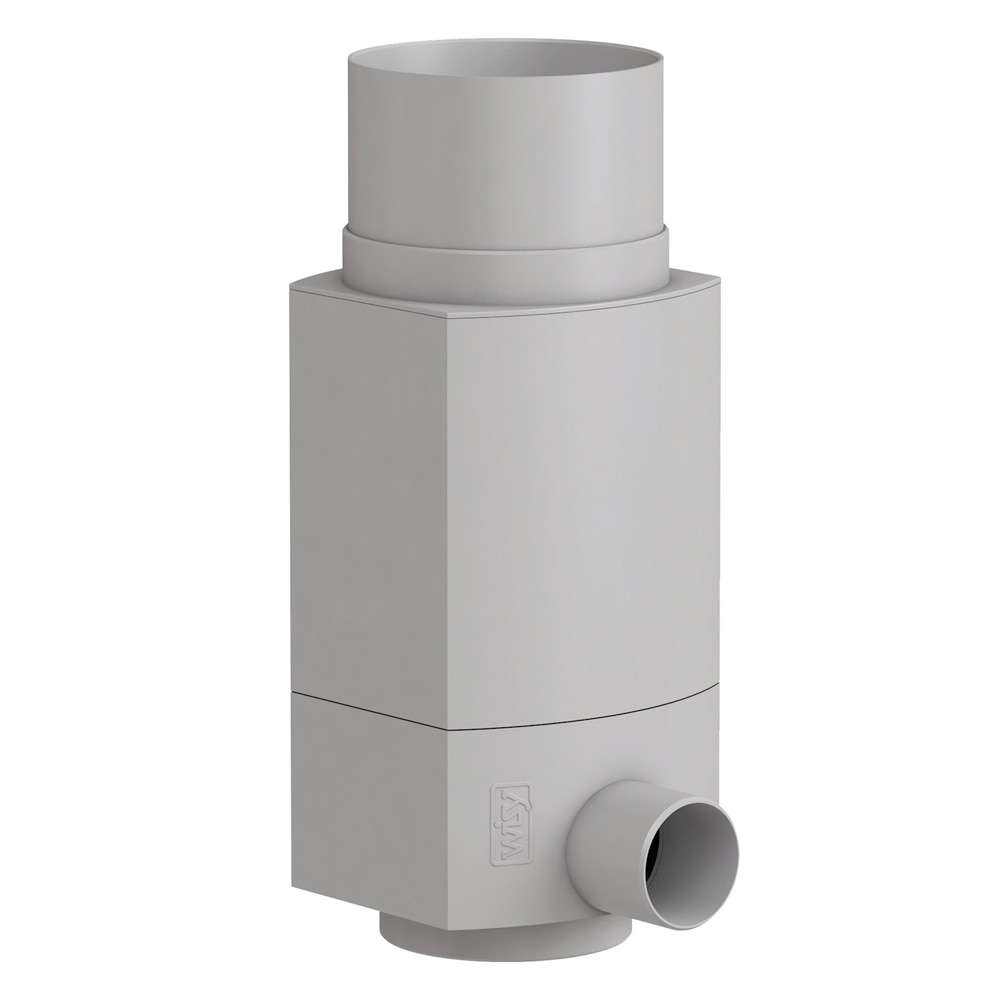

Wisy 4" Plastic Downspout Filter w/SS 280 Micron Screen

Wisy 4" Plastic Downspout Filter w/SS 280 Micron Screen

Operating principle and applications

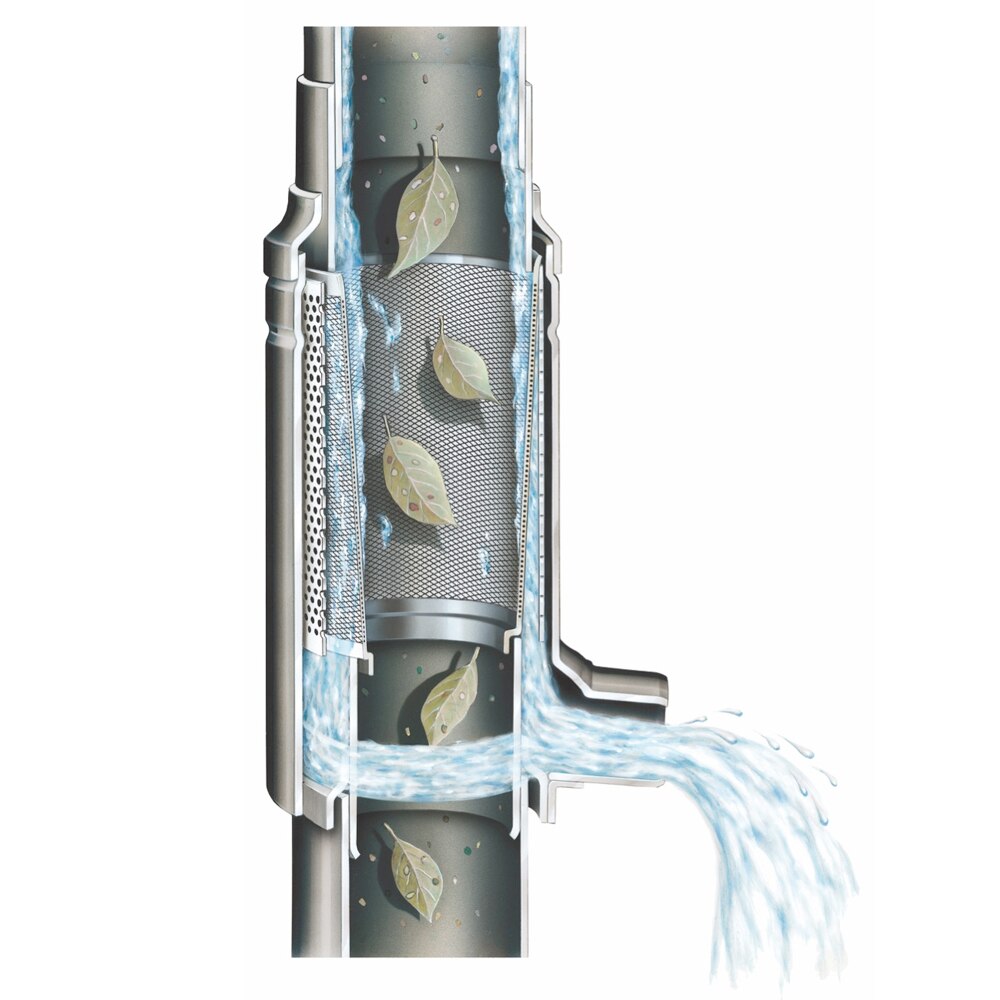

The filter collector is installed in the vertical rainwater downpipe. It filters the runoff rainwater from the roof before discharging the filtered water through the outlet connection to the storage tank. Its filter insert is made of a fine stainless-steel mesh with a mesh size of only 0.28 mm. Leaves, moss and other debris entrained in the rainwater are reliably filtered out and flushed away through the downpipe to the soak away or drain. Rainwater cleansed by this filter is in a perfect condition for tank storage and for subsequent use in the washing machine or for flushing toilets and general household cleaning. No further filtering of the water is required.

The downpipe stays clean

As with all WISY filters, the cross-sectional area for rainwater flow does not change at any point inside the filter, i.e. to ensure the free flow of water, the cross section is not restricted at any point. There is no risk of blockage even during torrential rainfall events which may flush large quantities of debris into the filter. Even a tennis ball could fall unobstructed through the filter. The hydraulic efficiency of the filter is excellent. In average rainfall, over 90% of the run-off rainwater will be filtered and collected.

Oxygen enrichment

The filtering process produces oxygen-rich water. The high oxygen content further enhances the water quality and inhibits the growth of undesirable anaerobic organisms.

Housing

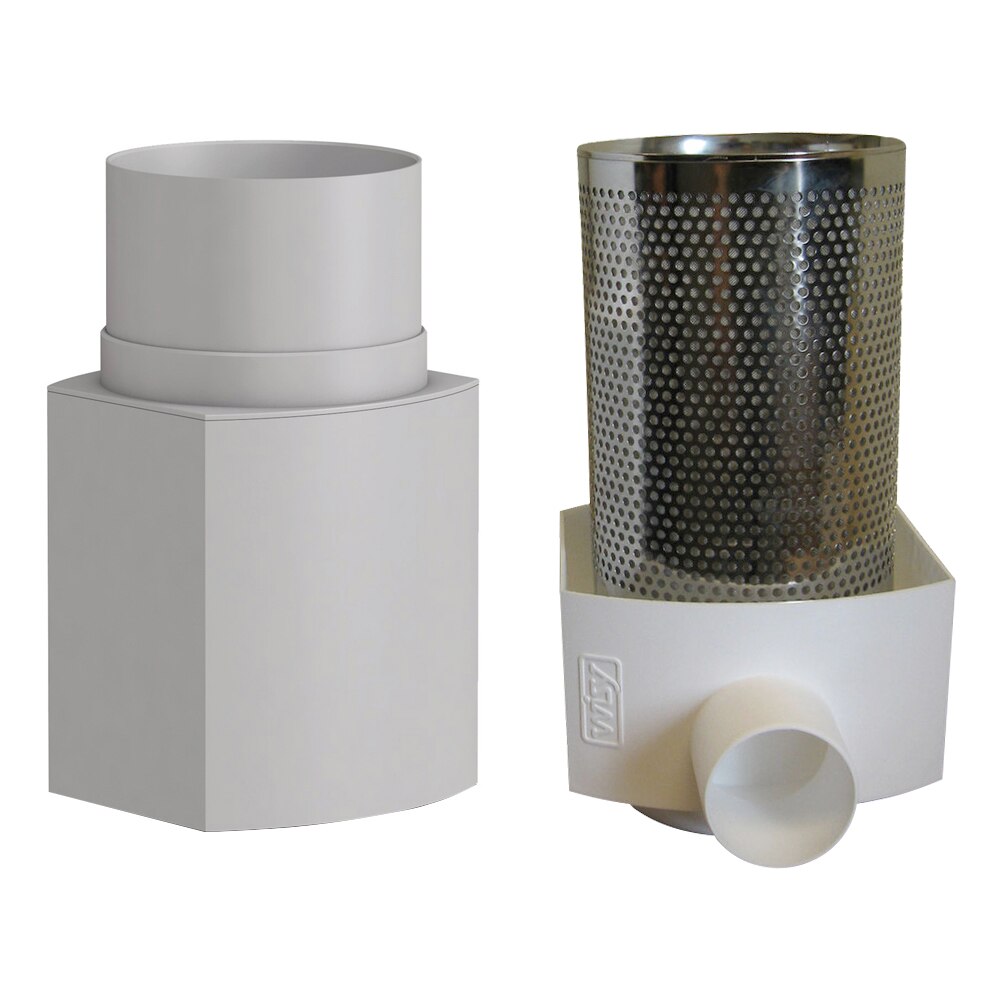

The housing is made of UV-resistant polypropylene, suitable for tropical sunlight. The filter element is made of stainless steel. The inlet diameter directly fitts 110 mm round pipes. Smaller or square downpipes can be connected with an adapter.

Easy to maintain — low-maintenance design

Filter inserts are designed for very low maintenance. It is virtually impossible for debris or dirt to stick to their smooth, stainless-steel surface. As a result, the filter inserts are self-cleaning and have a long service life. Since the filter insert of the filter collector is always above ground level, it is easily accessible and protected against backflow in the sewer system. The filter insert is easily accessible, when necessary it can be removed from the housing in just a few simple steps for cleaning by a high-pressure cleaner or in the dishwasher.
