1" Blossom 3-Tier Brass Fountain Head
SKU: HG-F1
1" Blossom 3-Tier Brass Fountain Head

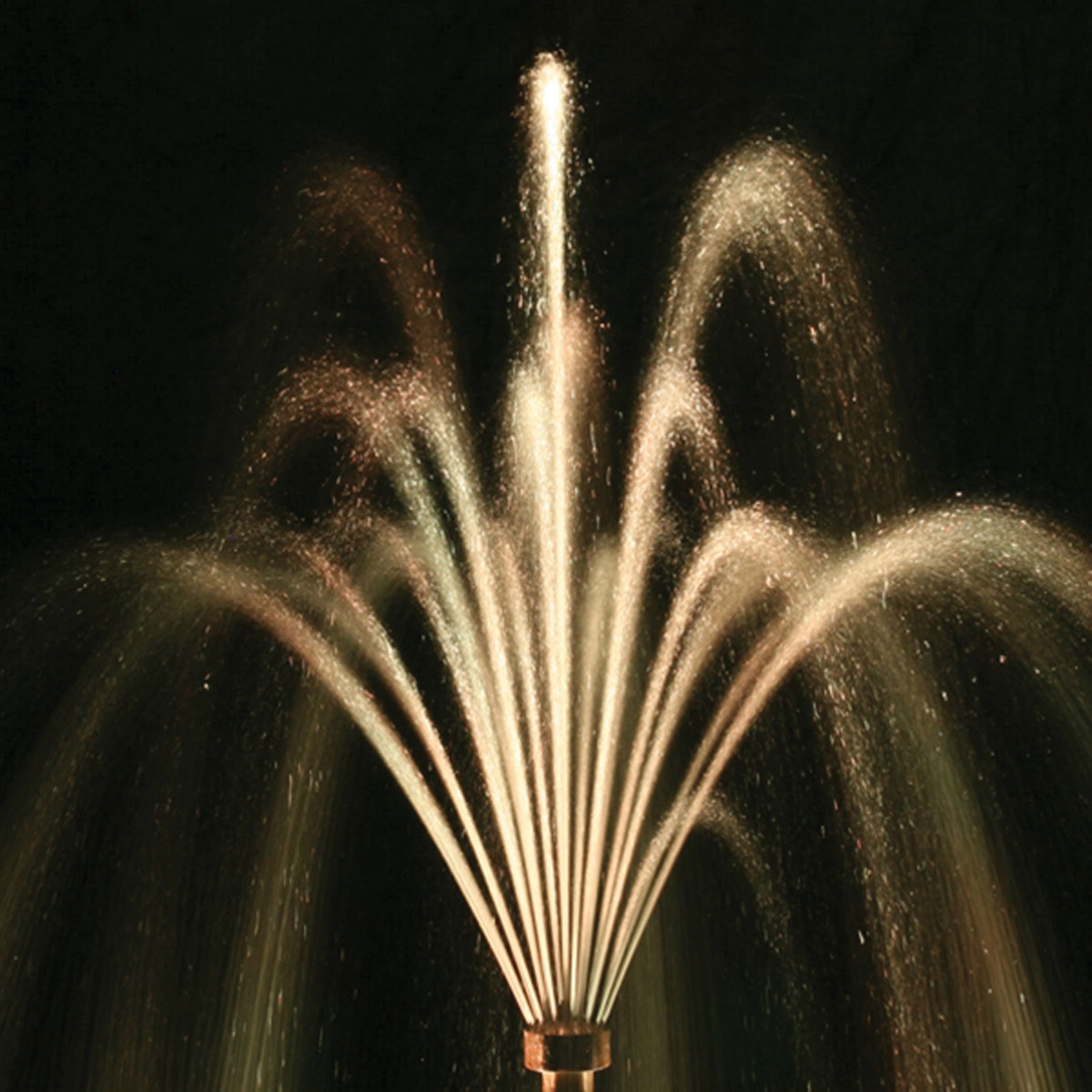

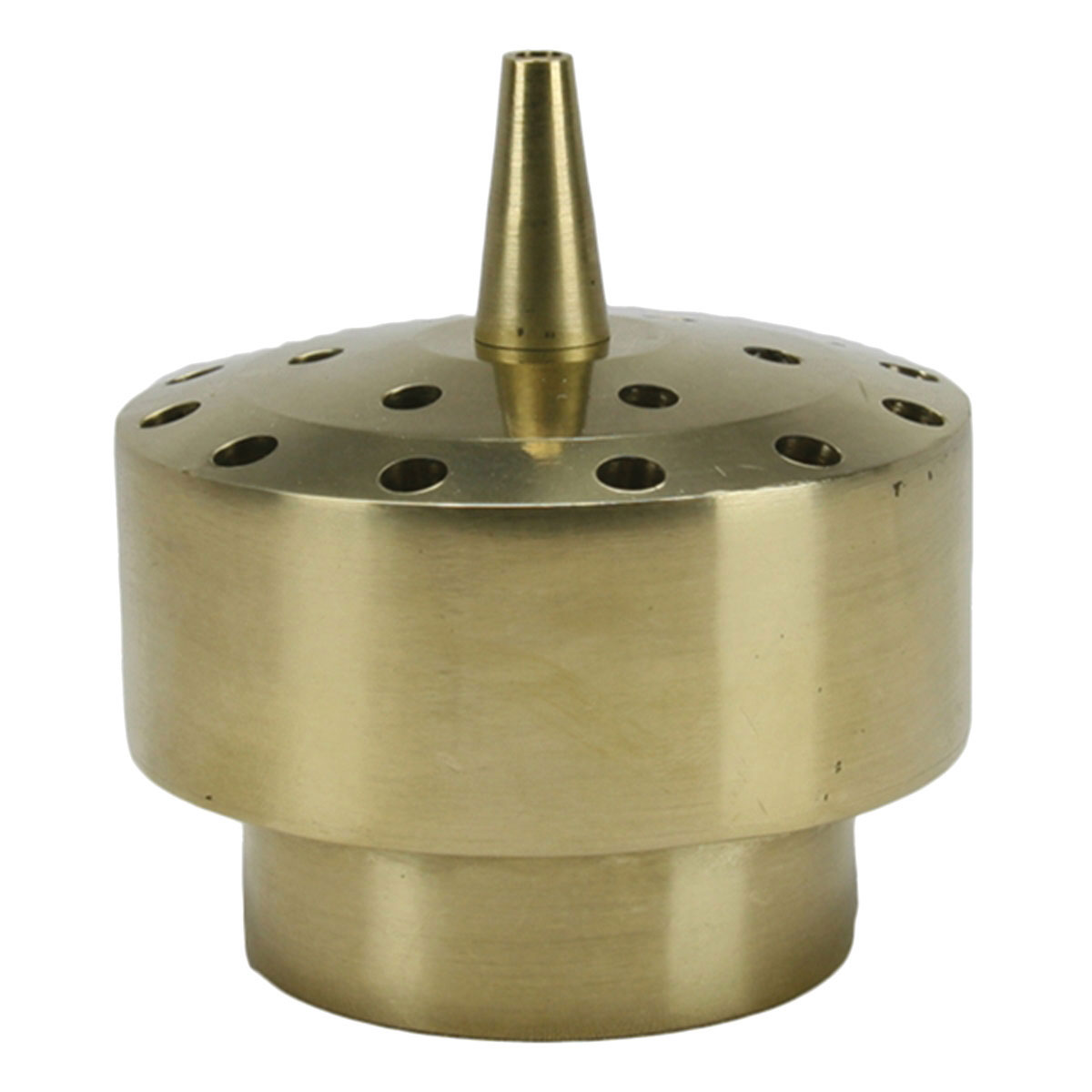

The Blossom 3-Tier brass spray nozzle has a large central jet by a two rings of different diameter smaller holes. The effect is a three tiered display, floral-like and sprinkling. A fuller tall jet in the center is surrounded by two different sprays of different heights. A lovely three level display.
The final height of your Blossom spray nozzle pattern and the diameter of the outer tiers will depend on the pump flow and the size of the nozzle chosen. Ensure that the hose or PVC tubing that connects your pump to the nozzle is a sufficient diameter. Always try to use a pipe with the same diameter as the nozzle to minimize loss of flow from pipe friction.
- Brass construction
- 1" FIPT
The following chart is an approximate detailing of various spray heights with various pump flows at required head rating. Ensure your pump gives the recommended flow at the specified head (height).
| BLOSSOM 3-TIER FOUNTAIN NOZZLES | |||||
|---|---|---|---|---|---|
 | HG/F1 | ||||
| GPM | Head | ||||
| 2' | 10 | 3' | |||
| 3' | 12.5 | 5' | |||
| 4' | 14.2 | 6' | |||
| 5' | 15.8 | 8' | |||
| 6' | 17.5 | 10' | |||
 | 7' | 20 | 11' | ||
| 8' | 23 | 13' | |||
| 9' | 26 | 15' | |||
| 10' | 29 | 17' | |||
| Inlet | |||||
| Thread | FIPT | ||||
| Material | Brass | ||||
