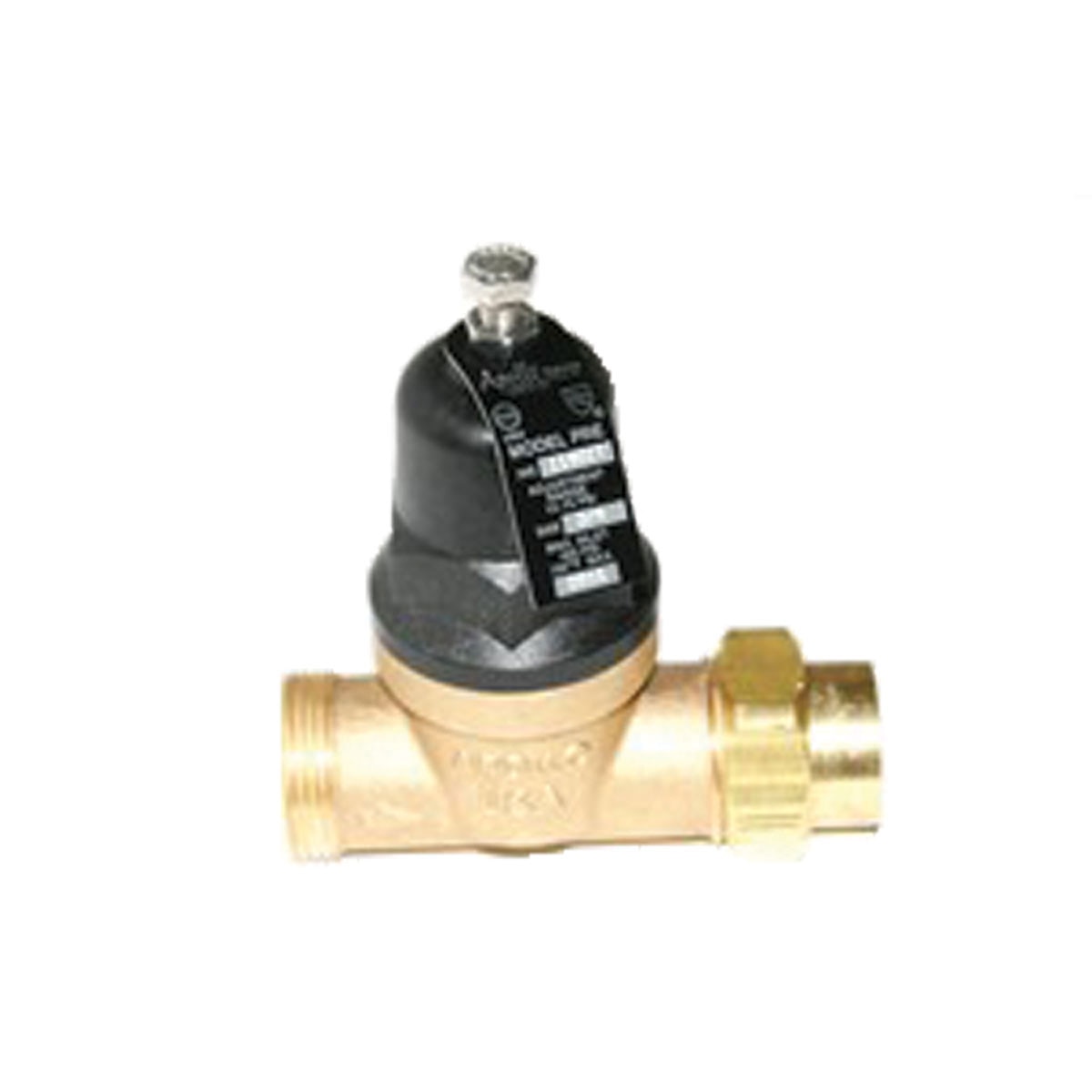

1" FIPT Pressure Reducing Valve
SKU: VA-PRV1
1" FIPT Pressure Reducing Valve
- Regulate high inlet pressures to a lower and constant outlet pressure within a range regardless of water flow
- Factory set at 50 PSI and is field adjustable within the spring range of 25-75 PSI
- Have a stainless steel integral strainer
- Built-in thermal expansion bypass, preventing buildup of excessive system pressure
- Union connection on the inlet side
- CSA approved
- Max operating temp: 180°F (80°C)
- Max Inlet Pressure: 300 PSI
Applications:
- Well Water Systems
- Municipal/Public Water Systems
- Irrigation/ Sprinkler Systems
- Booster Pump Systems
Thread Sealants: Teflon Tape or Paste?
Teflon tape is a quick and clean way to seal threads in most applications. When applying Teflon tape, care must be taken to apply the tape correctly or leaking may still occur. You should wrap the thread 2-3 times around the threads in a counter-clockwise direction so that the tape doesn't bunch up when it is screwed into the pipe. Do not over tighten, as this may cause the tape to become thin or break in spots, while under tightening may allow water through.
For professional, long-term or industrial applications, Teflon paste, although messy and more difficult to apply, will provide a more reliable seal that won't leak if the plastic pipe distorts over time. Teflon paste should be applied to both the male and female threads.
