5/8" Type 6A Reverse Seal

(0) No Reviews yet

In Stock

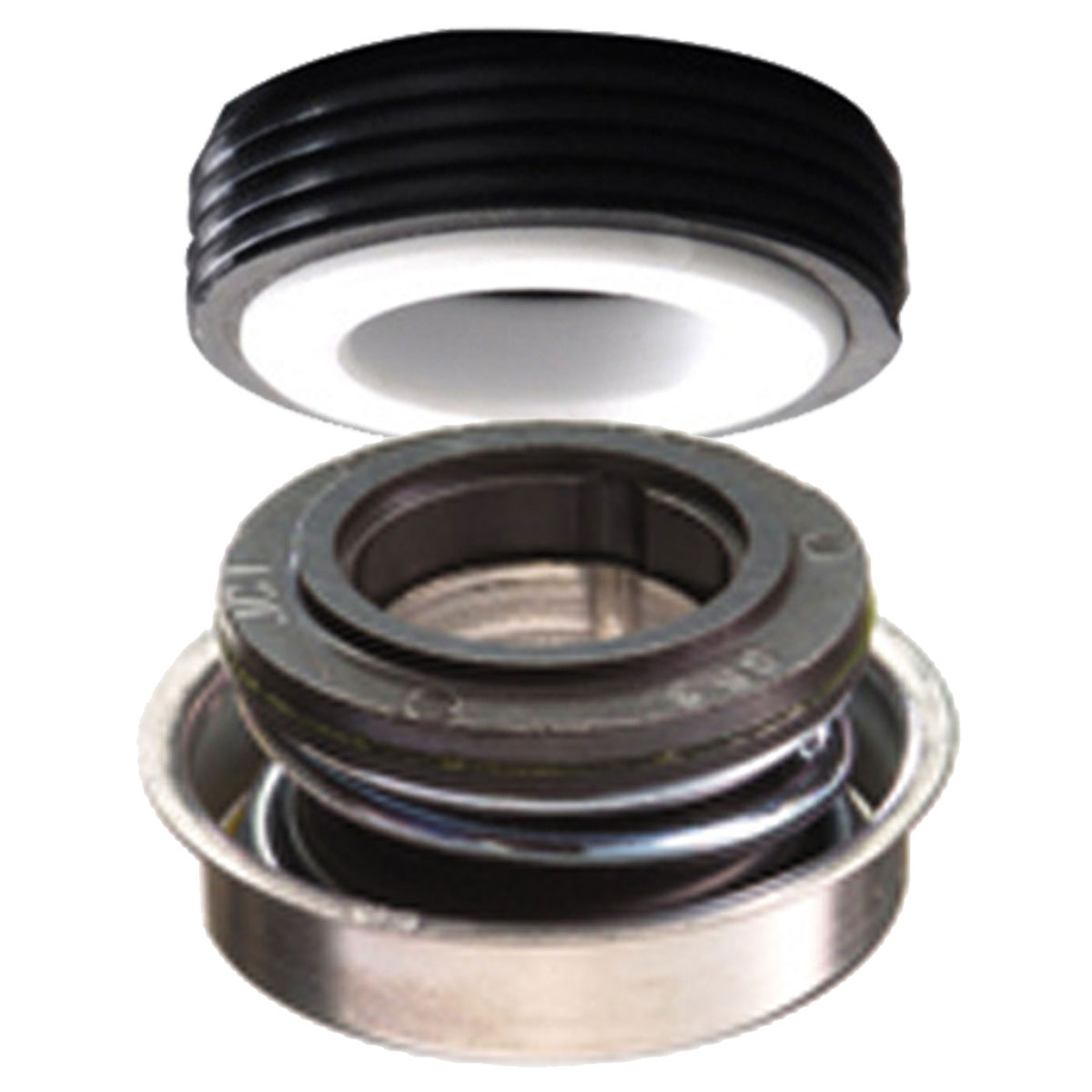

5/8" Type 6A Reverse Seal

The Type 6A is a compact, single-spring, elastomer bellows mechanical seal designed for use in small centrifugal water pumps, deep and shallow-well jet pumps, swimming pool pumps, submersible pumps and wastewater pumps.

  • Precision surface finish optimizes the service life and reliability, designed to meet the broadest range of applications
  • Full convolution elastomer bellows provides maximum flexibility in compensating for shaft movement and wear
  • Coil spring provides consistent face loading through extreme working conditions
  • Seal face torsional movement is restricted by dent and groove positive drive arrangement to minimize torsional stress on the flexible bellows
  • Rotating mating ring allows operation at higher speeds than comparable rotating seal head arrangements
  • Size: 5/8"
  • Type: 6A
  • Temperature: -40°C to 205°C/-40°F to 400°F (depending on materials used)
  • Pressure: ID: 0.5 bar/7.20 psi OD: Up to 5 bar g/75 psig
  • Speed: Up to 10,000 rpm (depending on seal size and face materials) Up to 2500 fpm (13 m/s)
  • End Play/Axial Float Allowance: 0.127mm/0.005" FIM max. Shaft Runout: 0.13mm [0.005" per inch] FIM max.
