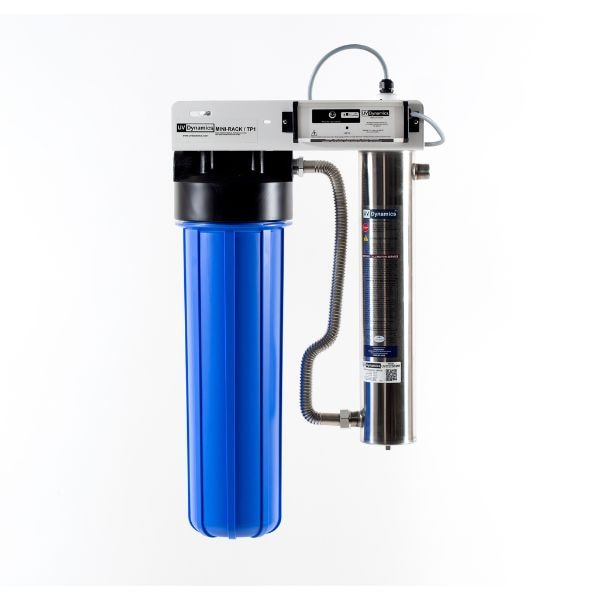

UV Dynamics 10 GPM MR320ETP1-200 w/ 1 x 20" Big Blue Filter Housing

New
SKU: UVD-MR320ETP1200
(0) No Reviews yet
$965.87

In Stock

UV Dynamics 10 GPM MR320ETP1-200 w/ 1 x 10" Big Blue Filter Housing


UV Dynamics Mini-Rack Systems combine up to three Big Blue style filter housings and a UV disinfection system into one simple, clean looking, and integrated product line. Manufactured from rugged 10 gauge HR commercial grade steel and finished in a tough powder coat finish, the system will stay looking good as new for many years.


The Mini-Rack system uses a special variation of our standard disinfection chamber and is equipped with a bottom mounted 1/4" drain plug to facilitate winterization in seasonal applications.


UV Dynamics Mini-Rack systems are quick to install, are easy to service and provide lasting value.


Recommended:
  • UVD/P400467 - Surge Protector. A Surge Protector helps protect your UV power supply from frequent power outages, surges, brown out conditions or electrical storm activity. Recommended for use with all UV Dynamics installations.
  • VA/D10 - 10 GPM Flow Control. Flow controls are used to maintain a defined flow rate regardless of pressure variations of the supply line.



An Eco Fee has been applied to this product. For more info, visit the Light Recycle info page.
The UV Dynamics General Purpose UV Water Sanitizer & UV Water Purifiers Features Include:


  • Water Purification from 8 to 10 gallons per minute [GPM] = 480 to 600 gallons per hour [GPH]
  • Potable & high purity water point of use applications
  • Passivated and polished 304 Stainless Steel reactor chambers
  • manufactured from A249 pressure rated tube
  • Advanced UV Detection System designed to minimize nuisance alarms
  • Nominal 8 to 10 GPM flow rates at 30mJ dose
  • 3/4" porting
  • Audio / visual lamp timer included on UV system
  • Stainless Steel interconnect plumbing
  • UV bulb life of approximately 9,000 hours (approx. 375 days)
  • Annual UV lamp replacement reminder feature
  • Domed quartz sleeve to simplify servicing
  • No tools required for regular servicing
  • Easy-service lamp connector

  • Includes:


  • 320E (10 GPM) standard series UV
  • 1 - 20" big blue filters (cartridge not included)
  • Mini rack - manufactured from rugged 10 gauge HR commercial grade steel and is finished in a tough powder coat finish
  • Connection 3/4" FIPT x 3/4" MIPT
  • Comes fully assembled.
  • UV Dynamics MR320ETP1-200 Parts

    Diag. No.Item No.Description

    LIQ-BB520
    Spun Polypropylene Sediment Cartridge 20" x 4 1/2" x 5 Micron

    UVD-RL400152
    UV Dynamics UV Lamp (UVD 240, 320, 320E)

    UVD-QS400151
    UV Dynamics Quartz Sleeve (UVD 240, 320, 320E)

    UVD-P400235
    UV Dynamics Ballast (UVD 180, 245, 320E) MF-SLE120

    UVD-P400202
    UV Dynamics O-Ring Set A (180, 240, 320, 320E, 400, 400E, 8.40C)

    UVD-P400111
    UV Dynamics Lamp Spring (All Units)
    Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times.
