Well Cap 8" Aluminum Water Tight/Vermin Proof
SKU: PA-WTCLA08
Well Cap 8" Aluminum Water Tight/Vermin Proof

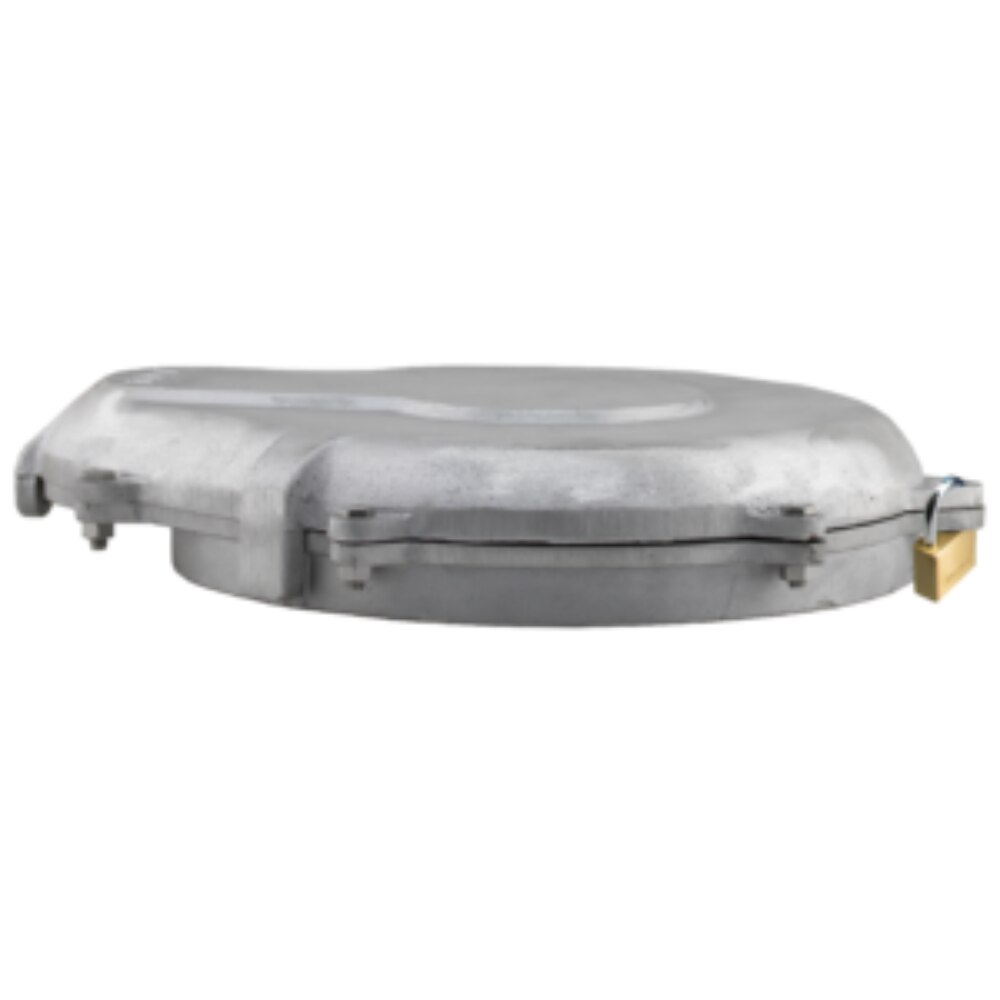

Heavy duty aluminum vermin proof well cap that covers an 8" well to keep contaminants from entering the well from the surface. The O-Ring system ensures a reliable watertight seal between the well casing and retainer ring. A second O-Ring is used to seal the cover and retainer ring, a positive compression seal is achieved by tightening four bolts. Large screened air vents prevent vermin from entering the well. Grounding terminal with bolt provided. Locking feature provides a secure/tamper-proof installation. Lock not included.
Specifications
- For Steel or PVC Well Casings
- Air Vents - (2) ¾"
- Design - Locking
- Well Casing I.D. - 8"
- Well Casing O.D. - 8-5/8"
- Primary Material - Aluminum
- Conduit Connection - 1-1/4" FPT
- Product Model - WTCL Series Watertight Well Caps
Dimensions
- Width - 11.00 in
- Height - 2.70 in
- Length - 12.45 in
- Weight - 5.20 lb
Certifications
- No Lead
