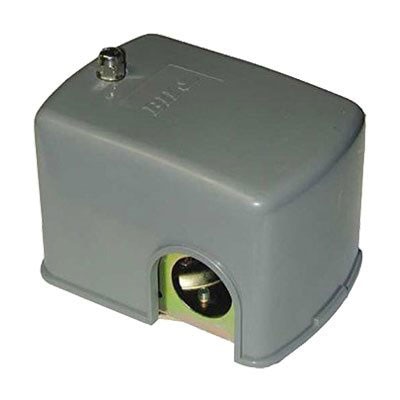

Pump Pressure Switch 30-50 PSI (Maximum 2 HP, 65 PSI)
SKU: PA-PS3050
Pump Pressure Switch 30-50 PSI (Maximum 2 HP, 65 PSI)
This standard duty water pump switch is designed for the control of electrically driven water pumps of all types. This switch is designed to close the contacts (allowing power to the pump) at 30 PSI and open the contacts (stopping power to the pump) at 50 PSI.
- Connection: 1/4" FIPT
- Pressure Setting: On: 30 PSI / Off: 50 PSI
- Cut-In Pressure Range: 5 to 45 PSI
- Cut-Out Pressure Range: 20 to 65 PSI
- Differential Pressure Range: 15 to 30 PSI
- Maximum Pressure: 220
- HP Max at 115V: 1.5 HP
- HP Max at 230V: 2 HP
- Ambient Temperature: -22°F to 158°F (-30°C to 70°C)
- Media Temperature: -22°F to 257°F (-30°C to 125°C)
- Enclosure: Type 1 Indoor use
- Approval: UL/CSA
