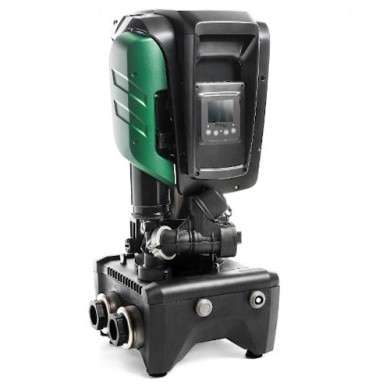

DAB ESYBOX MAX 60/120 - Integrated Water Booster Pumping System
ESYBOX MAX
The ESYBOX Max by DAB Pumps is an integrated water booster pumping system for water pressurization in commercial building services.
Available in two power sizes, it consists of modular elements that allow different configurations to cover the needs of medium/large condominiums and high buildings (even over 14 floors).
Each unit may be used with the single, double or triple connection base and the pumping units; a four-pumps system is available with the additional kit to connect two double bases.
The modular construction allows to assemble the pumping groups directly at the installation site (O.S.A. concept).
The silence and compactness of dimensions allow installation in all rooms, even inhabited.
***EsyDock Sold Separately***
Flow rate: Up to 76 gpm (17,4 m3/h) For single unit
Head: 370 ft (113 m)
Type of pumped liquid: Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral
Liquid temperature: +104°F (40°C)
Maximum ambient temperature: +113°F (45°C)
Maximum inlet pressure: 72psi (5 bar)
Operation pressure: 174psi (12 bar / 1200 kPa)
Constant pressure range: 15-174 (1-12 bar )
Pre-set Pressure: 45psi (3 bar)
Motor protection class: IP X5
Motor insulation class: F
Impeller material: Technopolymer
Single phase power input: 208-240V 50/60Hz
Three phase power input: 380-480V 50/60Hz
Type of installation: Fixed in vertical position
Connection Sizes: 2" FNPT w/ optional 1 1/4" FNPT Reducer Bushings
