1HP 7GPM 3200 SERIES PEO J-CLASS 96340702

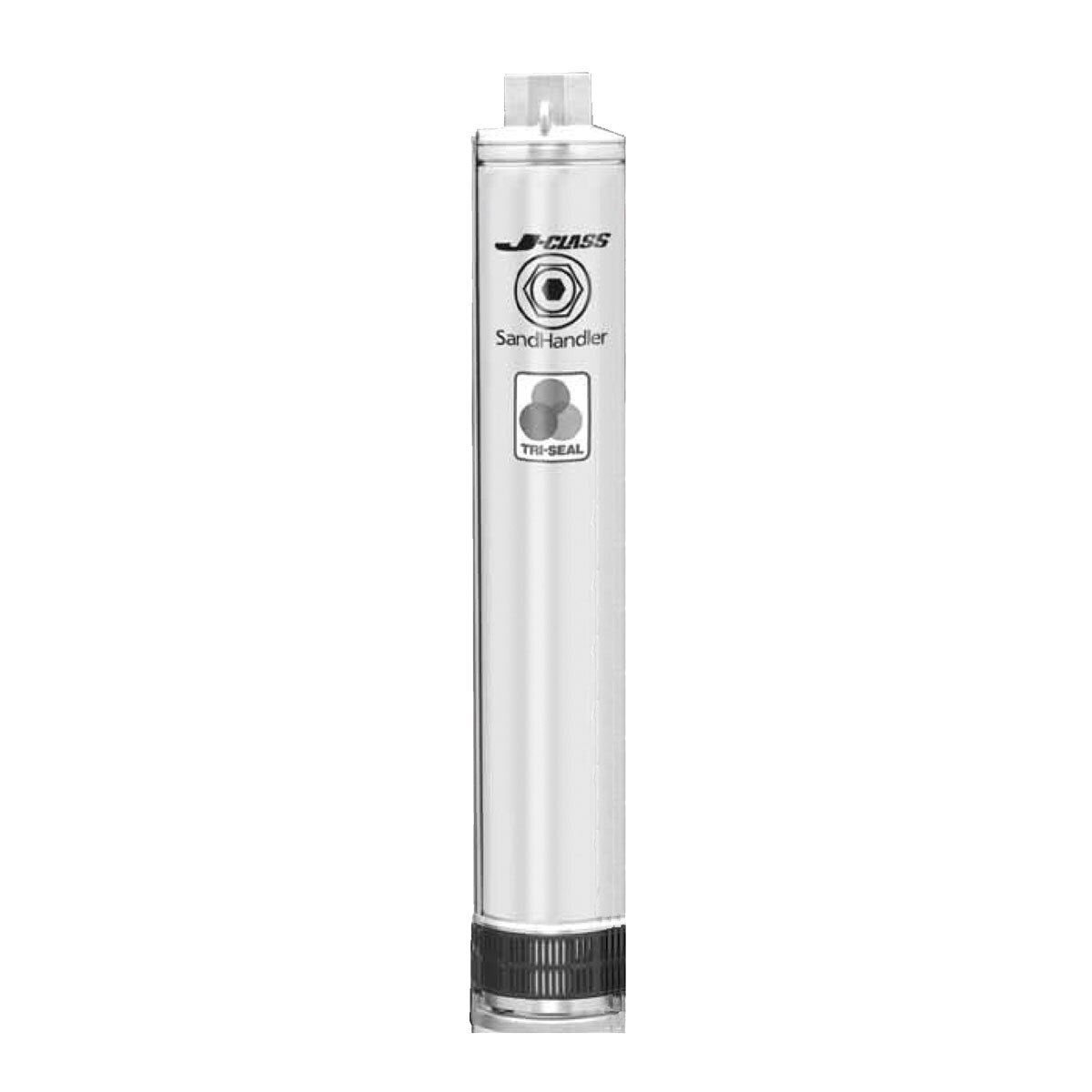

Franklin 1 HP, 7 GPM, 4" Submersible Well Pump (Less Motor) (9634 0702)
This 1 horsepower, 7 GPM pump end has a maximum pressure of 253 PSI (586'). 1 1/4" FIPT discharge, 16 stages, 4" Model 7JR1S4-PE, pump end only.
Franklin Electric's 3200 Series submersible pumps are designed so that all parts of the pump end, including the cable guard, fall within the diameter of Franklin Electric's industry leading submersible 4" motor. This reduced diameter pump end makes it ideal for installations where the well is considered encrusted or tight in comparison to a standard 4" well. The 3200 Series also offers a hydraulic stage design optimized for greater water and pressure output when installed at deeper well depths.
These pumps have an improved hydraulic performance for deeper set depths at all horsepower and flow ratings. The floating stage design allows for maximum efficiency while minimizing the down thrust load that is transferred to the motor. Noryl diffuser and disc with 300 Series stainless steel thrust and eye seal protection provide durability and abrasion resistance. The Celcon impeller provides high performance to increase pressure output while reducing system losses from friction.
Features:
- Removable spring-loaded check valve
- Stainless steel pump intake screen and stainless steel cable guard
- Maximum water temperature: 120°F / 49°C
- Hex rubber bearing and ceramic shaft sleeve
- Improved hydraulic performance for deeper set depths
- Floating stage design allows for maximum efficiency
- Noryl diffuser and disc with 300 Series stainless steel thrust and eye seal protection
Specifications:
- Franklin Electric Item Number: 96340702
- Horsepower: 1
- Flow: 11 GPM @ 100' with 50 PSI discharge pressure.
- Diameter: 4"
- Discharge: 1 1/4"
- Shut Off: 586'
- Stages: 16
- Length: 22.6"
- Weight: 13 lbs
| 7 GPM Series (Based on 50 PSI DISCHARGE PRESSURE, Flow in US GPM) | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | GPM | Depth to Water Level | S/O ft | ||||||||||||||||||||||
| 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 225 | 250 | 275 | 300 | 325 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | |||
| FRA/S5-7 | 10 | 10 | 9 | 8 | 8 | 7 | 5 | 4 | 324' | ||||||||||||||||
| FRA/LP5-7 | 10 | 10 | 9 | 8 | 8 | 7 | 5 | 4 | 324' | ||||||||||||||||
| FRA/S7-7 | 11 | 11 | 11 | 10 | 10 | 9 | 8 | 8 | 7 | 6 | 5 | 421' | |||||||||||||
| FRA/LP7-7 | 11 | 11 | 11 | 10 | 10 | 9 | 8 | 8 | 7 | 6 | 5 | 421' | |||||||||||||
| FRA/S1-7 | 12 | 12 | 11 | 11 | 11 | 10 | 10 | 10 | 9.5 | 9 | 8.5 | 8 | 7 | 6 | 5 | 586' | |||||||||
| FRA/LP1-7 | 12 | 12 | 11 | 11 | 11 | 10 | 10 | 10 | 9.5 | 9 | 8.5 | 8 | 7 | 6 | 5 | 586' | |||||||||
| FRA/LP15-7 | 12 | 12 | 12 | 11 | 10.5 | 10 | 10 | 10 | 9.5 | 9 | 8 | 7 | 6 | 752' | |||||||||||
| FRA/LP2-7 | 12 | 12 | 12 | 11.5 | 11 | 11 | 11 | 10.5 | 10 | 10 | 9 | 9 | 8 | 7 | 6 | 5 | 969' | ||||||||
