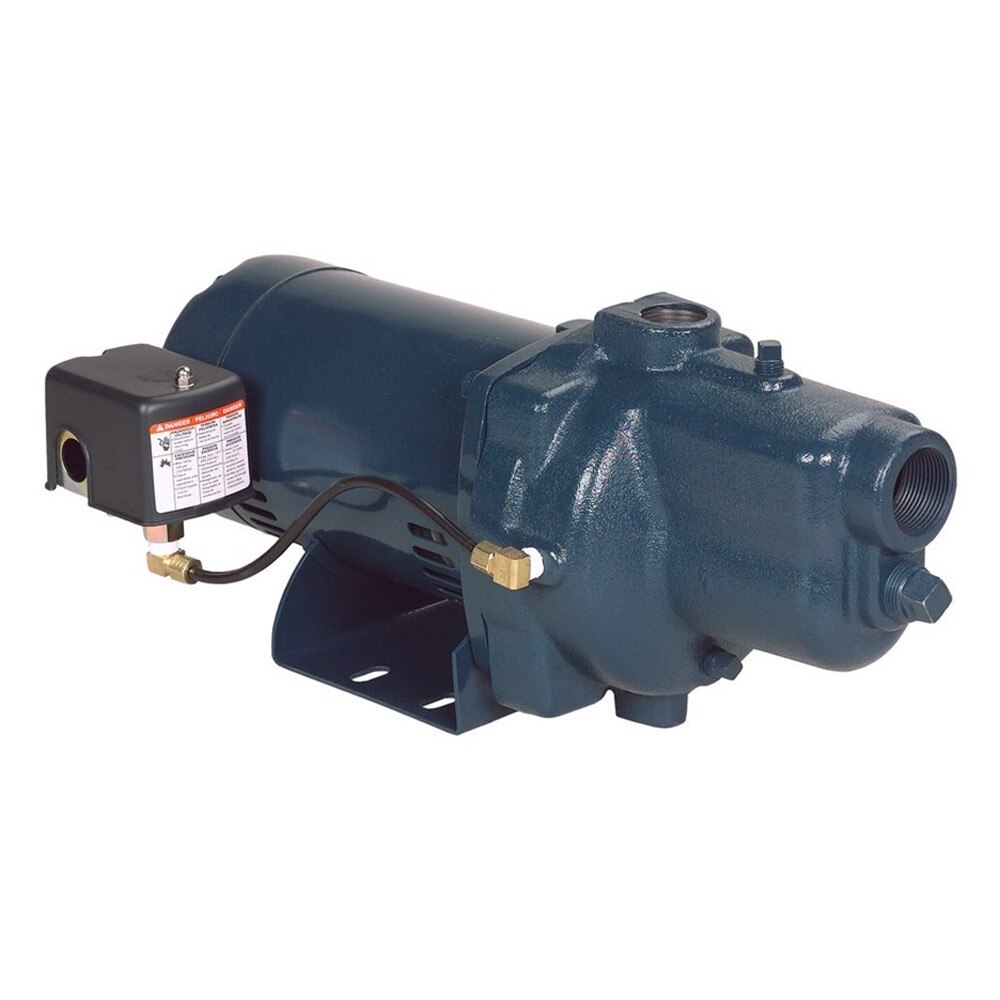

Franklin JVJ05CI (1/2 HP, 115/230v) VersaJet Pump

SKU: FPS-91180005
(0) No Reviews yet
$732.90
QuantityPrice
1 – 1$732.90
2 +$632.05

In Stock

Franklin JVJ05CI (1/2 HP, 115/230v) VersaJet Pump


Built for easy customization, the VersaJet Jet Pump covers a variety of performance needs. With a patent pending nozzle replacement system and a small Allen wrench (included), the internal nozzle can be replaced with any of the three nozzles supplied to provide standard performance, high pressure, or high flow.


This ½ horsepower pump is capable of 8.5 GPM at 40 PSI with a 5’ suction lift.1 ¼” FIPT Suction, 1” FIPT Discharge, 115/230v, no power cord supplied.


  • Patent Pending ”Quick-Change” jet nozzle replacement system
  • Noryl® impeller with stainless steel insert, diffuser, jet nozzle and venture
  • Heavy-duty cast iron case
  • Ceramic mechanical shaft seal
  • Floating stainless steel eye seal
  • A.O. Smith dual voltage motor: 115 or 230v
  • Pressure gauge port (Pressure gauge not included)
  • Pressure switch installed
  • Built-in drain plug
  • Handles water temperatures up to 120°F and shut-off pressures up to 90 PSI
  • 1” FIPT discharge
  • 1.25” FIPT suction
  • UL778 approved for indoor or outdoor use


Manufacturer Pump Model: JVJ05CI

Manufacturer Order Number: 91160005
  • Horsepower: 1/2
  • Flow: 8.5 GPM @ 40PSI, 5' Suction Lift (with installed nozzle)
  • Shut Off: 47-86 PSI (depending on installed nozzle)
  • Voltage: 115/230v
  • Phase: 1
  • Hertz: 60
  • Pressure Switch: On: 30 PSI Off: 50 PSI
  • Suction: 1 1/4"
  • Discharge: 1"
  • Weight: 31 lbs
  • Height: 7.97"
  • Width: 9.18"
  • Length: 17.25"


* Dimensions will vary according to motor manufacturer.
Based on 5' Suction lift, Flow in US GPMShut-Off
Discharge PSI30405060PSI
ModelNozzle




FPS/91180005B10.18.54.92.170
C8.37.66.34.086
A12.15.2--47
FPS/91180007C15.114.19.03.870
D14.714.19.64.873
A18.411.6--47
FPS/91181010B28.227.824.011.666
C27.927.626.815.572
A29.529.219.5-59
