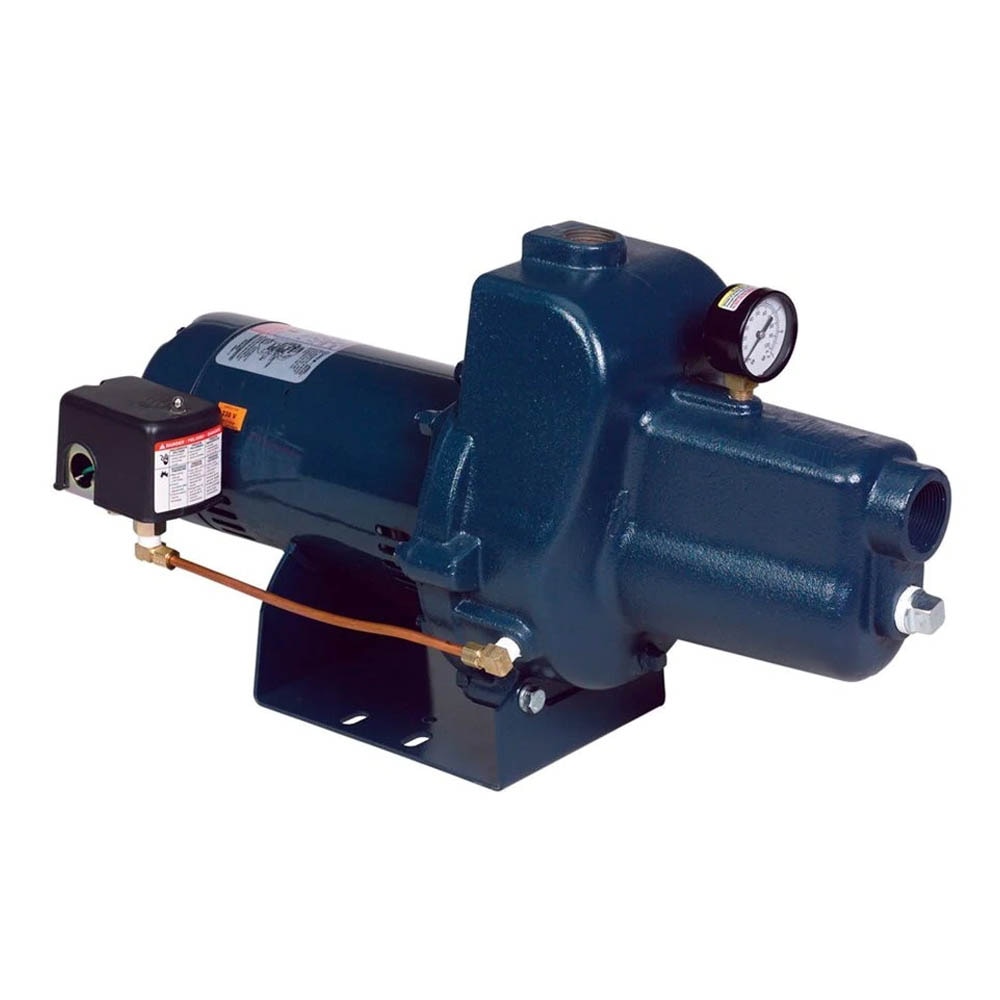

Franklin JVJ1CI-PRO (1 HP, 115/230v) PRO VersaJet Pump
SKU: FRA-91181010
Franklin JVJ1CI-PRO (1 HP, 115/230v) PRO VersaJet Pump
Built for easy customization, this pump covers a variety of performance needs. With our patent pending nozzle replacement system and a small Allen wrench (included), the internal nozzle can be replaced with any of the three nozzles supplied to provide standard performance, high pressure, or high flow.
- Impeller with corrosion-resistant stainless steel insert, diffuser, jet nozzle, and venturi are all molded with Modified PPO.
- Heavy-duty cast iron case ensures optimum durability and long life.
- Floating stainless steel eye seal for maximum performance and efficiency.
- Powered by high quality, industry proven, UL 778 approved indoor/outdoor square flange motors.
- Revolutionary “Quick-Change” jet nozzle replacement system allows easy customization of the pump. Performance can be changed quickly from a high pressure to a high flow set-up without removing the plumbing or opening the case.
- Easily adjustable dual voltage motor can be set to run at either 115 V or 230 V.
- Professional grade 30/50 pressure switch with copper hose is adjustable in both the differential and the range.
- Built-in drain plug for easy winterizing and servicing.
- Handles water temperatures up to 120 °F/49 °C and shut-off pressures up to 90 psi.
- 1" NPT discharge, 1-1/4" NPT suction.
- UL 778 certified for indoor or outdoor use.
- Horsepower: 1
- Voltage: 115/230v
- Phase: 1
- Hertz: 60
- Suction: 1¼”
- Discharge: 1”
Based on 5' Suction lift, Flow in US GPM | Shut-Off PSI | |||||
Discharge PSI | 30 | 40 | 50 | 60 | ||
Model | Nozzle | |||||
JVJ05CI 91180005 | B | 10.1 | 8.5 | 4.9 | 2.1 | 70 |
C | 8.3 | 7.6 | 6.3 | 4.0 | 86 | |
A | 12.1 | 5.2 | - | - | 47 | |
JVJ07CI 91180007 | B | 15.1 | 14.1 | 9.0 | 3.8 | 70 |
C | 14.7 | 14.1 | 9.6 | 4.8 | 73 | |
A | 18.4 | 11.6 | - | - | 47 | |
JVJ1CI 91180010 | B | 20.7 | 20.4 | 12.8 | 3.9 | 64 |
C | 19.4 | 19.1 | 14.6 | 7.7 | 71 | |
A | 22.7 | 20.2 | 7.6 | 0 | 54 | |
JVJ1CI-PRO 91181010 | B | 28.2 | 27.8 | 24.0 | 11.6 | 66 |
C | 27.9 | 27.6 | 26.8 | 15.5 | 72 | |
A | 29.5 | 29.2 | 19.5 | - | 59 |
