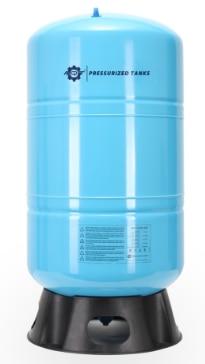

Hydronix 20 Gallon Vertical Pressure Tank
SKU: HYD-AQT20
This item is not eligible for free shipping. Our shipping specialists will contact you with a detailed quote after ordering.
The AQT Hydropneumatic Pressurized Tanks are an idea product for well applications and for applications where you want to minimize pump start-ups every time you use water.
TANK SPECIFICATIONS
- Pre-Charge - 30 PSI (2 bar)
- Max. Working Temp - 200 °F (93 °F)
- Max. Working Pressure - 150 PSI (10 Bar)
- Tank Connection: 1" NPT
- Tank Volume - 20 gal
- Maximum Acceptance - 13 gal
- Tank Diameter - 17"
- Tank Height - 27"
- Tank Weight - 32.5 lbs
CONSTRUCTION MATERIALS
- Shell - Cold Rolled Carbon Steel
- Coating - Triple Grade Enamel
- Liner - FDA Grade Polypropylene
- Diaphragm - Heavy-Duty Butyl Rubber
- Connections - 304 Stainless Steel
5 Year Limited Warranty
