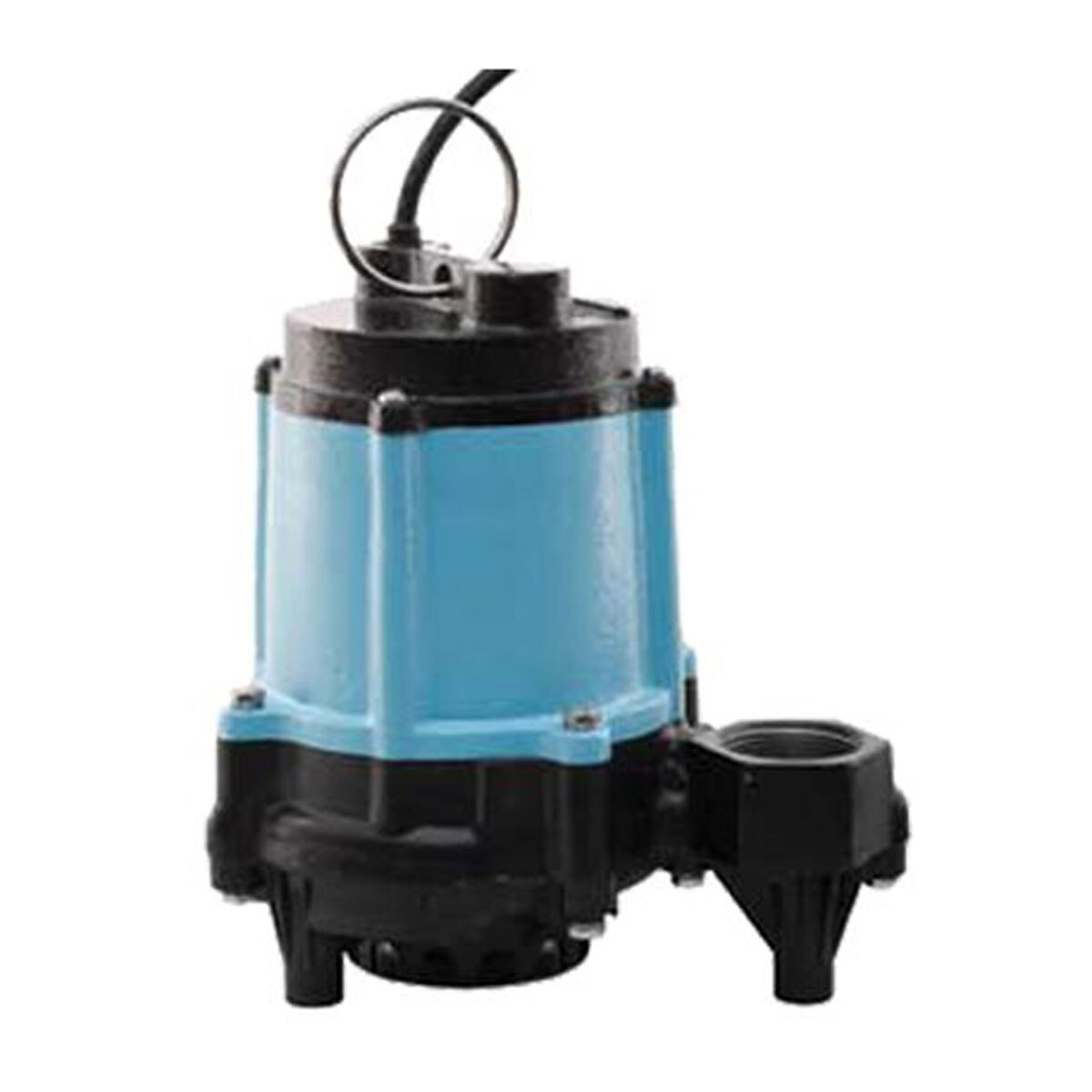

Little Giant 10EC 1/2 HP Manual Effluent Pump (20' Cord)
SKU: LG-510800
Little Giant 10EC 1/2 HP Manual Effluent Pump (20' Cord)
Little Giant 10EC Series pumps feature 1/2 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Touting a full-load rating of only 6.5 amps the 10EC produces 67 gpm @ 5 ft. of head and a maximum shut off of 36'. In addition to a stainless intake plate, the 10EC also features a cast iron cover.
Features:- 1/2 HP Permanent Split Capacitor (PSC) motor with thermal overload protection
- Energy saving low amp draw
- Cooler running motor which extends pump life
- Epoxy coated cast iron motor housing
- Plastic base
- Vortex impeller
- Solids handling up to 1/2 inch diameter
Flow in US GPM @ Total Head in Feet | Shut-off Head | Full Load Amps 115v | |||||
---|---|---|---|---|---|---|---|
5' | 10' | 15' | 20' | 30' | |||
LG/506802 | 53 | 50 | 42 | 34 | - | 28' | 5.0 |
LG/510800 | 67 | 57 | 52 | 47 | 28 | 36' | 6.5 |
