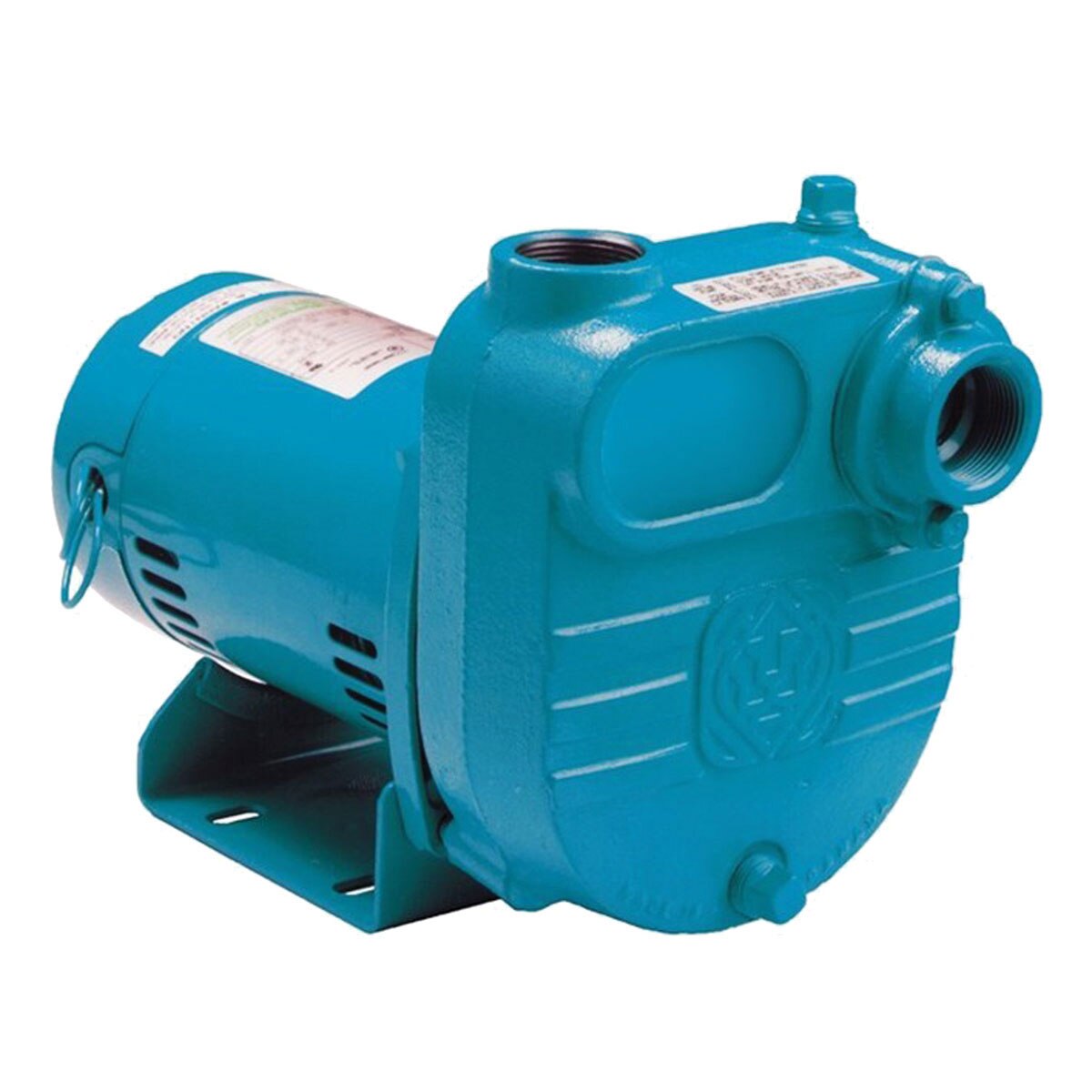

Little Giant FBES-50-S 1/2 HP Self Priming Pump
SKU: LG-621815
Little Giant FBES-50-S 1/2 HP Self Priming Pump (621815)
This centrifugal, self-priming utility/effluent pumps is designed for installations with septic tanks in areas with drainage problems. Constructed of durable cast iron and rated for continuous duty. Ideal for pumping out flooded basements, livestock watering, flood irrigation and general dewatering.
This 1/2 horsepower pump has a maximum flow of 45 GPM and a maximum head of 50' (21 PSI). 1 1/4” FIPT suction and discharge, 115/230v.
- 1/2 HP higher than NEMA service factor dual compartment motor
- Thermal overload protection
- Designed for continuous duty
- Cast iron pump casing
- Built in check valve
- 4 vane, semi-open gray cast iron impeller with "blind hole" for motor shaft protection
- Carbon/ceramic 5/8" mechanical seal
- CSA listed
- Horsepower: 1/2
- Flow: 45 GPM @ 20' Head
- Shut Off: 50
- Voltage: 115v/230v
- Hertz: 60
- Full Load Amps: 12.4/6.2
- Suction: 1 ¼”
- Discharge: 1 ¼”
- Weight: 42 lbs
- Height: 10”
- Width: 7.6”
- Length: 15.3”
| Flow in US GPM | ||||||||
|---|---|---|---|---|---|---|---|---|
| 20' | 30' | 40' | 50' | 60' | 70' | 80' | 90' | |
| LG/621815 | 45 | 31 | 16 | |||||
| LG/621825 | 58 | 44 | 29 | 10 | ||||
| FPS/92925005 | 55 | 46 | 32 | 10 | ||||
| FPS/92925010 | 80 | 70 | 60 | 42 | 20 | |||
| FPS/92925015 | 102 | 78 | 55 | 35 | 8 | |||
| FPS/92925020 | 126 | 103 | 80 | 58 | 32 | 10 | ||
| FPS/92925030 | 148 | 142 | 130 | 120 | 99 | 70 | 35 | 5 |
