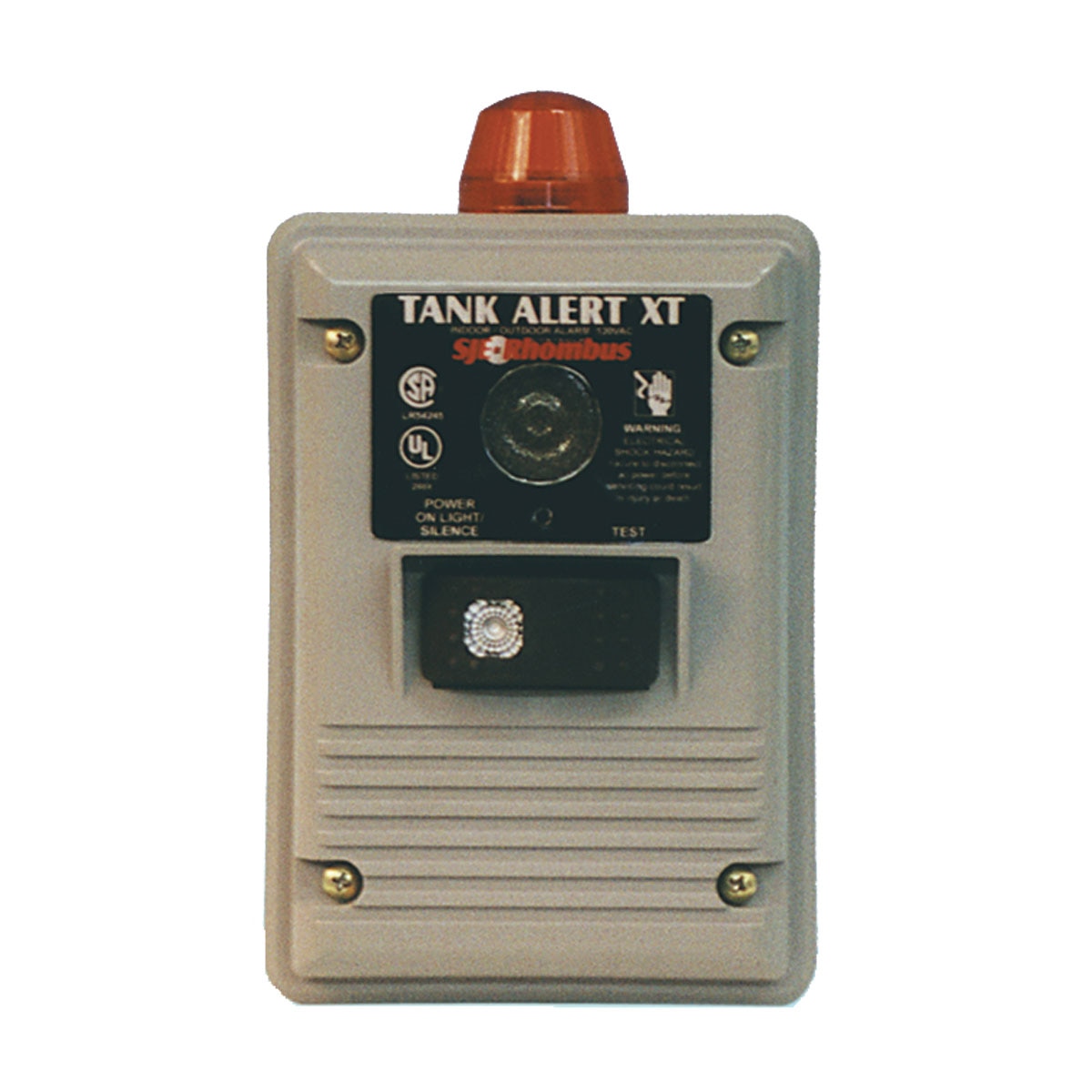

SJE Tank Alert XT High/Low Water Alarm Outdoor (Float Required)
SKU: SJE-A1005836
SJE Tank Alert XT High/Low Water Alarm Outdoor (Float Required)
Tank Alert® XT indoor/outdoor alarm monitors liquid levels in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural, and other non-potable water applications.
The Tank Alert® XT can serve as a high or low level alarm depending on the float switch model used. The alarm horn sounds and the red beacon illuminates when a potentially threatening liquid level condition occurs. A "power on" light on the switch indicates power to the alarm panel.
The Tank Alert® XT indoor/outdoor alarm meets NEC standards for junction boxes.
Features:
- Rain-tight outdoor enclosure
- Automatic alarm reset, horn silence switch, alarm test switch
- UL Listed; CSA Certified
- Voltage:: 120 VAC, 50/60 Hz
- Alarm Enclosure: 6.5 x 4.5 x 3.0 inch (16.51 x 11.43 x 7.62 cm), indoor-outdoor, weatherproof, thermoplastic meets Type 3R water-tight standard
- Alarm Horn: 85 decibels at 10 feet (3 meters), meets Type 3R water-tight standard as installed by factory
- Alarm Beacon: UL Listed, Type 4x beacon assembly
- Test/Silence Switch: certified to IP66 and IP68 standards
- Auxiliary Alarm Contacts (optional): 120 VAC, 5 amps max., 50/60 Hz
- Pre-mounted Terminal Block (optional): 20 amps, 120/230 VAC
- Power Cord (optional): 6 foot (1.8 meter) cord with 120 VAC plug
- Float Switch: SJE SignalMaster® control switch with mounting clamp
- Cable: 15 feet (4.57 meters), flexible 18 gauge, 2 conductor (UL) SJOW, water-resistant (CPE)
- Float: 2.74 inch diameter x 4.83 inch long (7 cm x 12.3 cm), high impact, corrosion resistant polypropylene housing for use in sewage and non-potable water up to 140°F (60°C)
- Maximum Water Depth: 30 feet (9 meters), 13 psi
- Electrical: 5 amps, 125 VAC/250 VAC, 50/60 Hz
