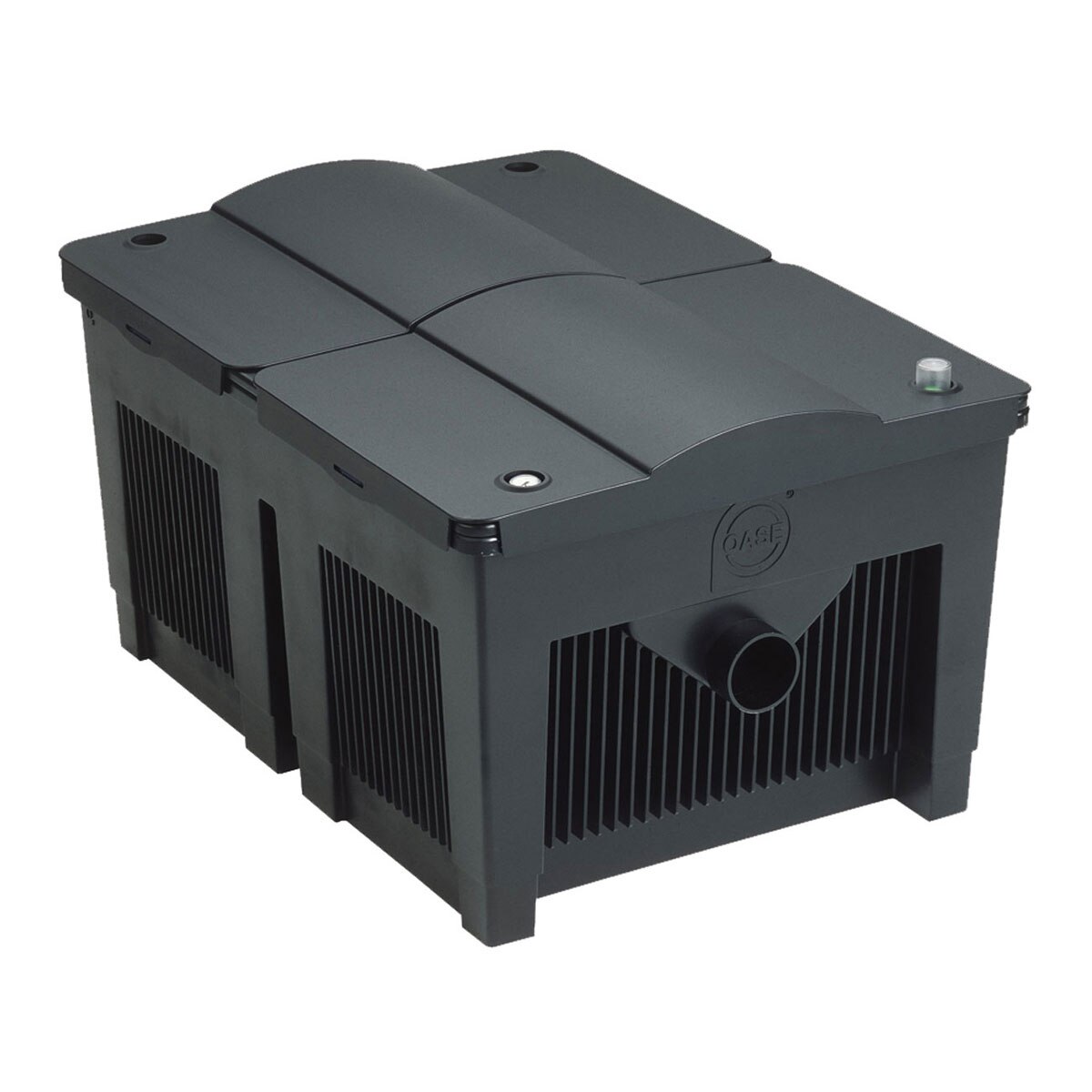

OASE BioSmart 10000 Flow-Through Filter
SKU: OAS-56930
OASE BioSmart 10000 Flow-Through Filter
The BioSmart 10000 is a multi-stage mechanical and biological filtration system in a compact package, designed for medium ponds or for ponds with moderate biological load (some fish).
During biological filtration, the water is channeled through a series of filter foams that create a special environment by allowing the settling of beneficial bacteria. During this stage, harmful ammonia and nitrites are converted to nitrates, which support plant life in the pond. BioSmart 10000 features a built-in cleaning mechanism that does not require removal of the filter foams during maintenance.
- Suitable for ponds up to 36 m°
- Additional oxygen enrichment through special water channelling
- Cleaning handles for convenient maintenance
- Including displays for pollutant level and water temperature
- Sludge drain for easy removal of coarse debris
- Easy to conceal; the filter can be recessed into the ground to 1/3 of its height
- Optimally matched to the OASE AquaMax filter and watercourse pumps
- Limited Warranty: 3 years
- Effective Pond Size: up to 10000 gal. (without fish)
- Recommended Pump Capacity: 1600 gph (min) to 3000 gph (max)
- Intake Connection: 1 1/2" threaded female (2 x)
- Tubing Connector (intake): 1", 1 1/4", 1 1/2"
- Outlet Connection: 3" (via Adapter Ring)
- Sludge Drain Connection: 2"

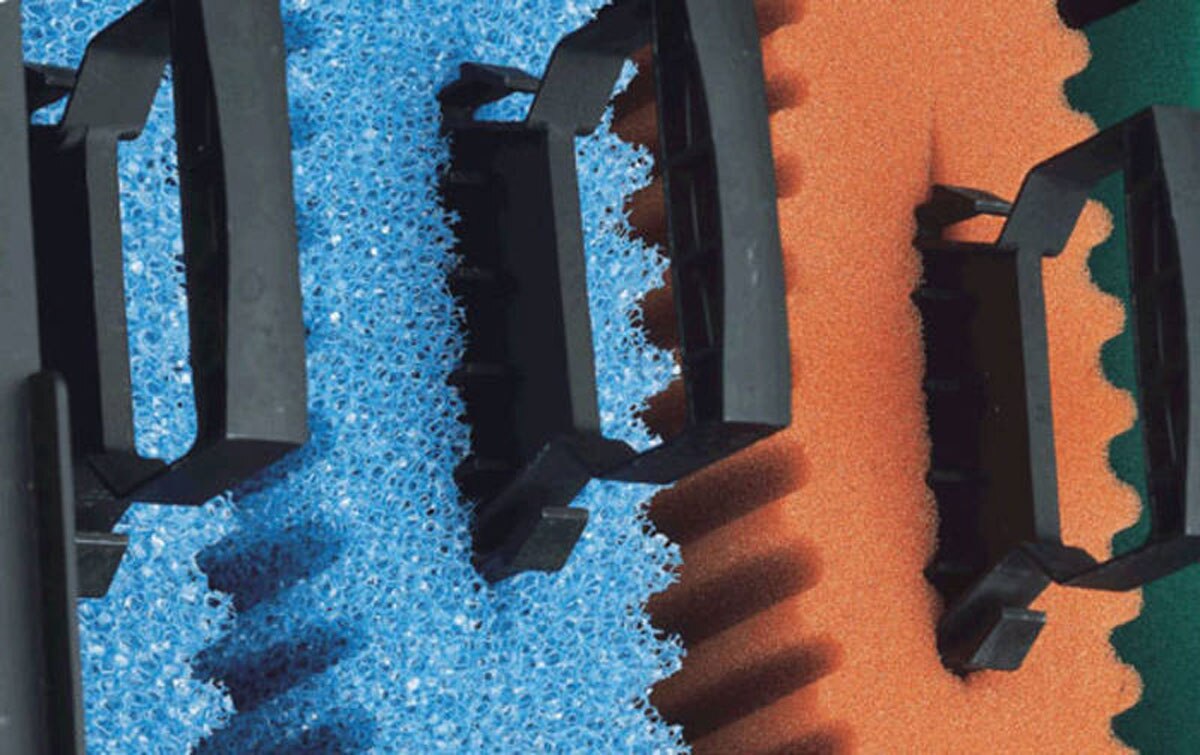

- Filter Foams: 9 (4x Red, 4x Blue, 1x Green)
- Dimensions (L x W x H): 30" x 22" x 16"
- Limited Warranty: 3 Years

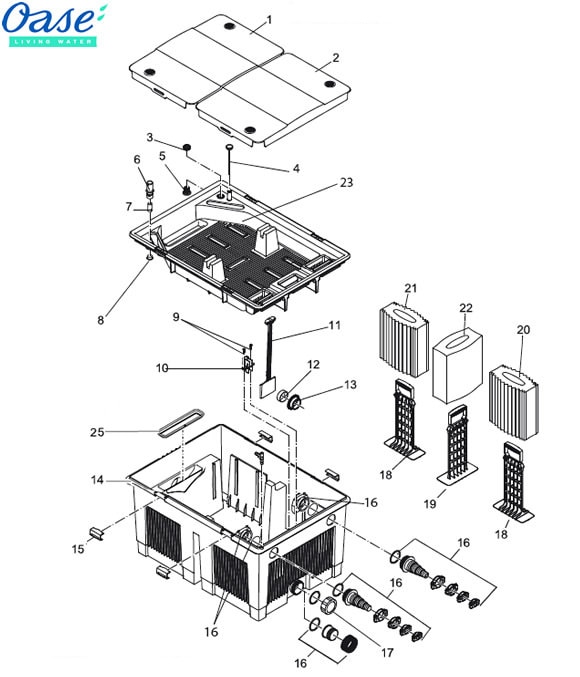

OASE BioSmart 10000 Flow-Through Filter Replacement Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| 2 | OAS-P26208 | OASE Thermometer (OASE # 26970) (Biotec 5.1, 10.1 & BioSmart 5000, 10000) |
| 10 | OAS-P35089 | OASE Drain Valve Guide (Biotec 5.1, 10.1 & BioSmart 5000, 10000) |
| 11 | OAS-P35085 | OASE Gate Valve Plate / Handle (Biotec 5.1, 10.1 & BioSmart 5000, 10000) |
| 15 | OAS-P35086 | OASE Lid Clamp (Biotec 5.1, 10.1 & BioSmart 5000, 10000 |
| 16 | OAS-P35290 | OASE Connection Kit (Biotec 5.1, 10.1 & BioSmart 5000, 10000) |
| 18 | OAS-P35047 | OASE Foam Holders (Red & Blue Foam) (Biotec 5.1, 10.1 & BioSmart 5000, 10000) |
| 19 | OAS-P35082 | OASE Foam Holder (Green Foam) (Biotec 5.1, 10.1 & BioSmart 5000, 10000) |
| 21 | OAS-F40974 | OASE Red Filter Foam (4 required) (BioSmart 5000 & 10000) |
| 22 | OAS-F40976 | OASE Green Filter Foam (1 required) (BioSmart 5000 & 10000) |
| 23 | OAS-F40975 | OASE Blue Filter Foam (4 required) (BioSmart 5000 & 10000) |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
