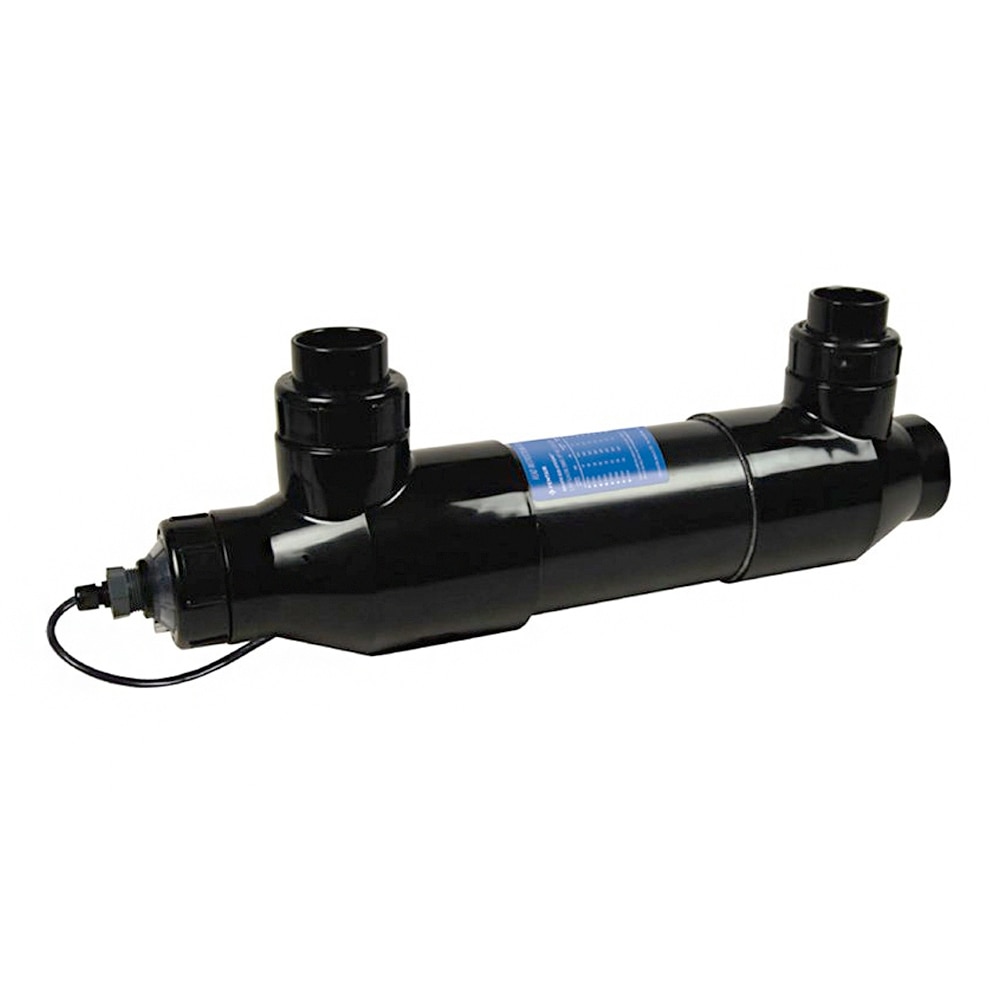

Pentair 80 W High Output Smart UV
SKU: PAE-E80S
Pentair 80 W High Output Smart UV
SMART HO (High Output) UV Sterilizers demonstrate our ability to combine powerful UV output performance in a space saving package. Our UVs feature GPH/T6 high output hard-quartz glass lamps that produce approximately twice the output watts when compared to standard low-pressure lamps, offering 13 months of continual operation until they reach their end of useful life (80 percent efficient).
The high output performance from these GPH/T6 lamps allows us to increase the UV body diameter to 5", raising the recommended water flow rate. Each exposure chamber is constructed of heavy wall UV resistant plastic and offers a lifetime warranty against failure of the plastic due to UV light.
SMART HO UVs are easily maintained, featuring our easy-to-remove power assembly that features an on the cord power supply, protecting it from water damage due to quartz sleeve failure.
An Eco Fee has been applied to this product. For more info, visit the Light Recycle info page.
| Item # | Watts | Maximum Pond Size | Flow Rate Min./Max. | Lgth x Dia (inches) | Inlet | Cord |
|---|---|---|---|---|---|---|
| PAE/E80S | 80 | 10,800 Gal | 2,700 GPH/3,600 GPH | 43" x 5.75" | 2" Union | 16 ft. |
| PAE/E120S | 120 | 13,800 Gal | 3,800 GPH/4,600 GPH | 58" x 5.75" | 2" Union | 16 ft. |
| PAE/E150S | 150 | 19,000 Gal | 5,040 GPH/6,360 GPH | 70" x 5.75" | 2" Union | 16 ft. |
| ˜˜Smart HO ML UV (Multi Lamp UV) | ||||||
| PAE/0250240 | 240 | 21,800 Gal | 5,820 GPH/7,260 GPH | 66" x 11" | 3" Union | 16 ft. |
| PAE/0250300 | 300 | 36,000 Gal | 9,600 GPH/12,000 GPH | 80" x 11" | 3" Union | 16 ft. |

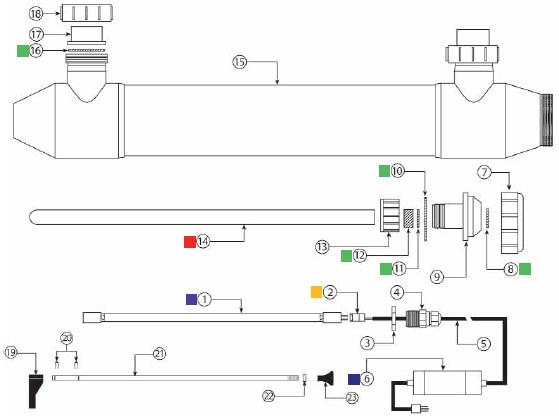

Emperor Aquatics 80w High Output UV Replacement Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| 1 | PAE-FL2997IP | UV Lamp 4 Prong, 80 Watt, 33.5" <=" td="> |
| 2 | PAE-P7091S | Emperor 4 Pin Lamp Connector (All Units) |
| 6 | PAE-20105MV | Emperor Power Supply (80 / 120 / 150 Watt SMART HO UV) |
| 14 | PAE-FLQZ176IP | Emperor Quartz Sleeve (80w High Output, 240w High Output Multi Lamp) |
| N/S | PAE-P203752 | Emperor Service Kit (80/120/150w High Output) |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
| (N/S - Not Shown) | ||
