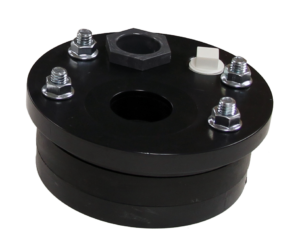

Well Seal 5" x 1" Plastic
SKU: *PA-WSP5010
Well Seal 5" x 1" Plastic
This plastic well seal rests on top of a 5" well and allows a 1" drop pipe, 1/2" vent and 1" conduit to pass through the seal. Four zinc plated bolts compress the 3/4" thick Buna N rubber gasket sealing the well, drop pipe, gasket and vent. Includes a grommet kit which has both round and slotted gaskets for twisted or parallel pump cables.
Specifications
- For Submersible Pump Applications
- Vent Size - ½"
- Design - Single Hole
- Drop Pipe Size - 1"
- Well Casing I.D. - 5"
- Primary Material - ABS
- Conduit Connection - 1" FPT
- Product Model - Plastic Well Seals
Dimensions
- Width - 5.50 in
- Height - 2.75 in
- Length - 5.55 in
- Weight - 2.50 lb
Certifications
- No Lead
