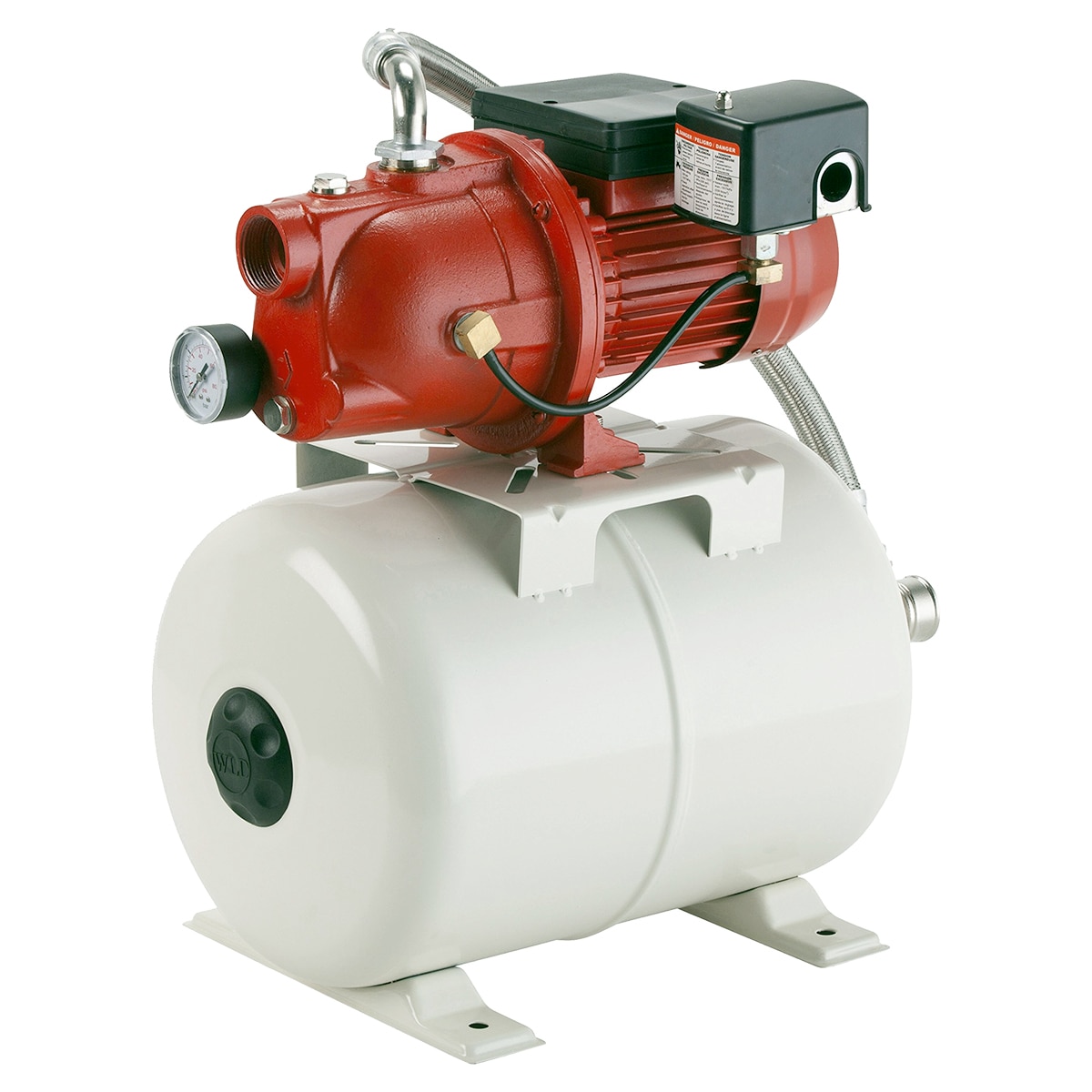

Red Lion 1/2 HP Shallow Well Jet Pump & Tank System

SKU: RL-97080503

(0) No Reviews yet

Red Lion 1/2 HP 115/230 Volt 5.8 Gal. Shallow Well Jet Pump & Tank System

Ideal for the supply of fresh water to rural homes, farms, and cabins where compact system size and ease of installation are most important.

Model: RL-SWJ50/RL6H

Includes:

Qty 1 - Shallow well jet pump (RL-SWJ Series)

Qty 1 - 5.8 Gallon pre-charged steel tank

Qty 1 - Pressure gauge

Features:

Jet pump and pre-charged pressure tank are factory assembled and ready to install.

Pump casing is made of rugged cast iron.

Low profile, compact horizontal pressure tank.

Tank has a high grade diaphragm water chamber.

30/50 pressure switch.

Can be set for use with 115 Volts or 230 Volts.

Back

Brand: Red Lion

Mfg. Number: 97080503

Model Number: RL-SWJ50/RL6H

Application: Rural Homes/Farms

Gallons: 5.8 Gallons

Voltage: 115/230 Volts

Phase: 1

Frequency: 60 Hz

Current: 8.4 A @ 115 V / 4.2 A @ 230 V

Intake: 1-1/4" FNPT

Pump Casing and Base: Cast Iron

Flow @ 5 ft (30 psi): 12.6 GPM

Discharge Connection: 1" FNPT

Flow @ 5 ft (40 psi): 7.3 GPM

Flow @ 5 ft (50 psi): 3.4 GPM

Flow @ 5 ft (60 psi): 1 GPM

Maximum Flow: 12.6 GPM

Pressure Gauge Port: 1/8" NPT

Maximum Head: 148 ft

Maximum Pressure: 64 PSI

No. of Pipes @ 5 ft: 1 Pipe

Length: 2.85"

Width: 14.5"

Height: 25.25"
