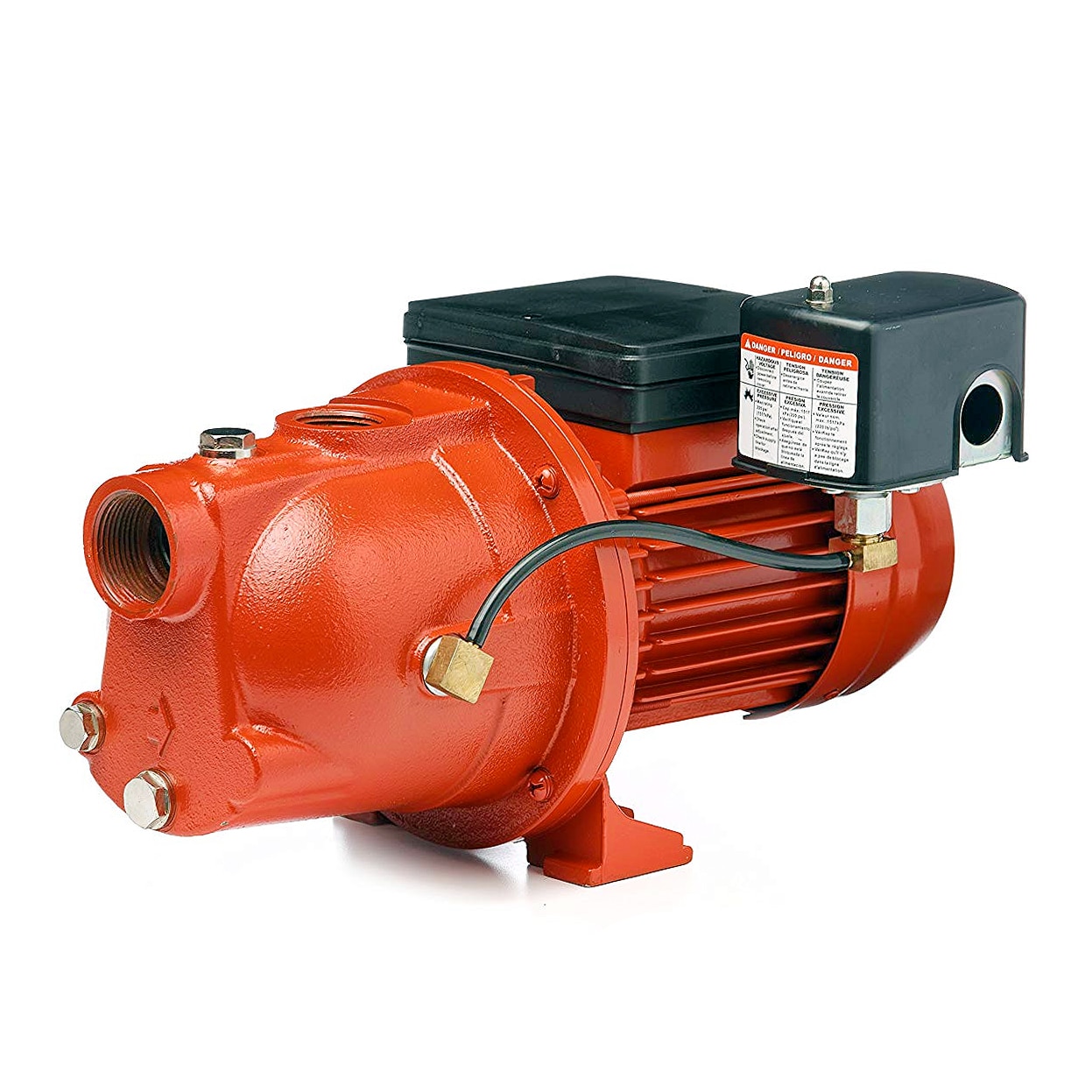

Red Lion 1 HP Cast Iron Shallow Well Jet Pump
SKU: *RL-97081001
Red Lion 1 HP Cast Iron Shallow Well Jet Pump
Ideal for the supply of fresh water to rural homes, farms, and cabins that have suction lifts down to 25'.
Features & Benefits
- Shallow well jet pump Ideal for use in shallow wells less than 25' deep
- Heavy-duty cast iron construction For years of service and reliability
- Includes factory pre-set 30/50 pressure switch Produces up to 50 psi with automatic shut-off
- 115/230 Volt heavy-duty motor TEFC design with simple connection to existing power source
| AMPS | INTAKE | DISCHARGE | PRESSURE GAUGE PORT | SUCTION LIFT | DISCHARGE PRESSURE (PSI) | MAX PRESSURE | MAX HEAD | ||||
| 20 | 30 | 40 | 50 | 60 | |||||||
| GALLONS PER MINUTE | |||||||||||
| 13.2A @ 115V 6.6A @ 230V | 1-1/4”FNPT | 1" FNPT | 1/8" NPT | 5' | 17.3 | 17 | 12.9 | 8.5 | 4.4 | 74 | 172' |
| 15' | 12.7 | 12.4 | 10.9 | 7 | 2.7 | 72 | 166' | ||||
| 25' | 6.7 | 6.5 | 6.6 | 5.2 | 2 | 68 | 156' | ||||
