SJE 50SGMNO Narrow Angle Panel Float Switch (50' Cord)

Mechanically-Activated, Narrow-Angle Control Switch

Control switches accurately monitor liquid levels to activate pump control panels and alarms. The SJE SignalMaster® control switch is used to accurately monitor high (normally open) or low (normally closed) liquid levels to activate pump control panels and alarms in water and sewage applications.

Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal. Normally open models have a yellow colored cap for easy identification. This switch is not sensitive to rotation.

Features:

• Mechanically-activated, snap action contacts.
• High impact, corrosion resistant, polypropylene float housing.
• Control differential of 4 cm (1.5 inches) above or below horizontal.

OPTIONS

• CE certified unit available upon request.
• For normally open (high level) applications or normally closed (low level) applications.
• In standard cable lengths of 10, 15, 20, or 30 feet and 3, 5, 6, or 10 meters (longer lengths available) With two mounting options that allow for flexibility in installation:

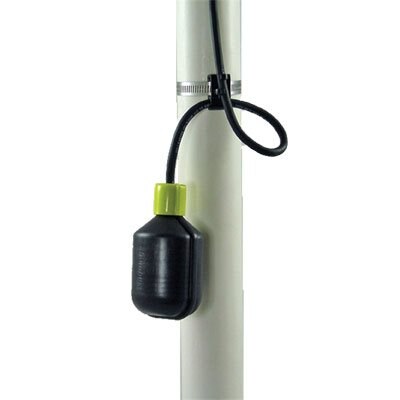

• Mounting Clamp: for applications where the switch can be attached to a discharge pipe or similar mounting device.
• Externally Weighted: for applications where the switch can be suspended from above.

This narrow-angle sensing device is used to accurately monitor liquid levels in:

• Water
• Sewage applications
