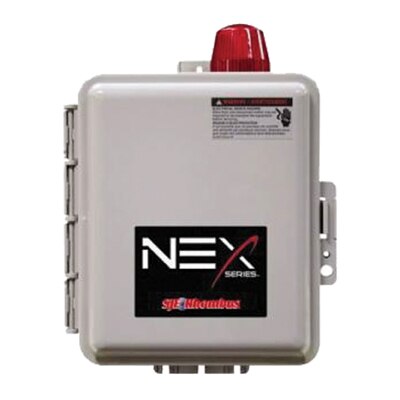

SJE NEX Series Simplex Panel

SJE NEX Series Simplex Panel

Compact Single Phase Simplex Control Panel

• Compact 8 x 6 x 4? enclosure design is an ideal solution for residential applications
• Universal pump voltage and control/alarm power; one panel handles three voltages (120/208/240V)
• Integral mounting tabs for easy installation
• Integral pad lockable latch for added safety

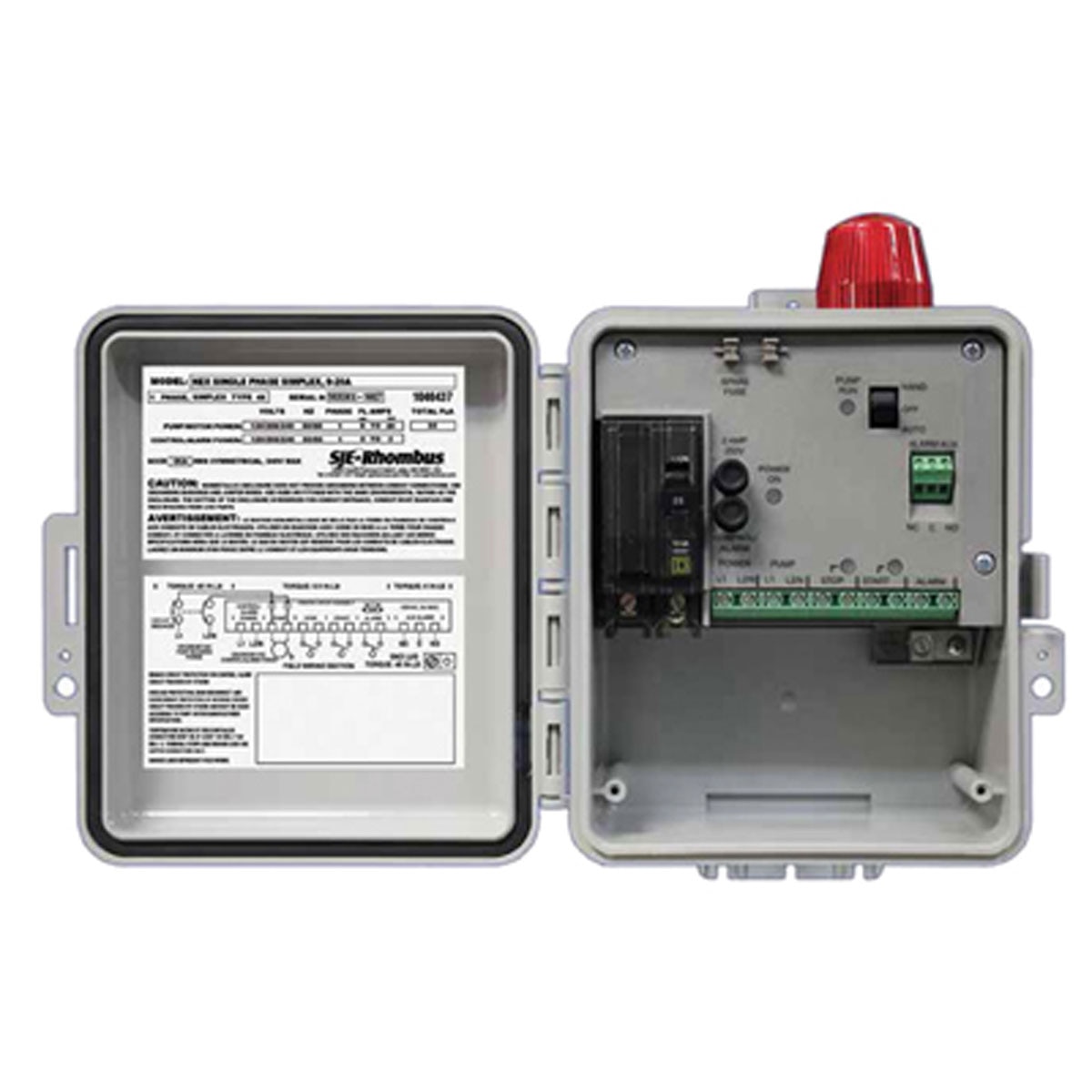

• Innovative design of internal components allows for quick, simple installation

Function

The NEX Series panel is designed to control one single phase pump in water and wastewater applications. Two control switches activate a power relay to turn the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audible/visual alarm system. The compact design (8 x 6 x 4?) is ideal for residential applications. Universal pump voltage and control/alarm power allow the NEX Series panel to handle three voltages (120/208/240V). The innovative internal design of components and integral mounting tabs make installation quick and simple.
