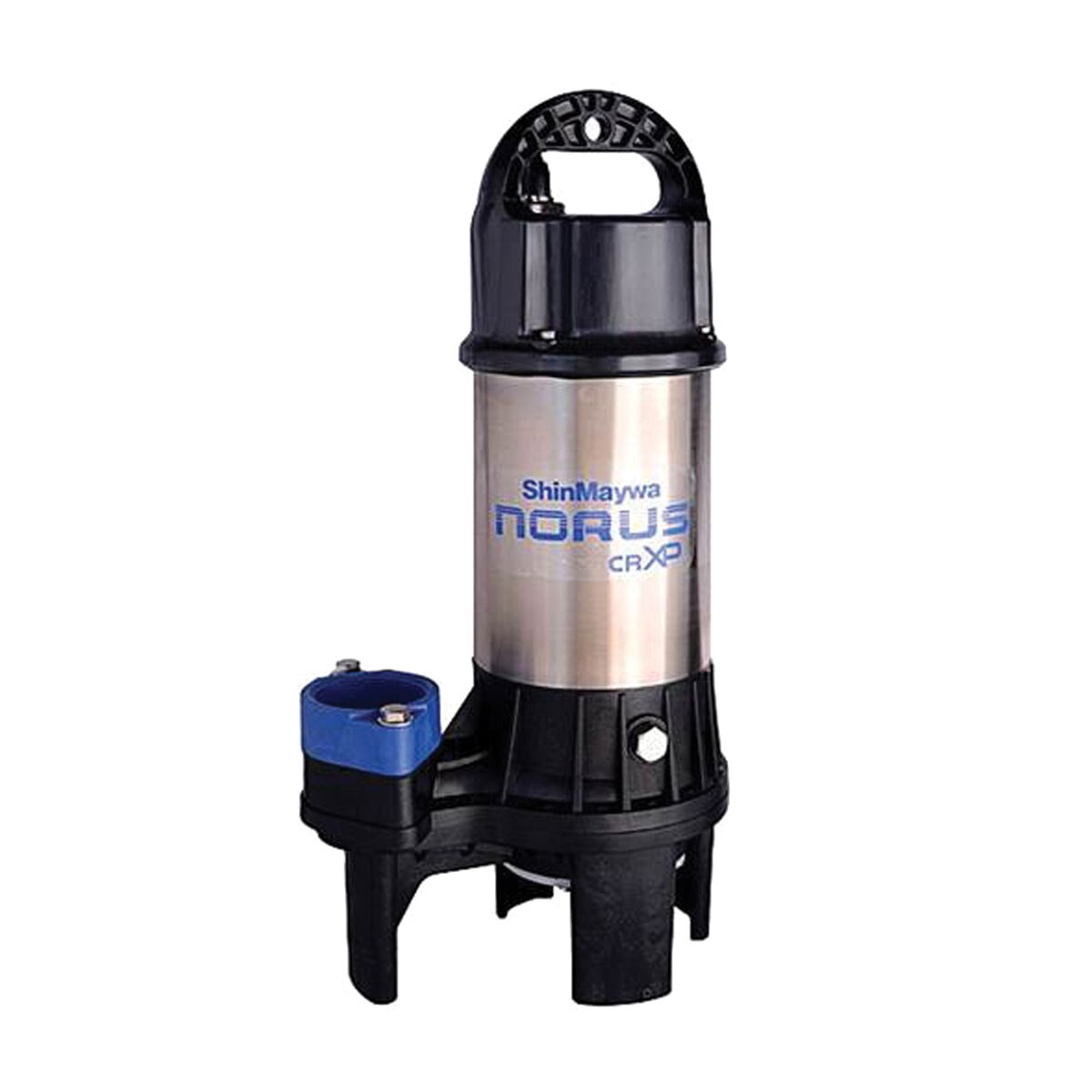

Shinmaywa 1 HP (11,000 GPH / 183 GPM) Manual Effluent Pump
SKU: SHI-1XS
Shinmaywa 1 HP Manual Effluent Pump (11,000 GPH / 183 GPM)
The ShinMaywa Norus submersible pump is one of the most reliable and durable pumps sold in today's watergarden market. Because this pump is so durable and can handle 1 1/4" solids, this pump can also be used in an effluent application.
The outside of the Norus series pumps has a unique hardware design made of fiberglass in addition to its cast aluminum bearing housing, which provides superior heat dissipation and structural integrity in comparison to competing pumps. The Norus series is corrosion resistant due to the 304 stainless steel and poly amide fiber reinforced resin body. It has a stainless steel shaft and poly amide fiber reinforced resin impeller.
ShinMaywa Norus submersible pumps are made for continuous duty. All models are 115 volt, ultra long lifespan, have low operating cost and reliability make the Norus series from ShinMaywa the best buy on the market.
This 1 HP pump has a maximum flow of 1100 GPH/183 GPM and a maximum head of 32' (13 PSI).
2” FIPT discharge, 33’ power cord, 115v.
- 1 HP, 115v high efficiency motor with thermal overload
- Dual Mechanical Shaft Seals
- 2” Discharge
- Handles 1 1/4” solids
- Designed for continuous duty
- Anti-wicking cable entry
- Designed and built in Japan
- Corrosion Resistant
- 2 year Warranty
- Horsepower: 1
- Flow (GPM): 175 GPM @ 5? Head
- Flow (GPH): 10500 GPH @ 5? Head
- Shut Off: 32?
- Power Cord: 33?
- Voltage: 115v
- Phase: 1
- Hertz: 60
- Amps 11
- Discharge 2?
| Model | Item # | HP | Volts | Amps | Disch. | Solids | GPH Flow @ Feet of Head | Shut-Off | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5' | 10' | 15' | 20' | 25' | 30' | 35' | 40' | |||||||||
| 50CR2.15S | SHI/02S | 1/5 | 115 | 3.0 | 2" | 1-1/4" | GPM | 45 | 30 | 15 | - | - | - | - | - | 19' |
| GPH | 2700 | 1800 | 900 | - | - | - | - | - | ||||||||
| 50CR2.25S | SHI/03S | 1/3 | 115 | 4.4 | 2" | 1-1/4" | GPM | 66 | 50 | 35 | 22 | 13 | - | - | - | 28' |
| GPH | 3960 | 3000 | 2100 | 1320 | 780 | - | - | - | ||||||||
| 50CR2.4S | SHI/05S | 1/2 | 115 | 5.5 | 2" | 1-1/4" | GPM | 87 | 71 | 58 | 42 | 30 | 18 | - | - | 36' |
| GPH | 5220 | 4260 | 3480 | 2520 | 1800 | 1080 | - | - | ||||||||
| 50CR2.75S | SHI/10S | 1 | 115 | 10 | 2" | 1-1/4" | GPM | 112 | 100 | 88 | 80 | 68 | 53 | 38 | 25 | 48' |
| GPH | 6720 | 6000 | 5280 | 4800 | 4080 | 3180 | 2280 | 1500 | ||||||||
| 50CRXP2.75S | SHI/1XS | 1 | 115 | 11 | 2" | 1-1/4" | GPM | 170 | 150 | 120 | 95 | 63 | 36 | - | - | 34' |
| GPH | 10200 | 9000 | 7200 | 5700 | 3780 | 2160 | - | - | ||||||||
