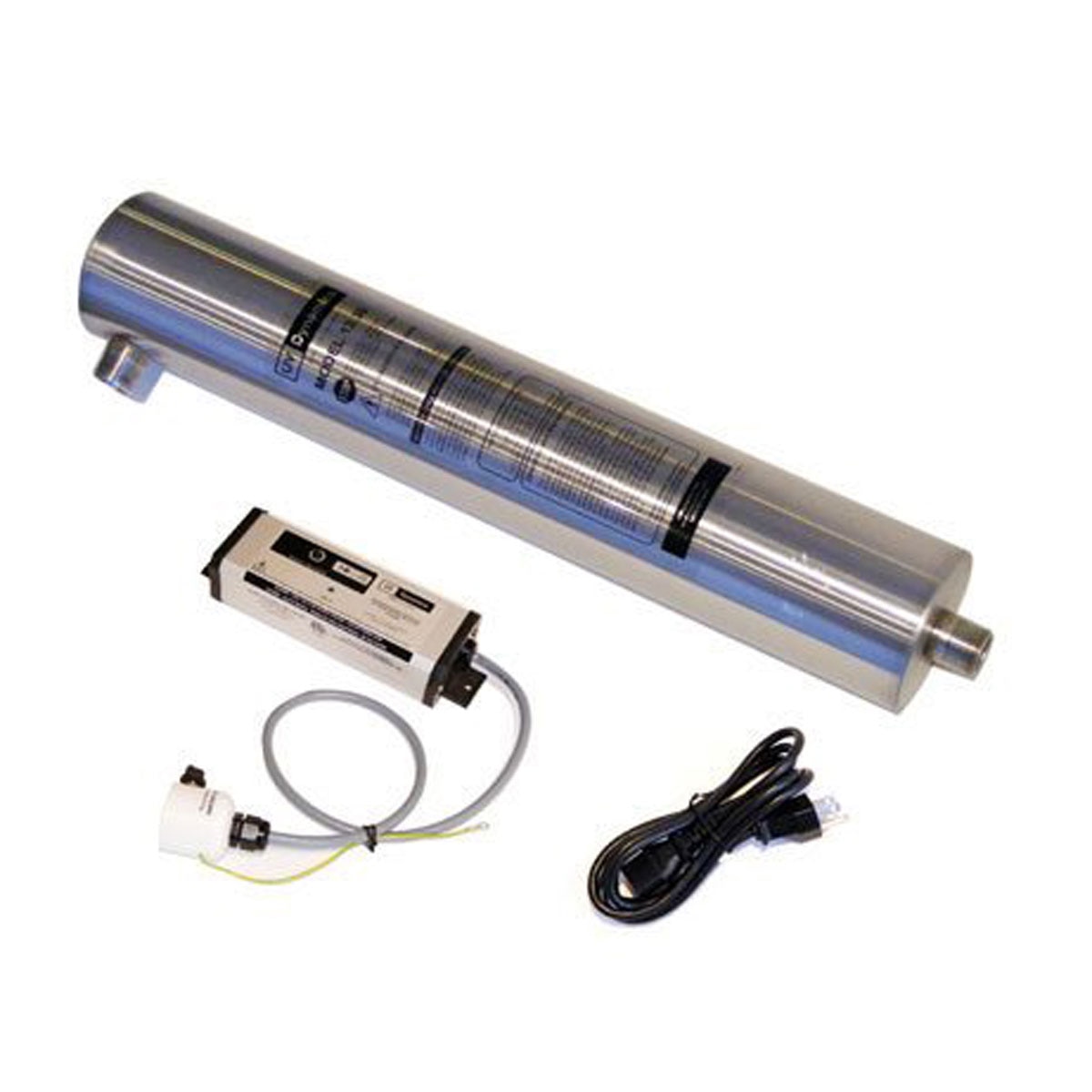

UV Dynamics 10 GPM UVD320E 3/4" MIPT

SKU: UVD-320E
(0) No Reviews yet
$597.79

In Stock

UV Dynamics 10 GPM UVD320E 3/4" MIPT


The UV Dynamics model UVD320E is applicable to point of entry applications in today's homes and cottages. The model UVD320E has basic visual and audio alarm indicators and is ideal for general disinfection applications. The compact mounting footprint of the UV Dynamics model UVD320E facilitates installation where space is limited.


The UV Dynamics model UVD320E was designed using sophisticated computer modeling software and then verified by independent third party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.


The microprocessor controlled UV power source is designed for long life and includes both visual and audio lamp failure alarms as well as an annual lamp change timer.


Recommended:
  • UVD/P400467 - Surge Protector. A Surge Protector helps protect your UV power supply from frequent power outages, surges, brown out conditions or electrical storm activity. Recommended for use with all UV Dynamics installations.
  • VA/D10 - 10 GPM Flow Control. Flow controls are used to maintain a defined flow rate regardless of pressure variations of the supply line.



An Eco Fee has been applied to this product. For more info, visit the Light Recycle info page.
PRODUCT FEATURES


  • Flow rate of 10gpm (37L/min) delivers UV dose of 30mj/cm2
  • Flow rate of 8gpm (30L/min) delivers UV dose of 40mj/cm2
  • Passivated and polished 304 stainless steel reactor measuring 3.5" x 18"
  • 9000hr long life coated UV lamp
  • Microprocessor controlled UV power source with audible and visible lamp failure alarms
  • Annual lamp change reminder timer
  • Lamp life remaining feature
  • 3/4" MNPT fittings
  • Domed quartz sleeve to simplify servicing
  • No tools required for regular servicing
  • Easy-service lamp connector
  • APPLICATION GUIDELINES


  • A Minimum 5 micron pre-filter required.
  • Indoor use only - Select a mounting location for UV power source to protect it from condensation from the disinfection chamber and system piping.
  • Clean the quartz sleeve regularly

  • Water must meet the following minimum requirements for trouble free operation


  • Turbidity:< 1 NTU
  • Suspended Solids:< 10mg/L
  • Colour: None
  • Total Iron:< 0.3 mg/L
  • Manganese:< 0.05 mg/L
  • Hardness:< 7 gpg
  • UVT%: > 80%
  • UV Dynamics UVD-320E Parts

    Diag. No.Item No.Description
    UVD-RL400152
    UV Dynamics UV Lamp (UVD 240, 320, 320E)
    UVD-QS400151
    UV Dynamics Quartz Sleeve (UVD 240, 320, 320E)
    UVD-P400235
    UV Dynamics Ballast (UVD 180, 245, 320E) MF-SLE120
    UVD-P400202
    UV Dynamics O-Ring Set A (180, 240, 320, 320E, 400, 400E, 8.40C)
    UVD-P400111
    UV Dynamics Lamp Spring (All Units)
