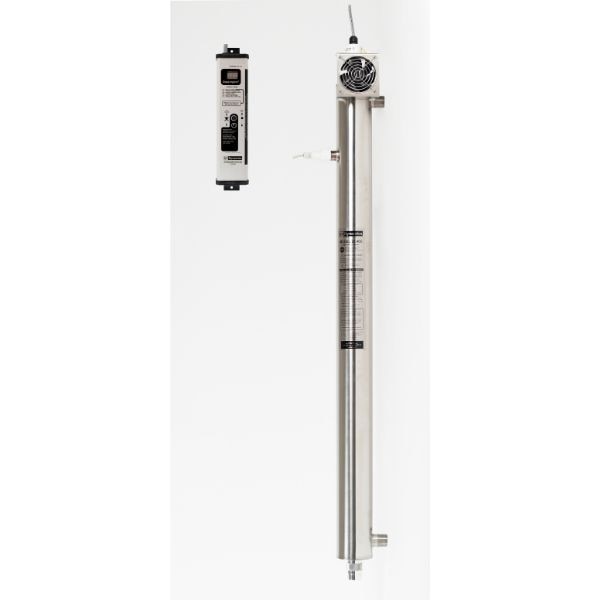

UV Dynamics 20.2 GPM NSF 20.40C, 1" MIPT x 1" MIPT

SKU: UVD-2040C
(0) No Reviews yet
$2,225.00

In Stock

UV Dynamics 20.2 GPM NSF 20.40C
1" MIPT x 1" MIPT


This Class A system conforms to NSF/ANSI 55 for the disinfection of microbiologically contaminated water that meets all other public health standards. The system is not intended to convert wastewater or raw sewage to drinking water. The system is intended to be installed on visually clear water.


NSF/ANSI 55 defines wastewater to include human and/or animal body waste, toilet paper, and any other material intended to be deposited in a receptacle designed to receive urine and/or feces (blackwaste); and other waste materials deposited in plumbing fixtures (grey waste).


If this system is used for treatment of untreated surface waters or ground water under the direct influence of surface water, a device found to be in conformance for cyst reduction under the appropriate NSF/ANSI standard shall be in stalled upstream of the system.


Recommended:
  • UVD-P400467 - Surge Protector. A Surge Protector helps protect your UV power supply from frequent power outages, surges, brown out conditions or electrical storm activity. Recommended for use with all UV Dynamics installations.
  • VA-D20 - 20 GPM Flow Control. Flow controls are used to maintain a defined flow rate regardless of pressure variations of the supply line.



An Eco Fee has been applied to this product. For more info, visit the Light Recycle info page.
PRODUCT FEATURES


  • NSF/ANSI 55 Class "A" Certified Series
  • Flow rate of 20gpm (75L/min) delivers UV dose of 40mj/cm2
  • Passivated and polished 304 stainless steel reactor chamber measuring 3.5" x 50.5"
  • 9000hr long life coated UV lamp
  • Microprocessor controlled UV power source with audible and visible lamp failure alarms and two digit display
  • True Lamp Current closed loop current control
  • Annual lamp change reminder timer
  • Lamp life remaining feature
  • 1" MNPT inlet, 1" MNPT outlet
  • Dynamic flow regulator
  • Cold Spot Fan
  • No tools required for regular servicing
  • Easy-service lamp connector
  • Optional solenoid valve
  • APPLICATION GUIDELINES


  • A Minimum 5 micron pre-filter required.
  • Indoor use only - Select a mounting location for UV power source to protect it from condensation from the disinfection chamber and system piping.
  • Clean the quartz sleeve regularly

  • Water must meet the following minimum requirements for trouble free operation


  • Turbidity:< 1 NTU
  • Suspended Solids:< 10mg/L
  • Colour: None
  • Total Iron:< 0.3 mg/L
  • Manganese:< 0.05 mg/L
  • Hardness:< 7 gpg
  • UVT%: > 80%
  • UV Dynamics UVD-2040C Parts

    Diag. No.Item No.Description
    UVD-RL400271
    UV Dynamics UV Lamp (UVD 1200, NSF 20.40C)
    UVD-QS400275
    UV Dynamics Quartz Sleeve (UVD1200, NSF 20.40C)
    UVD-P400250
    UV Dynamics Ballast (UVD NSF 20.40C) MF-LLG120/S
    UVD-P400285
    UV Dynamics Sensor Probe (All NSF Units)
    Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times.
