UV Dynamics 20 GPM UVD600 1" MIPT

SKU: UVD-600
(0) No Reviews yet
$946.84

In Stock

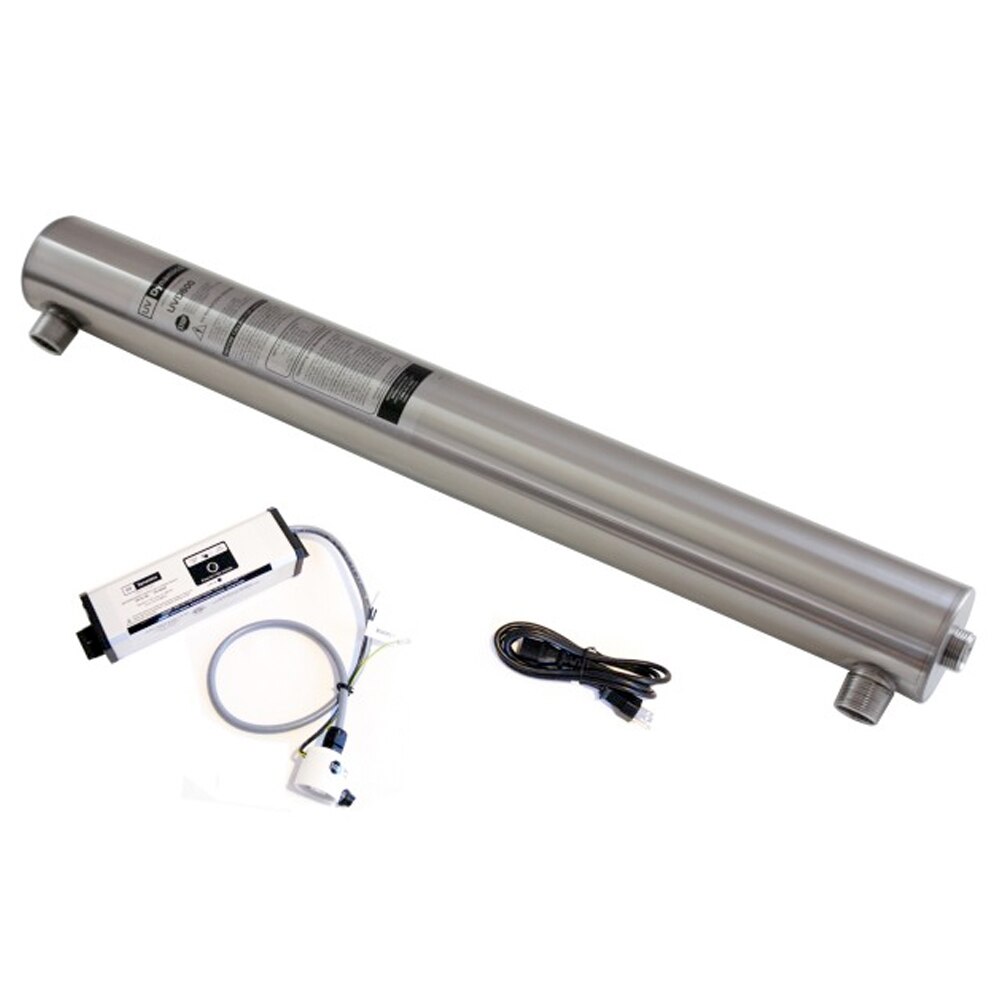

UV Dynamics 20 GPM UVD600 1" MIPT


The UV Dynamics model UVD600 is applicable for higher flow whole house, point of entry applications in today's larger homes or smaller commercial / industrial applications. Ultraviolet (UV) water disinfection protects against waterborne micro-organisms and is effective against Giardia and Cryptosporidium without the use of chemicals.


The UV Dynamics model UVD600 was designed using sophisticated computer modeling software and then verified by independent third party testing using acceptedbiodosimetry methods by GAP EnviroMicrobial Services.


The microprocessor controlled UV power source is designed for long life and includes both visual and audio lamp failure alarms as well as an annual lamp change timer. Included is an isolated low voltage solenoid drive output. Our optional solenoid valves simply plug into the unit and require no additional interface cables or transformers to complete the solenoid safety shut off feature.


Recommended:


  • UVD/P400467 - Surge Protector. A Surge Protector helps protect your UV power supply from frequent power outages, surges, brown out conditions or electrical storm activity. Recommended for use with all UV Dynamics installations.
  • VA/D20 - 20 GPM Flow Control. Flow controls are used to maintain a defined flow rate regardless of pressure variations of the supply line.


  • An Eco Fee has been applied to this product. For more info, visit the Light Recycle info page.
    PRODUCT FEATURES


  • Flow rate of 20gpm (75L/min) delivers UV dose of 30mj/cm2
  • Flow rate of 15gpm (57L/min) delivers UV dose of 40mj/cm2
  • Passivated and polished 304 stainless steel reactor measuring 3.5" x 37"
  • 9000hr long life coated UV lamp
  • Microprocessor controlled UV power source with audible and visible lamp failure alarms
  • True Lamp Current closed loop current control
  • Annual lamp change reminder timer
  • Lamp life remaining feature
  • 1" MNPT fittings
  • No tools required for regular servicing
  • Easy-service lamp connector
  • Optional solenoid valve
  • Optional UV monitor system
  • APPLICATION GUIDELINES


  • A Minimum 5 micron pre-filter required.
  • Indoor use only - Select a mounting location for UV power source to protect it from condensation from the disinfection chamber and system piping.
  • Clean the quartz sleeve regularly

  • Water must meet the following minimum requirements for trouble free operation


  • Turbidity:< 1 NTU
  • Suspended Solids:< 10mg/L
  • Colour: None
  • Total Iron:< 0.3 mg/L
  • Manganese:< 0.05 mg/L
  • Hardness:< 7 gpg
  • UVT%: > 80%
  • UV Dynamics UVD-600 Parts

    Diag. No.Item No.Description
    UVD-RL400158
    UV Dynamics UV Lamp (UVD 600, 800, 1000, NSF 14.40C)
    UVD-QS400157
    UV Dynamics Quartz Sleeve (UVD 600, 800, 1000)
    UVD-P400156
    UV Dynamics Ballast (UVD 400, 485, 600) MF-LL120
    UVD-P400111
    UV Dynamics Lamp Spring (All Units)
    Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times.
