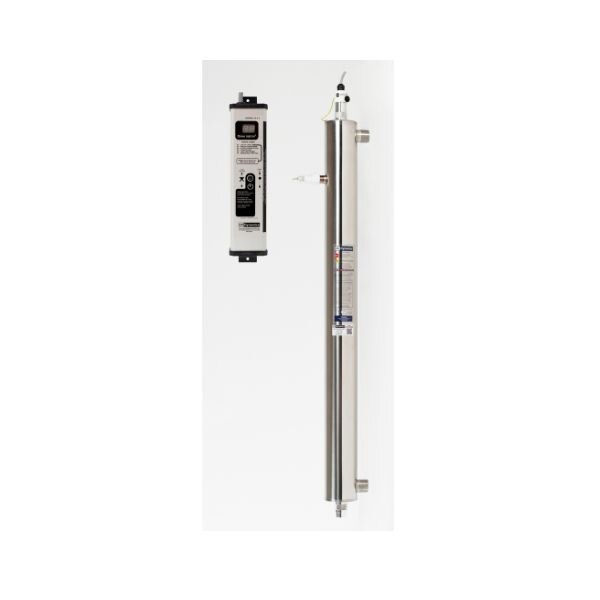

UV Dynamics 30gpm to 40gpm UV Disinfection System with Sensor 1" MIPT
SKU: UVD-1200S
UV Dynamics 30gpm to 40gpm UV Disinfection System with Sensor 1" MIPT
The UVD1200/S system is suited to point of entry installation in commercial and industrial applications. The 40mj/cm2 dose of the UVD1200/S at 30gpm is ideal for general disinfection. Available solenoid option allows for customization for OEM utilizations. The UVD1200/S system was designed using sophisticated computer modeling software and then verified by independent third-party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.
Recommended:
- Surge Protector. A Surge Protector helps protect your UV power supply from frequent power outages, surges, brown out conditions or electrical storm activity. Recommended for use with all UV Dynamics installations.
An Eco Fee has been applied to this product. For more info, visit the Light Recycle info page
Features -
- Flow rate of 40gpm (151L/min) delivers UV dose of 30mj/cm2
- Flow rate of 30gpm (113L/min) delivers UV dose of 40mj/cm2
- Easy-service lamp connector simplifies maintenance - no tools required.
- Microprocessor controlled power source includes audible and visible lamp failure alarms, lamp life remaining feature, and annual lamp change timer.
- UV lamps are USA manufactured with a long-life coating, rated for 9,000hrs
- Reactor chambers are welded in Canada using 304 stainless steel.
- Power sources and chambers are designed and manufactured in Canada.
- 24-hour alarm override option available.
- Includes optional solenoid valve output.
- Inlet/Outlet Port Size - 1” MNPT
- Max Operating Pressure - 100psi (6.9bar)
- Water Temperature - 4 - 37°C (40-99°F)
- Power Consumption - 117 watts
- AC Supply Voltage - 120V or 240V (47-63Hz)
- Chamber Dimensions - 50.5” (128cm) x 3.5” (8.89cm)
- UV Dynamics number - UVD1200/S, 400389
Guidelines -
- A Minimum 5 micron pre-filter required.
- Indoor use only - Select a mounting location for UV power source to protect it from condensation from the disinfection chamber and system piping.
- Clean the quartz sleeve regularly
- Install a Surge Protector as UV dynamics voids warranty when installed without a surge protector
Water must meet the following minimum requirements for trouble free operation -
- Turbidity: < 1 NTU
- Suspended Solids: < 10mg/L
- Colour: None
- Total Iron: < 0.3 mg/L
- Manganese: < 0.05 mg/L
- Hardness: < 7 gpg
- UVT%: > 80%
Certified by IAPMO R&T against -
- NSF/ANSI 61 (materials safety only)
- NSF/ANSI 372 (lead free compliance)
- CSA-B483.1
UV Dynamics UVD-1200 Parts
Diag. No. | Item No. | Description |
---|---|---|
UVD-RL400271 | UV Dynamics UV Lamp (UVD 1200, NSF 20.40C) | |
UVD-QS400275 | UV Dynamics Quartz Sleeve (UVD1200, NSF 20.40C) | |
UVD-P400357 | UV Dynamics Ballast (UVD 800/S, 1000/S, 1200/S & 1500/S) | |
UVD-P400354 | UV Dynamics Lamp Spring 16cm | |
UVD-P400205 | UV Dynamics O-Ring (Set B) | |
UVD-P400103 | UV Dynamics Top Glandnut (for Standard UVD Units) | |
Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. |
