UV Dynamics 37gpm to 50gpm UV Disinfection System 1 1/4" MIPT
UV Dynamics 37gpm to 50gpm UV Disinfection System 1 1/4" MIPT

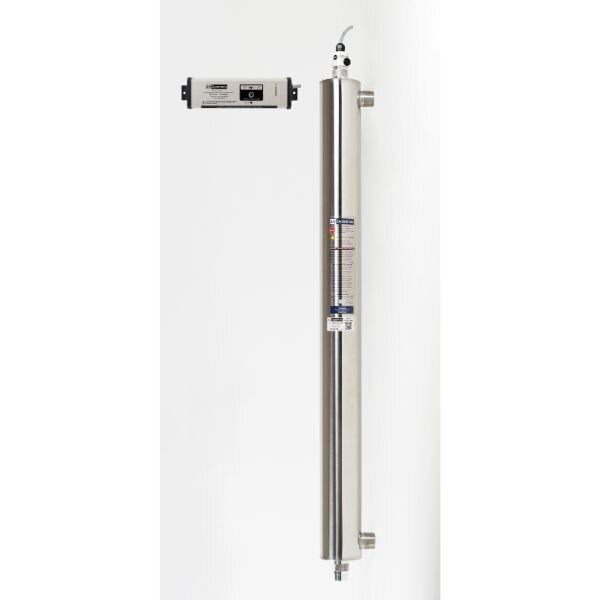

The UV Dynamics model UVD1500 is applicable for general disinfection in smaller commercial / industrial applications. Ultraviolet (UV) water disinfection protects against waterborne micro-organisms and is effective against Giardia and Cryptosporidium without the use of chemicals.
The UV Dynamics model UVD1500 was designed using sophisticated computer modeling software and then verified by independent third party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.
The microprocessor controlled UV power source is designed for long life and includes both visual and audio lamp failure alarms as well as an annual lamp change timer. Included is an isolated low voltage solenoid drive output. Our optional solenoid valves simply plug into the unit and require no additional interface cables or transformers to complete the solenoid safety shut off feature.
Recommended:
- Surge Protector. A Surge Protector helps protect your UV power supply from frequent power outages, surges, brown out conditions or electrical storm activity. Recommended for use with all UV Dynamics installations.
Features –
- Flow rate of 50gpm (189L/min) delivers UV dose of 30mj/cm2
- Flow rate of 37gpm (140L/min) delivers UV dose of 40mj/cm2
- Passivated and polished 304 stainless steel reactor measuring 4” x 50.5”
- 9000hr long life coated UV lamp
- Microprocessor controlled UV power source with audible and visible lamp failure alarms
- True Lamp Current closed loop current control
- Annual lamp change reminder timer
- Lamp life remaining feature
- 1 1/4” MNPT fittings
- No tools required for regular servicing
- Easy-service lamp connector
- UV Dynamics number - UVD1500, UVD1500.120LLG, 400424
Guidelines -
- A Minimum 5 micron pre-filter required.
- Indoor use only - Select a mounting location for UV power source to protect it from condensation from the disinfection chamber and system piping.
- Clean the quartz sleeve regularly
- Install a Surge Protector as UV dynamics voids warranty when installed without a surge protector
Water must meet the following minimum requirements for trouble free operation -
- Turbidity: < 1 NTU
- Suspended Solids: < 10mg/L
- Color: None
- Total Iron: < 0.3 mg/L
- Manganese: < 0.05 mg/L
- Hardness: < 7 gpg
- UVT%: > 80%
Certified by IAPMO R&T against -
- NSF/ANSI 61 (materials safety only)
- NSF/ANSI 372 (lead free compliance)
- CSA-B483.1
UV Dynamics UVD-1500 Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| UVD-RL400271 | UV Dynamics UV Lamp (UVD 1200, NSF 20.40C) | |
| UVD-QS400275 | UV Dynamics Quartz Sleeve (UVD1200, NSF 20.40C) | |
| UVD-RL400233 | UV Dynamics Ballast (UVD 800, 1000, 1200 & 1500) | |
| UVD-P400354 | UV Dynamics Lamp Spring 16cm | |
| UVD-P400205 | UV Dynamics O-Ring (Set B) | |
| UVD-P400103 | UV Dynamics Top Glandnut (for Standard UVD Units) | |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
